Sicherungsringe

DIN 471 AISI 420

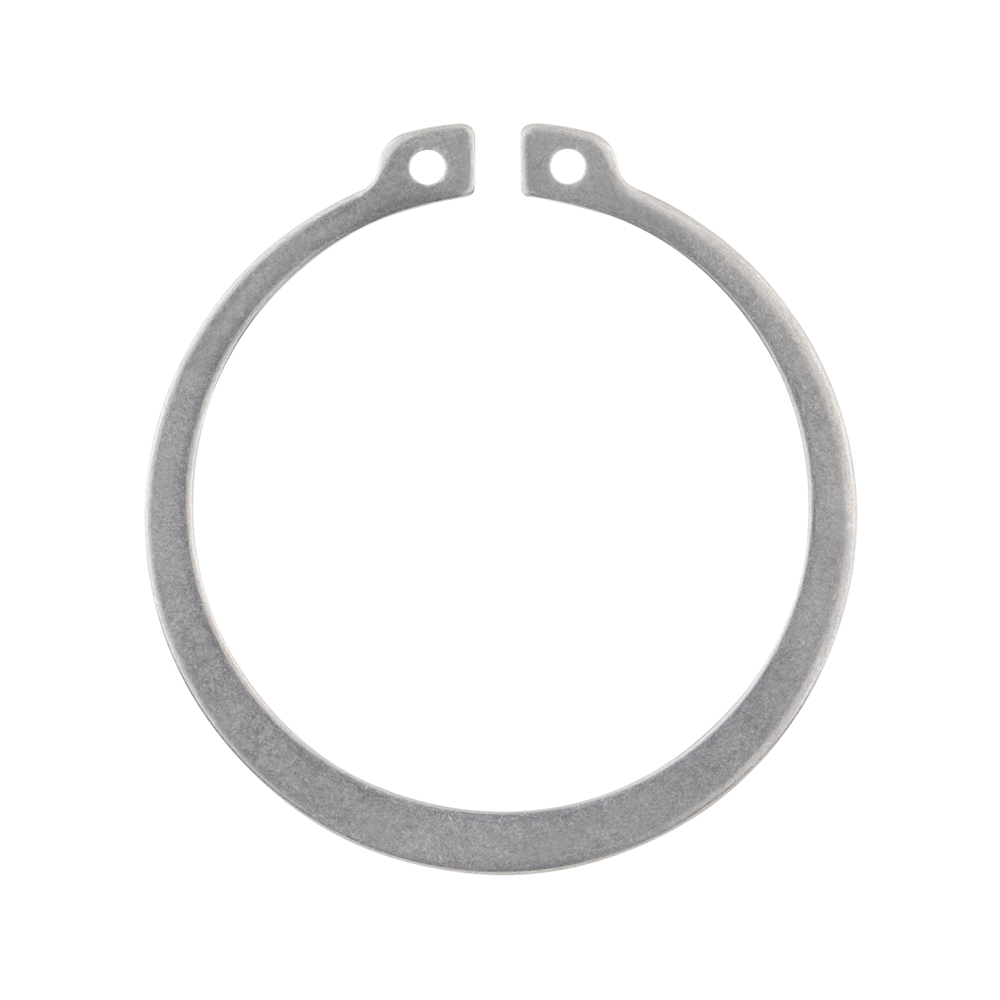

Edelstahl AISI 420 sicherungsring für wellen

Ref.: 6927500
Elastischer Wellenring aus rostfreiem Stahl AISI 420. Seine offene Ringkonstruktion erleichtert die Montage und Demontage. Er wird zur Sicherung von Teilen auf axial montierten Wellen verwendet.
Abmessung Code Stck. Box KG ESTUCHE STK. Master KG MÁSTER Uds. Palé kg_pallet EAN-Schachtel Gewicht (Ud/Kg) Technische Info.
E-4 6927500E-004 200 0 100.000 0 - 8432569760811 1
  • M4
  • M('')4
  • a2,2
  • b0,9
  • d33,7
  • S0,4
  • Ø4
E-5 6927500E-005 200 0 100.000 0 - 8432569760828 0.0001
  • M5
  • M('')5
  • a2,5
  • b1,1
  • d34,7
  • S0,6
  • Ø5
E-6 6927500E-006 200 0 100.000 0 - 8432569760835 0.0001
  • M6
  • M('')6
  • a2,7
  • b1,3
  • d35,6
  • S0,7
  • Ø6
E-7 6927500E-007 200 0 75.000 0 - 8432569760842 0.0001
  • M7
  • M('')7
  • a3,1
  • b1,4
  • d36,5
  • S0,8
  • Ø7
E-8 6927500E-008 200 0 50.000 0 - 8432569760859 0.0001
  • M8
  • M('')8
  • a3,2
  • b1,5
  • d37,4
  • S0,8
  • Ø8
E-9 6927500E-009 200 0 50.000 0 - 8432569760866 0.0003
  • M9
  • M('')9
  • a3,3
  • b1,7
  • d38,4
  • S1
  • Ø9
E-10 6927500E-010 200 0 40.000 0 - 8432569760873 0.0003
  • M10
  • M('')10
  • a3,3
  • b1,8
  • d39,3
  • S1
  • Ø10
E-11 6927500E-011 100 0 30.000 0 - 8432569760880 0.0004
  • M11
  • M('')11
  • a3,3
  • b1,8
  • d310,2
  • S1
  • Ø11
E-12 6927500E-012 100 0 25.000 0 - 8432569760897 0.0005
  • M12
  • M('')12
  • a3,3
  • b1,8
  • d311
  • S1
  • Ø12
E-13 6927500E-013 100 0 20.000 0 - 8432569760903 0.0005
  • M13
  • M('')13
  • a3,4
  • b2
  • d311,9
  • S1
  • Ø13
E-14 6927500E-014 100 0 20.000 0 - 8432569760910 0.0006
  • M14
  • M('')14
  • a3,5
  • b2,1
  • d312,9
  • S1
  • Ø14
E-15 6927500E-015 100 0 20.000 0 - 8432569760927 0.0007
  • M15
  • M('')15
  • a3,6
  • b2,2
  • d313,8
  • S1
  • Ø15
E-16 6927500E-016 100 0 15.000 0 - 8432569760934 0.0007
  • M16
  • M('')16
  • a3,7
  • b2,2
  • d314,7
  • S1
  • Ø16
E-17 6927500E-017 100 0 15.000 0 - 8432569760941 0.0008
  • M17
  • M('')17
  • a3,8
  • b2,3
  • d315,7
  • S1
  • Ø17
E-18 6927500E-018 100 0 12.000 0 - 8432569760958 0.0011
  • M18
  • M('')18
  • a3,9
  • b2,4
  • d316,5
  • S1,2
  • Ø18
E-19 6927500E-019 100 0 10.000 0 - 8432569760965 0.0012
  • M19
  • M('')19
  • a3,9
  • b2,5
  • d317,5
  • S1,2
  • Ø19
E-20 6927500E-020 100 0 10.000 0 - 8432569760972 0.0013
  • M20
  • M('')20
  • a4
  • b2,6
  • d318,5
  • S1,2
  • Ø20
E-21 6927500E-021 50 0 8.000 0 - 8432569760989 0.0014
  • M21
  • M('')21
  • a4,1
  • b2,7
  • d319,5
  • S1,2
  • Ø21
E-22 6927500E-022 50 0 8.000 0 - 8432569760996 0.0015
  • M22
  • M('')22
  • a4,2
  • b2,8
  • d320,5
  • S1,2
  • Ø22
E-23 6927500E-023 50 0 7.000 0 - 8432569761009 0.0016
  • M23
  • M('')23
  • a4,3
  • b2,9
  • d321,5
  • S1,2
  • Ø23
E-24 6927500E-024 50 0 7.000 0 - 8432569761016 0.0017
  • M24
  • M('')24
  • a4,4
  • b3
  • d322,2
  • S1,2
  • Ø24
E-25 6927500E-025 50 0 6.400 0 - 8432569761023 0.0019
  • M25
  • M('')25
  • a4,4
  • b3
  • d323,2
  • S1,2
  • Ø25
E-26 6927500E-026 50 0 5.000 0 - 8432569761030 0.0019
  • M26
  • M('')26
  • a4,5
  • b3,1
  • d324,2
  • S1,2
  • Ø26
E-27 6927500E-027 50 0 4.000 0 - 8432569761047 0.0021
  • M27
  • M('')27
  • a4,6
  • b3,1
  • d324,9
  • S1,2
  • Ø27
E-28 6927500E-028 50 0 4.000 0 - 8432569761054 0.0029
  • M28
  • M('')28
  • a4,7
  • b3,2
  • d325,9
  • S1,5
  • Ø28
E-29 6927500E-029 50 0 3.500 0 - 8432569761061 0.0032
  • M29
  • M('')29
  • a4,8
  • b3,4
  • d326,9
  • S1,5
  • Ø29
E-30 6927500E-030 50 0 3.500 0 - 8432569761078 0.0033
  • M30
  • M('')30
  • a5
  • b3,5
  • d327,9
  • S1,5
  • Ø30
E-32 6927500E-032 25 0 3.000 0 - 8432569761092 0.0035
  • M32
  • M('')32
  • a5,2
  • b3,6
  • d329,6
  • S1,5
  • Ø32
E-34 6927500E-034 25 0 2.500 0 - 8432569761115 0.0038
  • M34
  • M('')34
  • a5,4
  • b3,8
  • d331,5
  • S1,5
  • Ø34
E-35 6927500E-035 25 0 2.000 0 - 8432569761122 0.004
  • M35
  • M('')35
  • a5,6
  • b3,9
  • d332,2
  • S1,5
  • Ø35
E-36 6927500E-036 25 0 2.000 0 - 8432569761139 0.005
  • M36
  • M('')36
  • a5,6
  • b4
  • d333,2
  • S1,75
  • Ø36
E-38 6927500E-038 25 0 2.000 0 - 8432569761153 0.0056
  • M38
  • M('')38
  • a5,8
  • b4,2
  • d335,2
  • S1,75
  • Ø38
E-40 6927500E-040 25 0 1.500 0 - 8432569761177 0.006
  • M40
  • M('')40
  • a6
  • b4,4
  • d336,5
  • S1,75
  • Ø40
E-42 6927500E-042 25 0 1.500 0 - 8432569761191 0.0065
  • M42
  • M('')42
  • a6,5
  • b4,5
  • d338,5
  • S1,75
  • Ø42
E-45 6927500E-045 25 0 1.250 0 - 8432569761214 0.0075
  • M45
  • M('')45
  • a6,7
  • b4,7
  • d341,5
  • S1,75
  • Ø45
E-48 6927500E-048 25 0 1.000 0 - 8432569761245 0.0079
  • M48
  • M('')48
  • a6,9
  • b5
  • d344,5
  • S1,75
  • Ø48
E-50 6927500E-050 25 0 1.000 0 - 8432569761252 0.0102
  • M50
  • M('')50
  • a6,9
  • b5,1
  • d345,8
  • S2
  • Ø50
E-52 6927500E-052 25 0 1.000 0 - 8432569761269 0.0111
  • M52
  • M('')52
  • a7
  • b5,2
  • d347,8
  • S2
  • Ø52
E-55 6927500E-055 25 0 1.000 0 - 8432569761283 0.0114
  • M55
  • M('')55
  • a7,2
  • b5,4
  • d350,8
  • S2
  • Ø55
E-60 6927500E-060 25 0 600 0 - 8432569761320 0.0129
  • M60
  • M('')60
  • a7,4
  • b5,8
  • d355,8
  • S2
  • Ø60
E-65 6927500E-065 25 0 600 0 - 8432569761351 0.0182
  • M65
  • M('')65
  • a7,8
  • b6,3
  • d360,8
  • S2,5
  • Ø65
E-68 6927500E-068 25 0 500 0 - 8432569761375 0.0218
  • M68
  • M('')68
  • a8
  • b6,5
  • d363,5
  • S2,5
  • Ø68
E-70 6927500E-070 25 0 500 0 - 8432569761382 0.022
  • M70
  • M('')70
  • a8,1
  • b6,6
  • d365,5
  • S2,5
  • Ø70
E-75 6927500E-075 25 0 400 0 - 8432569761405 0.0246
  • M75
  • M('')75
  • a8,4
  • b7
  • d370,5
  • S2,5
  • Ø75
E-80 6927500E-080 25 0 400 0 - 8432569761436 0.0273
  • M80
  • M('')80
  • a8,6
  • b7,4
  • d374,5
  • S2,5
  • Ø80
E-85 6927500E-085 10 0 300 0 - 8432569761450 0.0364
  • M85
  • M('')85
  • a8,7
  • b7,8
  • d379,5
  • S3
  • Ø85
E-90 6927500E-090 10 0 250 0 - 8432569761481 0.0445
  • M90
  • M('')90
  • a8,8
  • b8,2
  • d384,5
  • S3
  • Ø90
E-95 6927500E-095 10 0 250 0 - 8432569761504 0.049
  • M95
  • M('')95
  • a9,4
  • b8,6
  • d389,5
  • S3
  • Ø95
E-100 6927500E-100 10 0 250 0 - 8432569761535 0.0537
  • M100
  • M('')100
  • a9,6
  • b9
  • d394,5
  • S3
  • Ø100
E-110 6927500E-110 10 0 250 0 - 8432569761580 0.082
  • M110
  • M('')110
  • a10,1
  • b9,6
  • d3103
  • S4
  • Ø110
E-120 6927500E-120 10 0 150 0 - 8432569761603 0.086
  • M120
  • M('')120
  • a11
  • b10,2
  • d3113
  • S4
  • Ø120
E-130 6927500E-130 10 0 100 0 - 8432569761627 0.1
  • M130
  • M('')130
  • a11,6
  • b10,7
  • d3123
  • S4
  • Ø130
