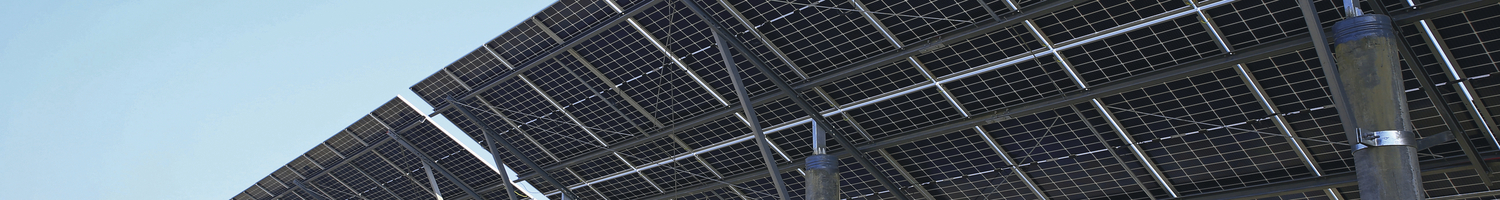

Fasteners for the solar sector: solar panel frames and trackers

When building any kind of photovoltaic structure, it is important to use high-quality components and accessories to ensure top performance and maximum durability. This means that it is key to select the right fasteners to guarantee a robust and long-lasting installation.

At CHAVESBAO, we offer a range of standard carbon steel fasteners for both fixed and moving structures, designed for use by manufacturers of both static frames and solar trackers.

Fasteners for solar panels: frames and trackers

Our range of standard carbon steel structural fasteners, (which covers grades 8, 10, 8.8, 10.9, 12.9, HV 140, HV 160, HV 200 and HV 300) will guarantee that your solar panel structure is robust and durable. We also offer A2 and A4 stainless steel fasteners for attaching the panel to the frame, ensuring resistance to corrosion. The standards used on fixed or moving structures: DIN 931, DIN 933, DIN 6921, EN 15048, DIN 912, DIN 934, DIN 985, DIN 6923, DIN 125, DIN 9021, NFE 25513, DIN 6798-A. In addition to this standard range, we can also support your specific project with bespoke items, either made to drawing or according to other specifications.

En CHAVESBAO disponemos de una amplia selección de tornillería estandarizada para la fabricación de componentes de aerogeneradores o cualquier otro elemento del sector eólico.

Tornillería estandarizada para aerogeneradores y turbinas eólicas

El uso de tornillos estandarizados garantiza la calidad y seguridad de los productos empleados en la fabricación de los componentes dentro del sector eólico. En nuestro catálogo encontrarás una gama de tornillería que se ajusta a las diferentes Normas DIN que hacen referencia a la composición y estructura de cada uno de los productos:

Tornillos hexagonales

Los tornillos hexagonales aptos para la fabricación de aerogeneradores están fabricados según las Normas DIN 931 y DIN 933 que aplican a su estructura. En el primer caso se componen de cabeza hexagonal y cuerpo cilíndrico con media rosca. Además, los tornillos DIN 931 están disponibles en calidad 8.8 y 10.9. Los tornillos hexagonales DIN 933 incluyen también cabeza hexagonal, pero, a diferencia de los primeros, en estos el cuerpo está totalmente roscado.

Tuercas hexagonales

Las tuercas hexagonales para la fabricación de aerogeneradores y turbinas eólicas se ajustan a la Norma DIN 934 que hace referencia a la composición y estructura de las mismas. Este tipo de tuercas son las más comunes en el mercado y en nuestro catálogo podrás encontrar una amplia selección de productos en calidad 8 y calidad 10 -con diferentes grados de resistencia- que se adaptan según el tipo de componente a fabricar.

Arandelas planas

Las arandelas planas se ajustan a las Normas DIN 125 y DIN 9021. Las arandelas planas DIN 125 se utilizan comúnmente en una amplia variedad de aplicaciones. Sin embargo, las arandelas DIN 9021 son más anchas que las anteriores proporcionando una mayor superficie para la distribución de la carga.

read +

PRODUCTS

Other nuts

DIN 6923 A4

EN 1661
Plain washers

DIN 125 A A2

ISO 7089

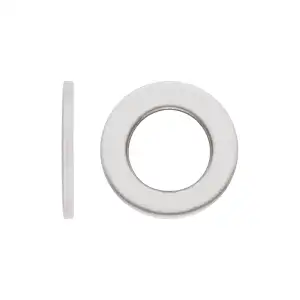

Plain washers

DIN 125 A A4

ISO 7089
Other washers

DIN 6798 A A2
Other washers

DIN 6798 A A4
Socket screws

DIN 912 A2

ISO 4762

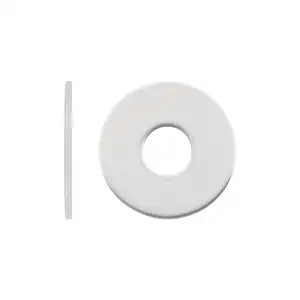

Plain washers

DIN 9021 A2

ISO 7093
Socket screws

DIN 912 A4

ISO 4762
Plain washers

DIN 9021 A4

ISO 7093
Hexagonal screws

DIN 931 A2

ISO 4014
Structural bolts

EN 15048 8.8 HDG – SET 4014+4032
Hexagonal screws

DIN 931 A4

ISO 4014
Structural bolts

EN 15048 8.8 HDG – SET 4017+4032
Hexagonal screws

DIN 933 A2

ISO 4017
Hexagonal screws

DIN 933 A4

ISO 4017
Hexagonal nuts

DIN 934 A2

ISO 4032
Hexagonal nuts

DIN 934 A4

ISO 4032
Self locking nuts

DIN 985 A2

ISO 10511
Self locking nuts

DIN 985 A4

ISO 10511
Other nuts

DIN 6923 A2

EN 1661

Special coatings and custom packaging for the solar sector

The solar sector is dedicated to providing clean, renewable energy and is becoming
increasingly important around the world. Given this growing importance, at CHAVESBAO,
we offer a range of fasteners with special coatings for use on solar panel frames:

· Hot-Dip Galvanised (HDG)

· Zinc-Nickel (Zn-Ni)

· Anti-seize application



To help optimise logistics and handling when installing your solar panel structure, we offer a
comprehensive packaging service including:

Kitting

We can group items according to your needs, thereby keeping parts organised and facilitating easy handling during installation.

Special
labelling

Custom labelling, featuring all the necessary information to ensure that items are identified and used correctly.

Bespoke
packaging

We offer various formats to suit the specific needs of your project, including boxes, pouches, buckets, anti-corrosion bags and wooden crates.
