EN 14399-4 10 HV ZP

High-strength structural nut plain with CE-certified in zinc plated finish

Ref.: 6609301

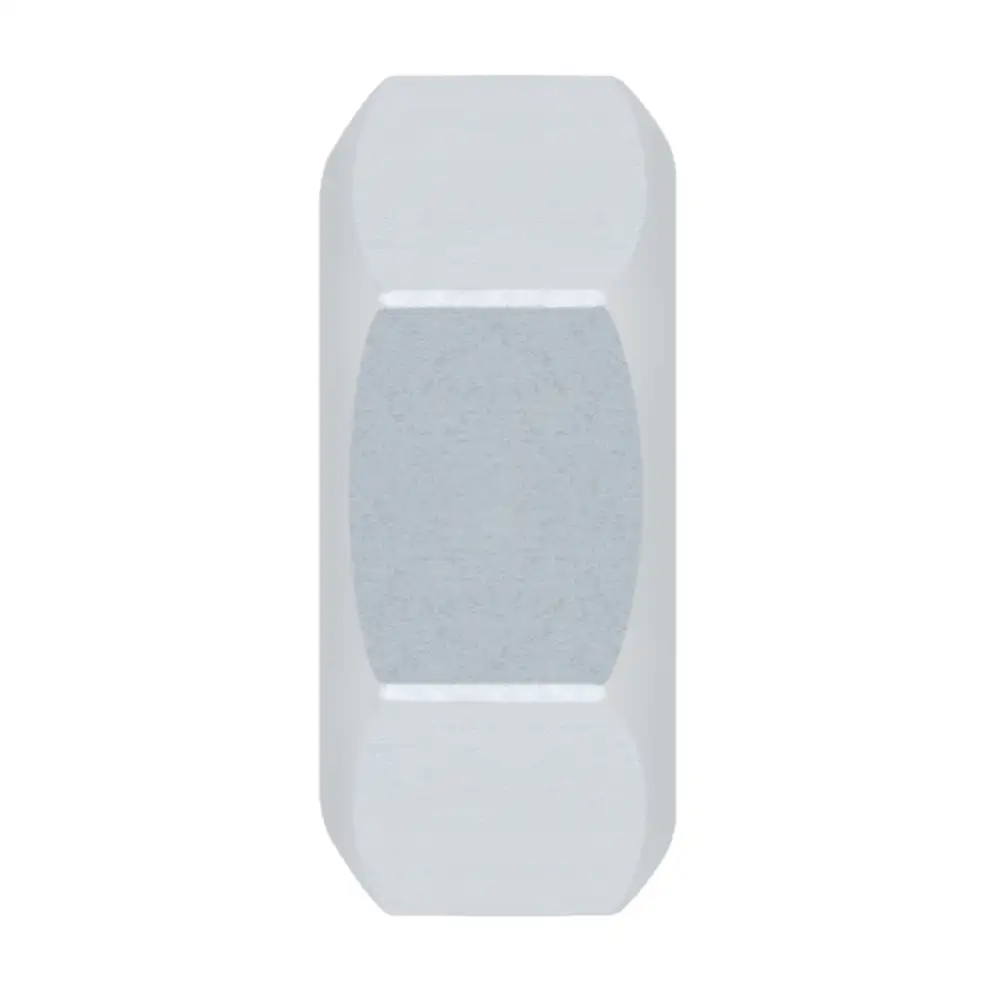

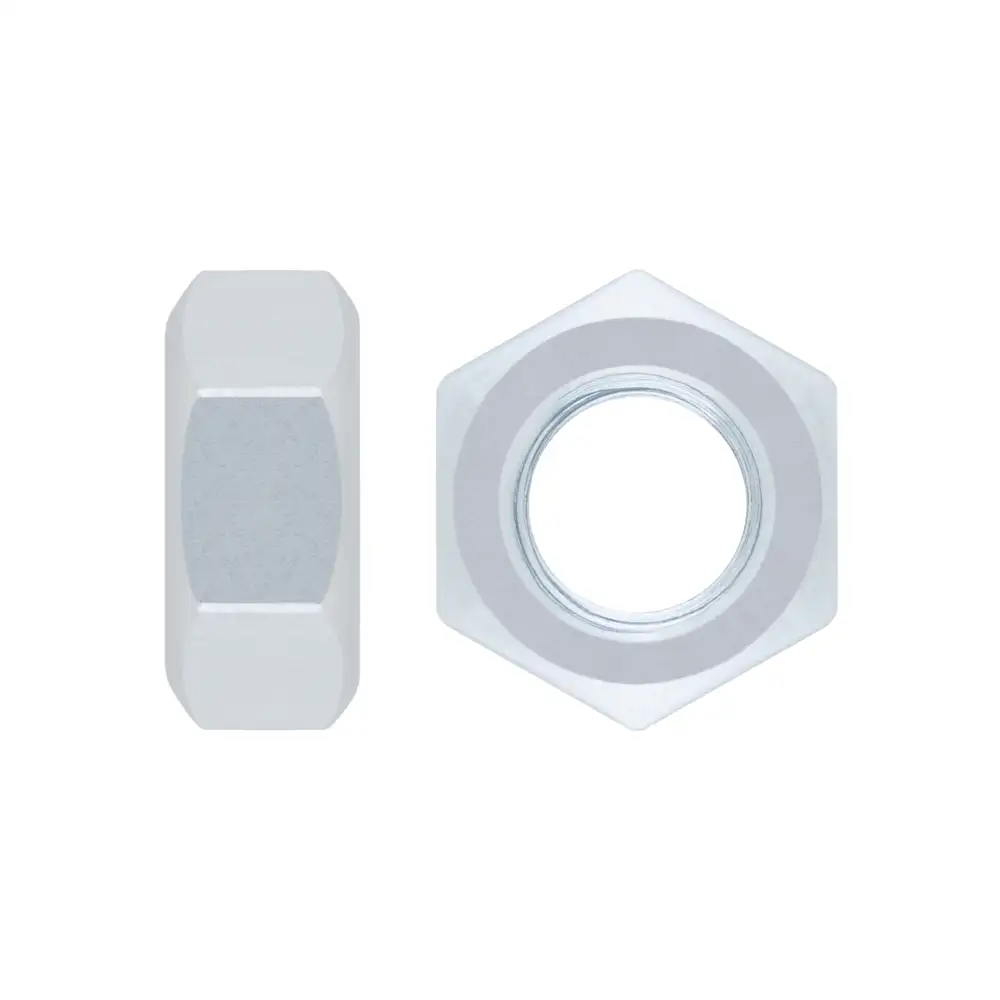

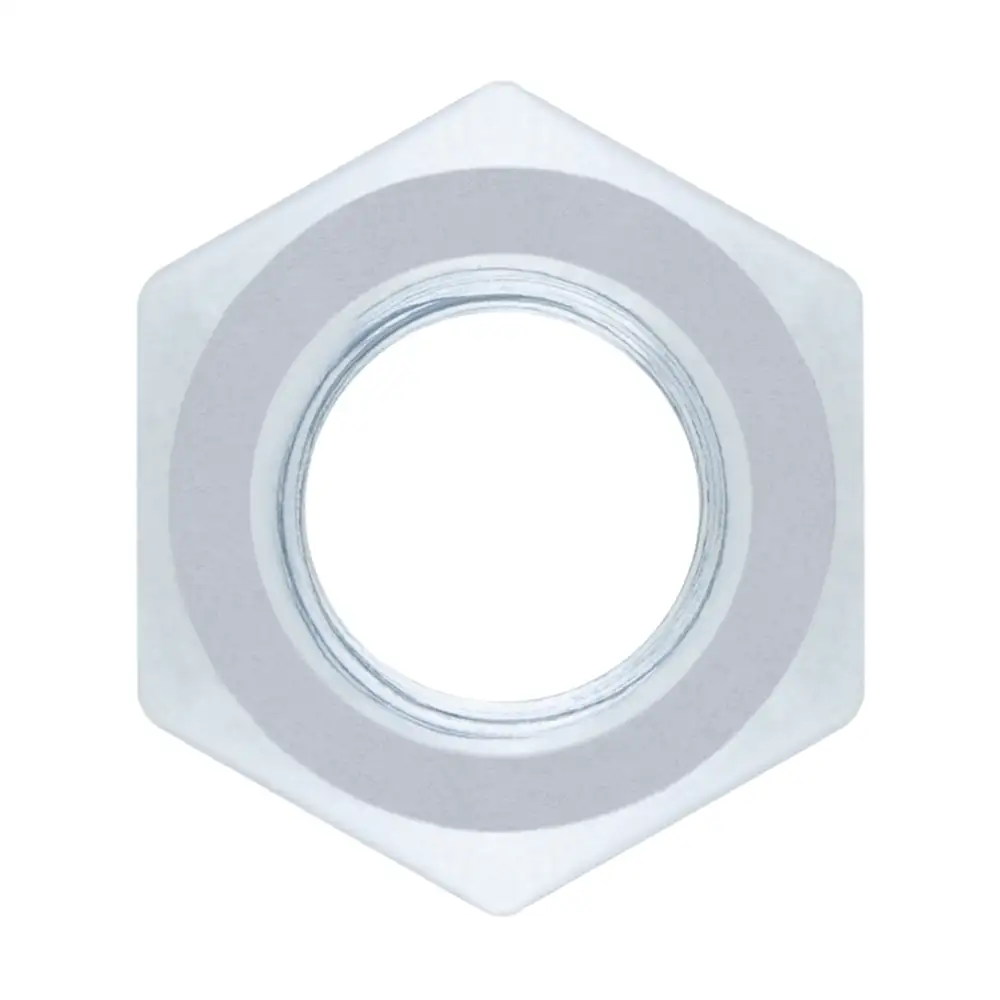

It is a hexagonal nut manufactured in quality 10 and zinc plated. It is used in high-strength pre-loaded structural metal joints in the construction industry.

* In the zinc treatment of material in 10.9 or 10, there is a previous dehidrogenation process to minimize the risk of embrittlement. This notice exonerates CHAVESBAO from all liability for damages that may be caused.

Size	Code	Pcs. Box	KG ESTUCHE	PCS. Master	KG MÁSTER	Uds. Palé	EAN Box	Weight (Pc/Kg)
M12	660930112	200	0	1.200	0	43.200	8432569844078	0.0233
	M12 M('')12 e23,91 m10 S22
M16	660930116	100	0	600	0	21.600	8432569844085	0.0448
	M16 M('')16 e29,56 m13 S27
M20	660930120	50	0	300	0	10.800	8432569844092	0.0739
	M20 M('')20 e35,03 m16 S32
M24	660930124	50	0	200	0	7.200	8432569844115	0.155
	M24 M('')24 e45,2 m20 S41
M27	660930127	25	0	100	0	3.600	8432569844122	0.224
	M27 M('')27 e50,85 m22 S46
M30	660930130	25	0	75	0	2.700	8432569844139	0.3
	M30 M('')30 e55,37 m24 S50
M36	660930136	10	0	40	0	1.440	8432569844146	0.515
	M36 M('')36 e66,44 m29 S60

EN 14399-4 10 HDG

High-strength structural nut plain with CE-certified in hot-dip galvanized finish
