Self locking nuts

DIN 985.10 ZP

ISO 10511

Hexagon self locking nylon nut, in zinc-plated finish and quality 8

Ref.: 6607390
It is a self-locking hexagonal nut with ISO 10511 equivalence, fine pitch, manufactured in quality 10 and zinc plated. Its design incorporates a nylon washer inside, which provides strength to prevent unwanted loosening.


* In the zinc treatment of material in 10.9 or 10, there is a previous dehidrogenation process to minimize the risk of embrittlement. This notice exonerates CHAVESBAO from all liability for damages that may be caused.
Size Code Pcs. Box KG ESTUCHE PCS. Master KG MÁSTER Uds. Palé KG PALÉ EAN Box Weight (Pc/Kg) Technical Info.
M6 660739006 1.000 2.4 8.000 19.2 288.000 691.2 8432569303452 0.0024

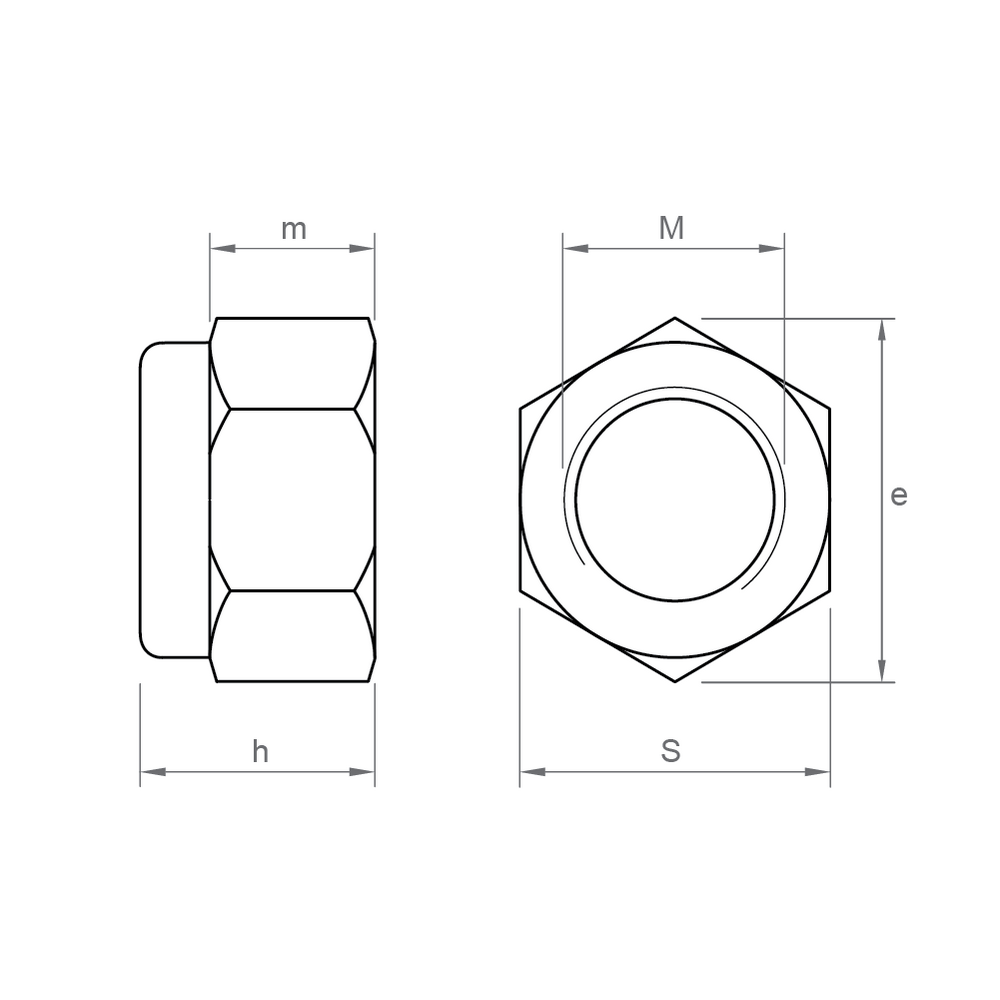

  • M6
  • e11,05
  • m4
  • h8
  • S10
M8 660739008 500 2.55 4.000 20.4 144.000 734.4 8432569303469 0.0051
  • M8
  • e14,38
  • m5,5
  • h9,5
  • S13
M10 660739010 500 5.3 2.000 21.2 72.000 763.2 8432569303476 0.0106
  • M10
  • e18,9
  • m6,5
  • h10
  • S17
M12 660739012 350 6.02 1.400 24.08 50.400 866.88 8432569303483 0.0172
  • M12
  • e21,1
  • m8
  • h12
  • S19
M14 660739014 200 5.2 800 20.8 28.800 748.8 8432569303490 0.026
  • M14
  • e24,49
  • m9,5
  • h14
  • S22
M16 660739016 150 5.1 600 20.4 21.600 734.4 8432569303506 0.034
  • M16
  • e26,75
  • m10,5
  • h16
  • S24
M18 660739018 100 4.5 400 18 14.400 648 8432570093922 0.045
  • M18
  • e29,56
  • m13
  • h18,5
  • S27
M20 660739020 75 4.875 300 19.5 10.800 702 8432569303513 0.065
  • M20
  • e32,95
  • m14
  • h20
  • S30
M22 660739022 60 4.5 240 18 8.640 648 8432569303520 0.075
  • M22
  • e35,03
  • m15
  • h22
  • S32
M24 660739024 40 4 160 16 5.760 576 8432569303537 0.1
  • M24
  • e39,55
  • m15
  • h24
  • S36
M27 660739027 30 4.86 120 19.44 4.320 699.84 8432569303544 0.162
  • M27
  • e45,2
  • m17
  • h27
  • S41
M30 660739030 20 4.24 80 16.96 2.880 610.56 8432569303551 0.212
  • M30
  • e50,85
  • m19
  • h30
  • S46
M33 660739033 15 4.8 60 19.2 2.160 691.2 8432569303568 0.32
  • M33
  • e55,37
  • m22
  • h33
  • S50
M36 660739036 12 4.98 48 19.92 1.728 717.12 8432569303575 0.415
  • M36
  • e60,79
  • m25
  • h36
  • S55
M39 660739039 - 0 40 19.96 1.440 718.56 8432569985511 0.499
  • M39
  • e66,44
  • m27
  • h39
  • S60
M42 660739042 - 0 30 18.84 1.080 678.24 8432569985528 0.628
  • M42
  • e72,09
  • m29
  • h42
  • S65
M45 660739045 - 0 25 19.275 900 693.9 8432570036943 0.771
  • M45
  • e76,95
  • m32
  • h45
  • S70
M48 660739048 - 0 20 15.42 720 555.12 8432570036950 0.771
  • M48
  • e82,6
  • m36
  • h48
  • S75
