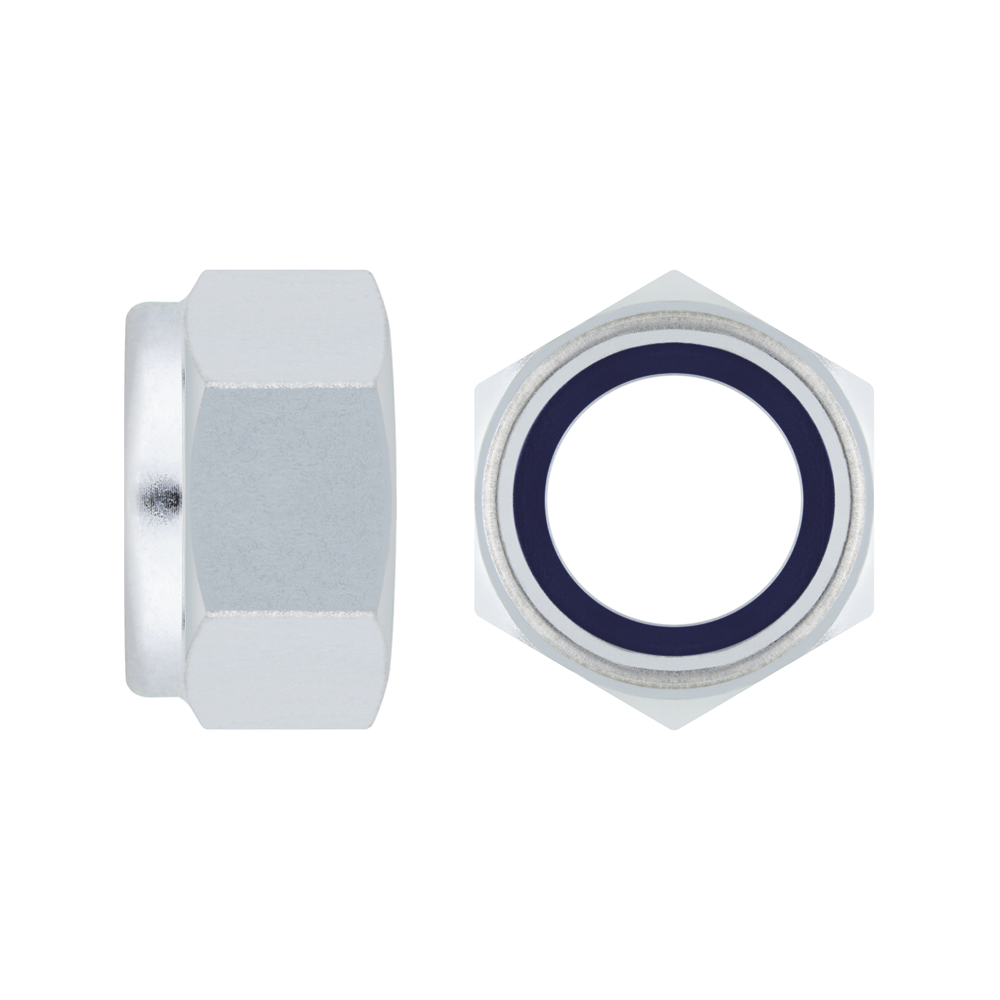

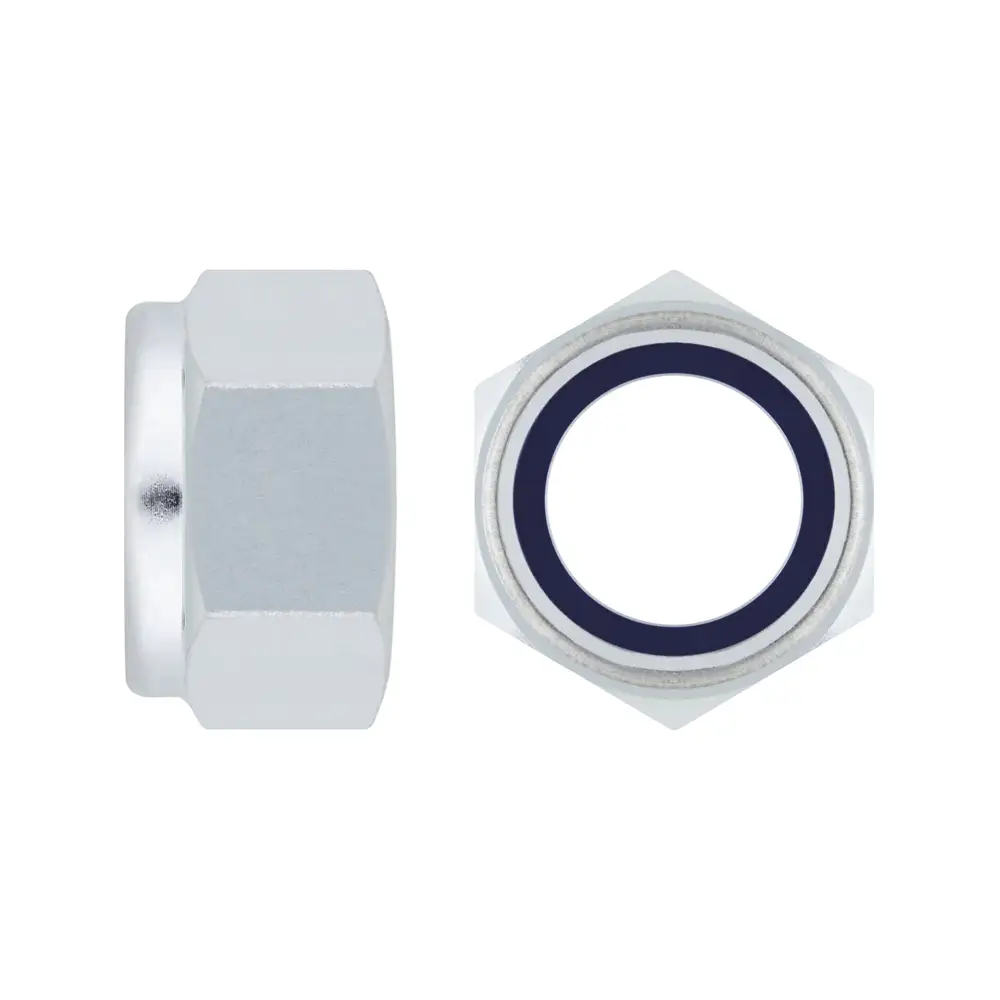

DIN 985 FP ZP

ISO 10511

Hexagon self locking nylon nut with fine pitch thread and zinc-plated finish

Ref.: 6607350

It is a self-locking hexagonal nut with ISO 10511 equivalence, fine pitch, manufactured in quality 6 and zinc plated. Its design incorporates a nylon washer inside, which provides strength to prevent unwanted loosening.

Size	Code	Pcs. Box	KG ESTUCHE	PCS. Master	KG MÁSTER	Uds. Palé	KG PALÉ	EAN Box	Weight (Pc/Kg)
M8 x 1,00	660735008X1,00	500	2.55	4.000	20.4	144.000	734.4	8432569303100	0.0051

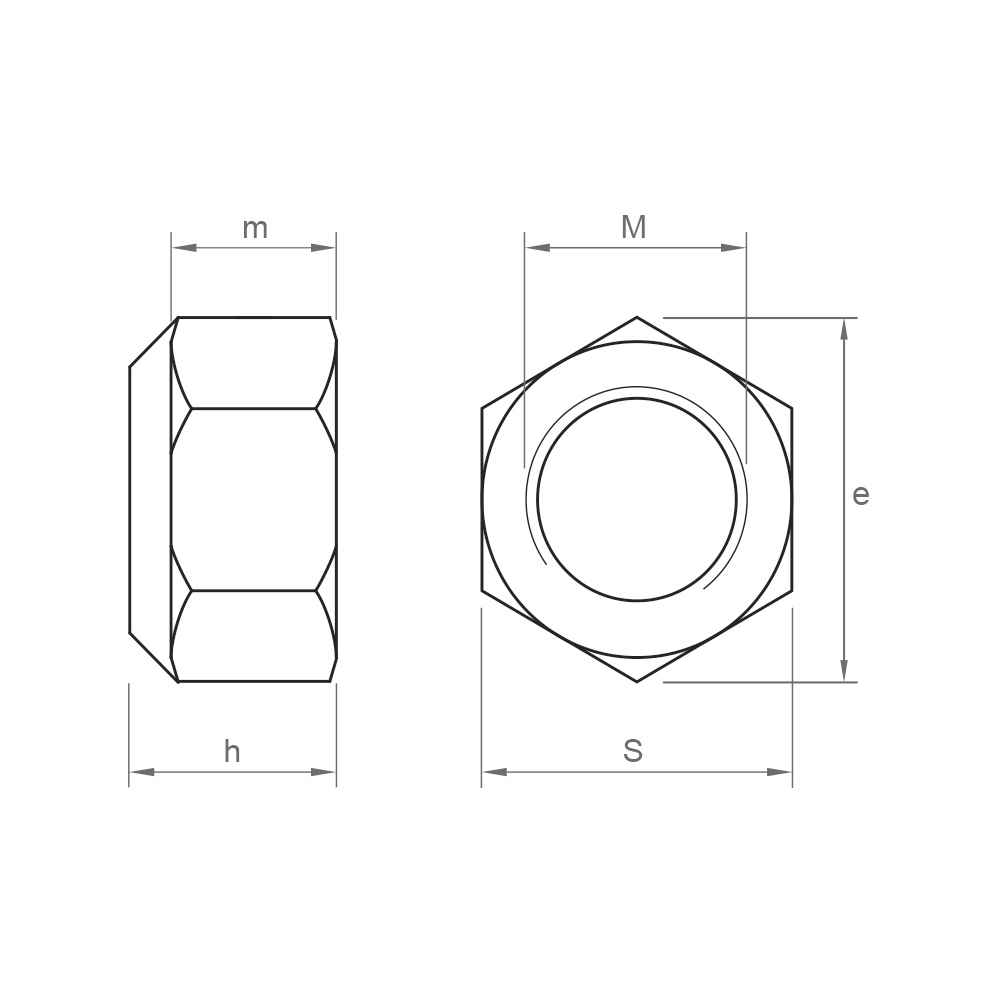

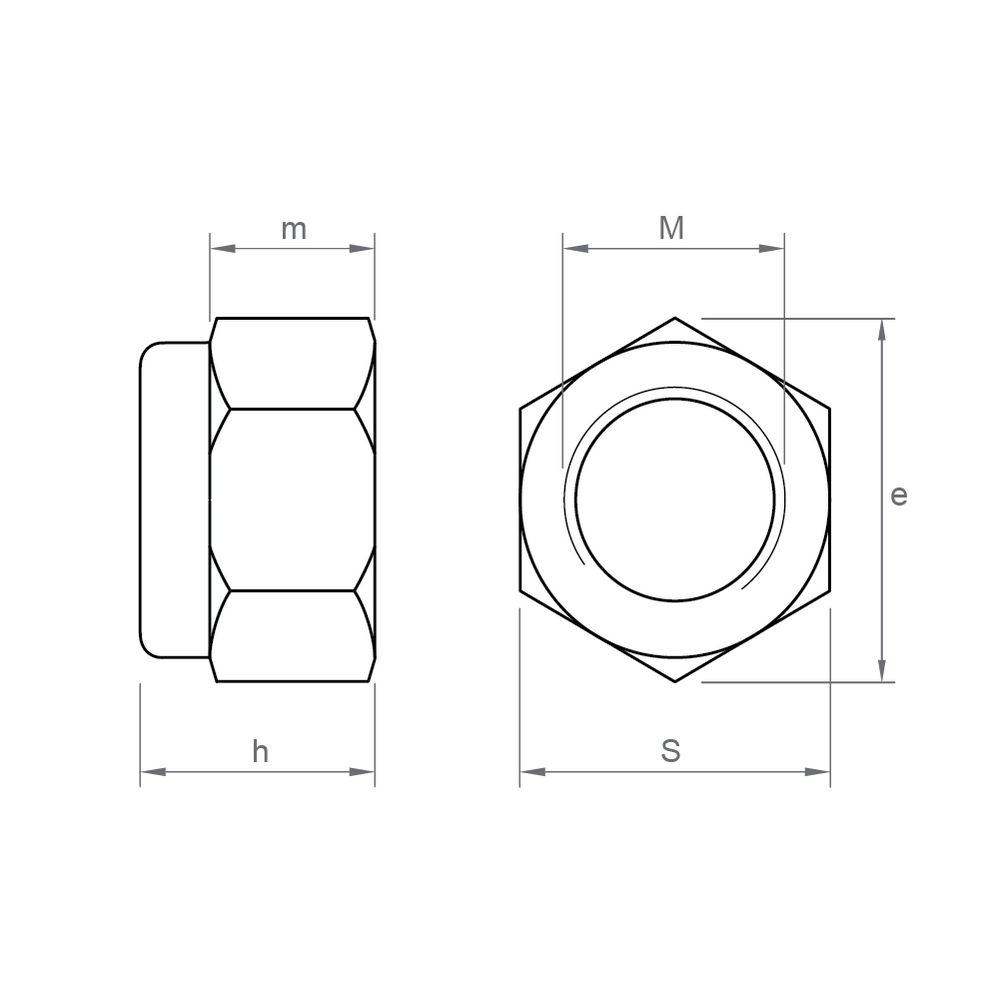

	M8 e14,38 m5,5 h8 S13
M10 x 1,00	660735010X1,00	500	5.3	2.000	21.2	72.000	763.2	8432569303117	0.0106
	M10 e18,9 m6,5 h10 S17
M10 x 1,25	660735010X1,25	500	5.3	2.000	21.2	72.000	763.2	8432569303124	0.0106
	M10 e18,9 m6,5 h10 S17
M12 x 1,25	660735012X1,25	350	5.25	1.400	21	50.400	756	8432569303148	0.015
	M12 e21,1 m8 h12 S19
M12 x 1,50	660735012X1,50	350	6.02	1.400	24.08	50.400	866.88	8432569303155	0.0172
	M12 e21,1 m8 h12 S19
M14 x 1,50	660735014X1,50	200	5.2	800	20.8	28.800	748.8	8432569303179	0.026
	M14 e24,49 m9,5 h14 S22
M16 x 1,50	660735016X1,50	150	4.5	600	18	21.600	648	8432569303186	0.03
	M16 e26,75 m10,5 h16 S24
M18 x 1,50	660735018X1,50	100	4.5	400	18	14.400	648	8432569303209	0.045
	M18 e29,56 m13 h18,5 S27
M20 x 1,50	660735020X1,50	75	4.32525	300	17.301	10.800	622.836	8432569303223	0.05767
	M20 e32,95 m14 h20 S30
M22 x 1,50	660735022X1,50	60	4.5	240	18	8.640	648	8432569303254	0.075
	M22 e35,03 m15 h22 S32
M24 x 1,50	660735024X1,50	40	4	160	16	5.760	576	8432569303278	0.1
	M24 e39,55 m15 h24 S36
M24 x 2,00	660735024X2,00	40	3.896	160	15.584	5.760	561.024	8432569303285	0.0974
	M24 e39,55 m15 h24 S36

DIN 985.8 FP ZP

ISO 10511

Hexagon self locking nylon nut with fine pitch thread, in zinc plated finish and quality 8
