EXPERTS IN FASTENERS AND WELDING SOLUTIONS when everything fits
Other nuts

DIN 1587 A4

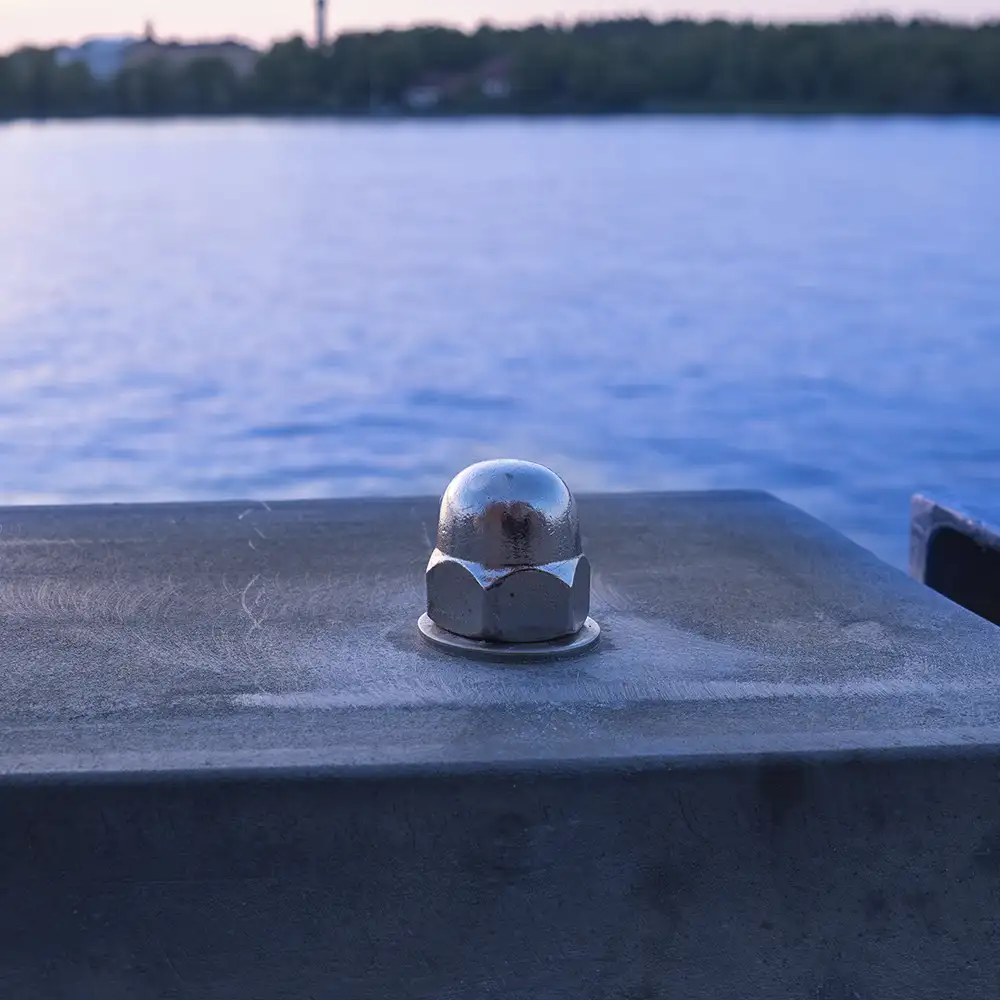

Hexagonal domed cap nut in stainless steel A4

Ref.: 6637000
It is a blind nut made of A4 stainless steel, which is characterised by its corrosion resistance and hardness. Its base is hexagonal and the upper part is dome-shaped. It is used to cover the thread termination for aesthetic reasons.
Size Code Pcs. Box KG ESTUCHE PCS. Master KG MÁSTER Uds. Palé KG PALÉ EAN Box Weight (Pc/Kg) Technical Info.
M4 663700004 1.000 1.8 12.000 21.6 432.000 777.6 8432569529128 0.0018
  • M4
  • dk6,5
  • m3,2
  • h8
  • r3,25
  • t5,26
  • S7
  • w2
M5 663700005 500 0.5 8.000 8 288.000 288 8432569680652 0.001
  • M5
  • dk7,5
  • m4
  • h10
  • r3,75
  • t7,21
  • S8
  • w2
M6 663700006 500 2.3 4.000 18.4 144.000 662.4 8432569529135 0.0046
  • M6
  • dk9,5
  • m5
  • h12
  • r4,75
  • t7,71
  • S10
  • w2
M8 663700008 500 5.5 2.000 22 72.000 792 8432569565362 0.011
  • M8
  • dk12,5
  • m6,5
  • h15
  • r6,25
  • t10,65
  • S13
  • w2
M10 663700010 200 4.02 800 16.08 28.800 578.88 8432569680669 0.0201
  • M10
  • dk15
  • m8
  • h18
  • r7,5
  • t12,65
  • S16
  • w2
M12 663700012 200 5.66 800 22.64 28.800 815.04 8432569680676 0.0283
  • M12
  • dk17
  • m10
  • h22
  • r8,5
  • t15,65
  • S18
  • w3
M14 663700014 100 2.6 400 10.4 14.400 374.4 8432569680843 0.026
  • M14
  • dk20
  • m11
  • h25
  • r10
  • t17,65
  • S21
  • w4
M16 663700016 100 5.43 400 21.72 14.400 781.92 8432569565379 0.0543
  • M16
  • dk23
  • m13
  • h28
  • r11,5
  • t20,58
  • S24
  • w4
M18 663700018 25 2.375 200 19 7.200 684 8432570008940 0.095
  • M18
  • dk26
  • m15
  • h32
  • r13
  • t24,58
  • S27
  • w5
M20 663700020 50 6.45 200 25.8 7.200 928.8 8432569659733 0.129
  • M20
  • dk28
  • m16
  • h34
  • r14
  • t25,58
  • S30
  • w5
