Other nuts

DIN 935.8 BL

ISO 7035

Hexagon slotted and castle nut in black finish and quality 8

Ref.: 6604150

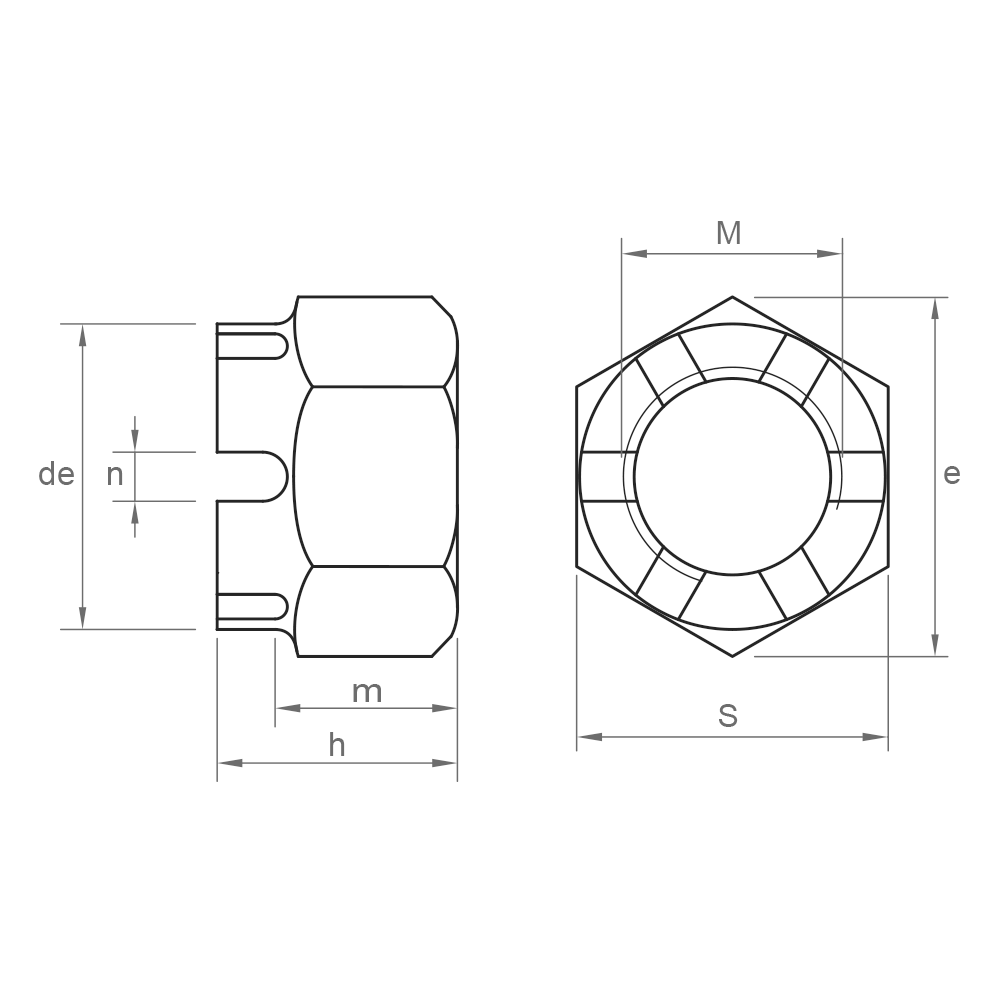

It is a hexagonal nut with ISO 7035 equivalence, manufactured in quality 8 and black coating. Its design is crenellated with grooves on its faces. It is used to place an anti-rotation pin that generates a lock and is used in the anchoring of transmission shafts.
Size Code Pcs. Box KG ESTUCHE PCS. Master KG MÁSTER Uds. Palé KG PALÉ EAN Box Weight (Pc/Kg) Technical Info.
M10 660415010 200 3.16 1.600 25.28 57.600 910.08 8432569298468 0.0158
  • M10
  • de-
  • e18,9
  • n2,8
  • m8
  • h12
  • S17
M12 660415012 100 2.26 800 18.08 28.800 650.88 8432569298475 0.0226
  • M12
  • de16
  • e21,1
  • n3,5
  • m15
  • S19
M16 660415016 50 1.945 400 15.56 14.400 560.16 8432569298499 0.0389
  • M16
  • de22
  • e26,75
  • n4,5
  • m13
  • h19
  • S24
M20 660415020 50 3.76 200 15.04 7.200 541.44 8432569298512 0.0752
  • M20
  • de28
  • e32,95
  • n4,5
  • m16
  • h22
  • S30
M24 660415024 50 6.55 200 26.2 7.200 943.2 8432569298536 0.131
  • M24
  • de34
  • e39,55
  • n5,5
  • m19
  • h27
  • S36
M30 660415030 25 6.6 100 26.4 3.600 950.4 8432569298550 0.264
  • M30
  • de42
  • e50,85
  • n7
  • m24
  • h33
  • S46
M33 660415033 10 3.33 40 13.32 1.440 479.52 8432569298567 0.333
  • M33
  • de46
  • e55,37
  • n7
  • m26
  • h35
  • S50
