DIN 7991 A2

ISO 10642

Hexagonal socket countersunk head screw in stainless Steel A2

Ref.: 6128080

It is a hexagon socket countersunk screw with ISO 10642 equivalence and manufactured from A2 stainless steel for corrosion resistance and durability. Its design features a countersunk head and allen hexagon socket that allows for a secure and tight fit when joining parts.

Size	Code	Pcs. Box	KG ESTUCHE	PCS. Master	KG MÁSTER	Uds. Palé	EAN Box	Weight (Pc/Kg)
M3 x 6	612808003X006	1.000	0	30.000	0	1.080.000	8432569553741	0.00047

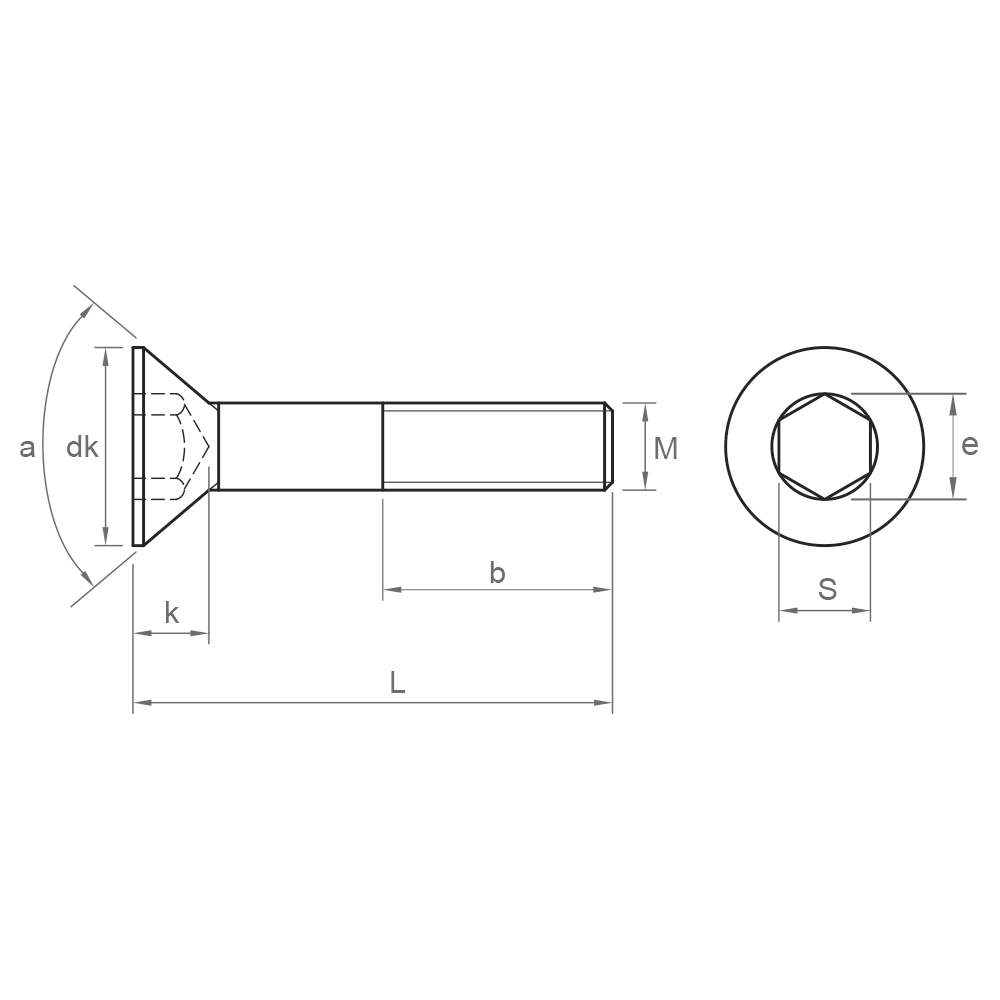

	M3 L6 M('')3 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2 Full threaded.
M3 x 8	612808003X008	500	0	15.000	0	540.000	8432569286915	0.0005
	M3 L8 M('')3 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2 Full threaded.
M3 x 10	612808003X010	500	0	15.000	0	540.000	8432569286922	0.00056
	M3 L10 M('')3 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2 Full threaded.
M3 x 12	612808003X012	500	0	15.000	0	540.000	8432569286939	0.0006
	M3 L12 M('')3 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2 Full threaded.
M3 x 16	612808003X016	500	0	15.000	0	540.000	8432569286946	0.0008
	M3 L16 M('')3 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2
M3 x 20	612808003X020	500	0	15.000	0	540.000	8432569286953	0.001
	M3 L20 M('')3 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2
M3 x 25	612808003X025	500	0	8.000	0	288.000	8432569286960	0.0013
	M3 L25 M('')3 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2
M3 x 30	612808003X030	500	0	8.000	0	288.000	8432569286977	0.0016
	M3 L30 M('')3 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2
M3 x 35	612808003X035	500	0	8.000	0	288.000	8432569751444	0.0019
	M3 L35 M('')3 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2
M3 x 40	612808003X040	500	0	4.000	0	144.000	8432569741032	0.0022
	M3 L40 M('')3 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2
M4 x 6	612808004X006	500	0	15.000	0	540.000	8432569522990	0.00077
	M4 L6 M('')4 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5 Full threaded.
M4 x 8	612808004X008	500	0	15.000	0	540.000	8432569286984	0.0009
	M4 L8 M('')4 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5 Full threaded.
M4 x 10	612808004X010	500	0	15.000	0	540.000	8432569286991	0.001
	M4 L10 M('')4 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5 Full threaded.
M4 x 12	612808004X012	500	0	15.000	0	540.000	8432569287004	0.0012
	M4 L12 M('')4 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5 Full threaded.
M4 x 14	612808004X014	500	0	15.000	0	540.000	8432569732795	0.00138
	M4 L14 M('')4 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5 Full threaded.
M4 x 16	612808004X016	500	0	8.000	0	288.000	8432569287011	0.0015
	M4 L16 M('')4 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5
M4 x 20	612808004X020	500	0	8.000	0	288.000	8432569287028	0.0018
	M4 L20 M('')4 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5
M4 x 25	612808004X025	500	0	8.000	0	288.000	8432569287035	0.0022
	M4 L25 M('')4 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5
M4 x 30	612808004X030	500	0	4.000	0	144.000	8432569287042	0.0029
	M4 L30 M('')4 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5
M4 x 35	612808004X035	500	0	4.000	0	144.000	8432569287059	0.0034
	M4 L35 M('')4 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5
M4 x 40	612808004X040	500	0	4.000	0	144.000	8432569287066	0.0039
	M4 L40 M('')4 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5
M4 x 45	612808004X045	500	0	4.000	0	144.000	8432569836141	0.0042
	M4 L45 M('')4 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5
M4 x 50	612808004X050	500	0	2.000	0	72.000	8432569741049	0.0049
	M4 L50 M('')4 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5
M5 x 8	612808005X008	500	0	15.000	0	540.000	8432569287073	0.0016
	M5 L8 M('')5 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3 Full threaded.
M5 x 10	612808005X010	500	0	8.000	0	288.000	8432569287080	0.0018
	M5 L10 M('')5 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3 Full threaded.
M5 x 12	612808005X012	500	0	8.000	0	288.000	8432569287097	0.0021
	M5 L12 M('')5 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3 Full threaded.
M5 x 14	612808005X014	500	0	4.000	0	144.000	8432569737295	0.00234
	M5 L14 M('')5 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3 Full threaded.
M5 x 16	612808005X016	500	0	4.000	0	144.000	8432569287103	0.0026
	M5 L16 M('')5 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3 Full threaded.
M5 x 20	612808005X020	500	0	4.000	0	144.000	8432569287110	0.0031
	M5 L20 M('')5 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3
M5 x 25	612808005X025	500	0	4.000	0	144.000	8432569287127	0.0037
	M5 L25 M('')5 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3
M5 x 30	612808005X030	500	0	4.000	0	144.000	8432569287134	0.0043
	M5 L30 M('')5 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3
M5 x 35	612808005X035	200	0	3.200	0	115.200	8432569287141	0.0054
	M5 L35 M('')5 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3
M5 x 40	612808005X040	200	0	3.200	0	115.200	8432569287158	0.0062
	M5 L40 M('')5 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3
M5 x 45	612808005X045	200	0	1.600	0	57.600	8432569287165	0.0069
	M5 L45 M('')5 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3
M5 x 50	612808005X050	200	0	1.600	0	57.600	8432569287172	0.0077
	M5 L50 M('')5 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3
M5 x 60	612808005X060	200	0	1.600	0	57.600	8432569287189	0.00844
	M5 L60 M('')5 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3
M5 x 70	612808005X070	200	0	1.600	0	57.600	8432569745887	0.00914
	M5 L70 M('')5 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3
M6 x 10	612808006X010	500	0	8.000	0	288.000	8432569287196	0.0027
	M6 L10 M('')6 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4 Full threaded.
M6 x 12	612808006X012	500	0	8.000	0	288.000	8432569287202	0.003
	M6 L12 M('')6 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4 Full threaded.
M6 x 14	612808006X014	500	0	4.000	0	144.000	8432569688856	0.0034
	M6 L14 M('')6 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4 Full threaded.
M6 x 16	612808006X016	500	0	4.000	0	144.000	8432569287219	0.0037
	M6 L16 M('')6 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4 Full threaded.
M6 x 20	612808006X020	500	0	4.000	0	144.000	8432569287226	0.0044
	M6 L20 M('')6 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 25	612808006X025	500	0	4.000	0	144.000	8432569287233	0.0053
	M6 L25 M('')6 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 30	612808006X030	500	0	4.000	0	144.000	8432569287240	0.0062
	M6 L30 M('')6 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 35	612808006X035	200	0	1.600	0	57.600	8432569287257	0.0071
	M6 L35 M('')6 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 40	612808006X040	200	0	800	0	28.800	8432569287264	0.0088
	M6 L40 M('')6 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 45	612808006X045	200	0	800	0	28.800	8432569287271	0.01056
	M6 L45 M('')6 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 50	612808006X050	200	0	1.600	0	57.600	8432569287288	0.011
	M6 L50 M('')6 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 60	612808006X060	200	0	1.600	0	57.600	8432569287295	0.01188
	M6 L60 M('')6 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 70	612808006X070	200	0	800	0	28.800	8432569287301	0.0154
	M6 L70 M('')6 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 80	612808006X080	200	0	800	0	28.800	8432569287318	0.0176
	M6 L80 M('')6 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 90	612808006X090	100	0	800	0	28.800	8432569650181	0.05657
	M6 L90 M('')6 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 100	612808006X100	100	0	800	0	28.800	8432569711394	0.022
	M6 L100 M('')6 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M8 x 10	612808008X010	200	0	3.200	0	115.200	8432569287325	0.00547
	M8 L10 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5 Full threaded.
M8 x 12	612808008X012	200	0	3.200	0	115.200	8432569287332	0.0061
	M8 L12 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5 Full threaded.
M8 x 14	612808008X014	200	0	3.200	0	115.200	8432569740073	0.0067
	M8 L14 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5 Full threaded.
M8 x 16	612808008X016	200	0	3.200	0	115.200	8432569287349	0.0073
	M8 L16 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5 Full threaded.
M8 x 20	612808008X020	200	0	16.000	0	57.600	8432569287356	0.0086
	M8 L20 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5 Full threaded.
M8 x 25	612808008X025	200	0	1.600	0	57.600	8432569287363	0.0102
	M8 L25 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 30	612808008X030	200	0	1.600	0	57.600	8432569287370	0.0117
	M8 L30 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 35	612808008X035	200	0	1.600	0	57.600	8432569287387	0.0133
	M8 L35 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 40	612808008X040	200	0	800	0	28.800	8432569287394	0.0148
	M8 L40 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 45	612808008X045	200	0	800	0	28.800	8432569287400	0.0173
	M8 L45 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 50	612808008X050	200	0	800	0	28.800	8432569287417	0.0199
	M8 L50 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 55	612808008X055	200	0	800	0	28.800	8432569741179	0.0224
	M8 L55 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 60	612808008X060	200	0	800	0	28.800	8432569287424	0.025
	M8 L60 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 70	612808008X070	200	0	400	0	14.400	8432569287431	0.025
	M8 L70 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 80	612808008X080	200	0	400	0	14.400	8432569287448	0.0351
	M8 L80 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 90	612808008X090	100	0	400	0	14.400	8432569539646	0.0402
	M8 L90 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 100	612808008X100	100	0	400	0	14.400	8432569576351	0.0453
	M8 L100 M('')8 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M10 x 16	612808010X016	200	0	1.600	0	57.600	8432569287455	0.0121
	M10 L16 M('')10 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6 Full threaded.
M10 x 20	612808010X020	200	0	1.600	0	57.600	8432569287462	0.0141
	M10 L20 M('')10 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6 Full threaded.
M10 x 25	612808010X025	200	0	800	0	28.800	8432569287479	0.0166
	M10 L25 M('')10 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6 Full threaded.
M10 x 30	612808010X030	200	0	800	0	28.800	8432569287486	0.0191
	M10 L30 M('')10 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 35	612808010X035	100	0	800	0	28.800	8432569287493	0.0216
	M10 L35 M('')10 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 40	612808010X040	100	0	800	0	28.800	8432569287509	0.0241
	M10 L40 M('')10 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 45	612808010X045	100	0	800	0	28.800	8432569287516	0.0271
	M10 L45 M('')10 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 50	612808010X050	100	0	800	0	28.800	8432569287523	0.0301
	M10 L50 M('')10 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 55	612808010X055	100	0	400	0	14.400	8432569478518	0.0329
	M10 L55 M('')10 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 60	612808010X060	100	0	400	0	14.400	8432569287530	0.0357
	M10 L60 M('')10 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 70	612808010X070	100	0	400	0	14.400	8432569287547	0.0412
	M10 L70 M('')10 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 80	612808010X080	100	0	400	0	14.400	8432569287554	0.0524
	M10 L80 M('')10 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 90	612808010X090	100	0	400	0	14.400	8432569659269	0.0524
	M10 L90 M('')10 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 100	612808010X100	100	0	400	0	14.400	8432569287561	0.058
	M10 L100 M('')10 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M12 x 20	612808012X020	100	0	800	0	28.800	8432569287578	0.0212
	M12 L20 M('')12 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8 Full threaded.
M12 x 25	612808012X025	100	0	800	0	28.800	8432569287585	0.0248
	M12 L25 M('')12 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8 Full threaded.
M12 x 30	612808012X030	100	0	800	0	28.800	8432569287592	0.0285
	M12 L30 M('')12 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8 Full threaded.
M12 x 35	612808012X035	100	0	400	0	14.400	8432569287608	0.0321
	M12 L35 M('')12 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 40	612808012X040	100	0	400	0	14.400	8432569287615	0.0357
	M12 L40 M('')12 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 45	612808012X045	100	0	400	0	14.400	8432569287622	0.0393
	M12 L45 M('')12 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 50	612808012X050	100	0	400	0	14.400	8432569287639	0.043
	M12 L50 M('')12 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 55	612808012X055	100	0	400	0	14.400	8432569741193	0.0466
	M12 L55 M('')12 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 60	612808012X060	100	0	400	0	14.400	8432569287646	0.054
	M12 L60 M('')12 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 70	612808012X070	50	0	200	0	7.200	8432569287653	0.0629
	M12 L70 M('')12 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 80	612808012X080	50	0	200	0	7.200	8432569576214	0.0718
	M12 L80 M('')12 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 90	612808012X090	50	0	200	0	7.200	8432569576221	0.0807
	M12 L90 M('')12 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 100	612808012X100	50	0	200	0	7.200	8432569576238	0.0896
	M12 L100 M('')12 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M14 x 35	612808014X035	50	0	400	0	14.400	8432569287677	0.0452
	M14 L35 M('')14 k7 dk27 a90° b34 ds14 e11,43 t4,8 S10
M16 x 30	612808016X030	50	0	400	0	14.400	8432569287738	0.0518
	M16 L30 M('')16 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10 Full threaded.
M16 x 35	612808016X035	50	0	200	0	7.200	8432569287745	0.0584
	M16 L35 M('')16 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10 Full threaded.
M16 x 40	612808016X040	50	0	200	0	7.200	8432569287752	0.0651
	M16 L40 M('')16 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M16 x 45	612808016X045	50	0	200	0	7.200	8432569287769	0.0717
	M16 L45 M('')16 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M16 x 50	612808016X050	50	0	200	0	7.200	8432569287776	0.0784
	M16 L50 M('')16 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M16 x 55	612808016X055	50	0	200	0	7.200	8432569836158	0.085
	M16 L55 M('')16 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M16 x 60	612808016X060	50	0	200	0	7.200	8432569287783	0.0917
	M16 L60 M('')16 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M16 x 70	612808016X070	25	0	100	0	3.600	8432569287790	0.111
	M16 L70 M('')16 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M16 x 80	612808016X080	25	0	100	0	3.600	8432569745269	0.127
	M16 L80 M('')16 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M16 x 90	612808016X090	25	0	100	0	3.600	8432569745276	0.143
	M16 L90 M('')16 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M16 x 100	612808016X100	25	0	100	0	3.600	8432569745283	0.127
	M16 L100 M('')16 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10

DIN 7991 A4

ISO 10642

Hexagonal socket countersunk head screw in stainless Steel A4

Do you need more information?

Nombre

Apellidos

Correo electrónico

Teléfono

Empresa

Consulta

Datos

I accept the use of my personal data by the technical staff at CHAVES BILBAO, S.L. (Tax ID (CIF) B-48044473) in order to contact me exclusively for informing me of and advising me on its products.

Privacidad

I have read and accept the Legal Notice and Privacy Policy. This site is protected by reCAPTCHA and the Google privacy policy and terms of service that apply.

CHAVES BILBAO, S.L. informs you that the personal data provided voluntarily on this website, the purpose, intended transfers and other circumstances of which are communicated when the personal data is collected, may, depending on the specific case, have any of the following purposes: responding to your request, complaint or question, maintaining the established relationship, the comprehensive and commercial management of customers, accounting and invoicing or sending of communications of news and activities related with CHAVES BILBAO, S.L., including by electronic means. The data included in our files is absolutely confidential and will be processed with the utmost confidentiality and in compliance with all the requirements set out in the General Data Protection Regulation (GDPR) of the 27th of April 2016. The data is registered in our files for the time necessary for the purpose for which it was collected. The period during which the personal data will be kept will be that established by current legislation and always during the period of the provision of the service for which it was provided. We do not recommend sending personal data that is classified as highly confidential by data protection legislation, such as that related to health, as it is not sent coded or encrypted. Therefore, if you send this type of data, it will be at your own risk. The user may at any time exercise their rights to access, rectify, oppose, cancel, limit processing or request its portability in accordance with the General Data Protection Regulation (GDPR) of the 27th of April 2016, sending a letter along with a photocopy of their DNI identity document, to CHAVES BILBAO, S.L. C/Bizkargi, 6 Polígono Industrial Sarrikola 48195 Larrabetzu - Bizkaia - Spain, or using the email address info@chavesbao.com.

DIN 7991 A2

Hexagonal socket countersunk head screw in stainless Steel A2

DIN 7991 A4

Do you need more information?

customer area

language
