DIN 916 A2

ISO 4029

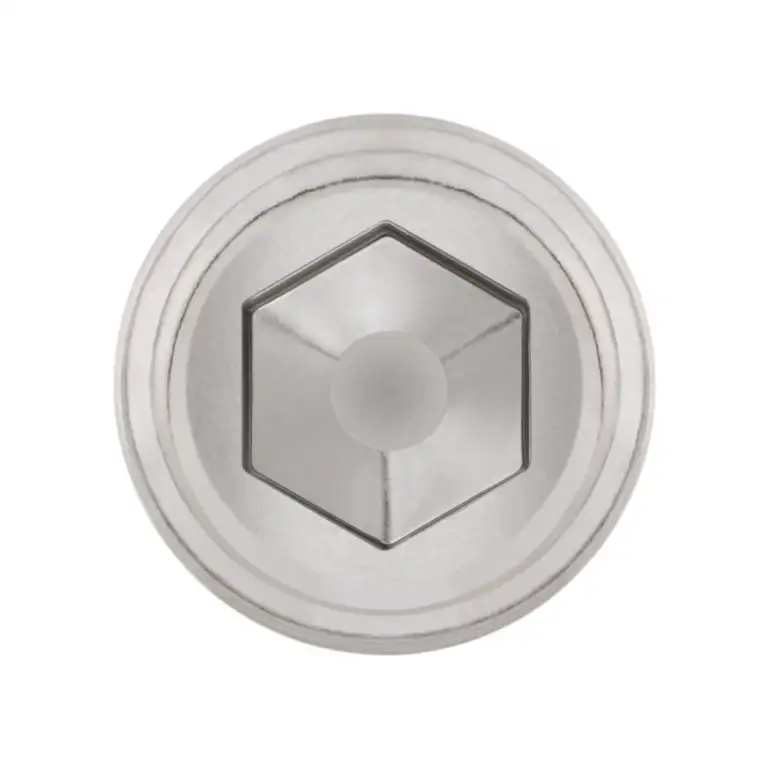

Cup point Hexagonal socket set screw in stainless Steel A2

Ref.: 3221000

It is an ISO 4029 compliant socket head cap screw made of A2 stainless steel, which is characterised by its high durability and resistance to corrosion. It has a cylindrical shape with a full thread, no head and a flat tip. It is used for fastening elements. As it has no head, it is flush with the surface, which is why it is used for its aesthetic appearance.

Size	Code	Pcs. Box	KG ESTUCHE	PCS. Master	KG MÁSTER	Uds. Palé	KG PALÉ	EAN Box	Weight (Pc/Kg)
M3 x 6	322100003X006	1.000	0.2	30.000	6	1.080.000	216	8432569563504	0.0002
	M3 L6 dv1,15-1,4 e1,73 S1,5
M3 x 10	322100003X010	1.000	0.4	30.000	12	1.080.000	432	8432569563511	0.0004
	M3 L10 dv1,15-1,4 e1,73 S1,5
M3 x 20	322100003X020	500	0.4	15.000	12	540.000	432	8432569758122	0.0008
	M3 L20 dv1,15-1,4 e1,73 S1,5
M3 x 25	322100003X025	500	0.5	15.000	15	540.000	540	8432569792737	0.001
	M3 L25 dv1,15-1,4 e1,73 S1,5
M4 x 4	322100004X004	1.000	0.1	30.000	3	1.080.000	108	8432569742336	0.0001
	M4 L4 dv1,75-2 e2,3 S2
M4 x 5	322100004X005	1.000	0.2	30.000	6	1.080.000	216	8432569563528	0.0002
	M4 L5 dv1,75-2 e2,3 S2
M4 x 6	322100004X006	1.000	0.4	30.000	12	1.080.000	432	8432569049152	0.0004
	M4 L6 dv1,75-2 e2,3 S2
M4 x 8	322100004X008	1.000	0.5	30.000	15	1.080.000	540	8432569563535	0.0005
	M4 L8 dv1,75-2 e2,3 S2
M4 x 10	322100004X010	1.000	0.7	16.000	11.2	576.000	403.2	8432569049169	0.0007
	M4 L10 dv1,75-2 e2,3 S2
M4 x 12	322100004X012	1.000	0.8	16.000	12.8	576.000	460.8	8432569563542	0.0008
	M4 L12 dv1,75-2 e2,3 S2
M4 x 16	322100004X016	500	0.55	15.000	16.5	540.000	594	8432569049176	0.0011
	M4 L16 dv1,75-2 e2,3 S2
M4 x 20	322100004X020	500	0.7	8.000	11.2	288.000	403.2	8432569468939	0.0014
	M4 L20 dv1,75-2 e2,3 S2
M4 x 30	322100004X030	500	1.1	8.000	17.6	288.000	633.6	8432569468946	0.0022
	M4 L30 dv1,75-2 e2,3 S2
M5 x 5	322100005X005	1.000	0.4	30.000	12	1.080.000	432	8432569563559	0.0004
	M5 L5 dv2,25-2,5 e2,87 S2,5
M5 x 6	322100005X006	1.000	0.5	30.000	15	1.080.000	540	8432569049190	0.0005
	M5 L6 dv2,25-2,5 e2,87 S2,5
M5 x 8	322100005X008	1.000	0.8	16.000	12.8	576.000	460.8	8432569637939	0.0008
	M5 L8 dv2,25-2,5 e2,87 S2,5
M5 x 10	322100005X010	500	0.5	8.000	8	288.000	288	8432569049206	0.001
	M5 L10 dv2,25-2,5 e2,87 S2,5
M5 x 12	322100005X012	500	0.6	8.000	9.6	288.000	345.6	8432569049213	0.0012
	M5 L12 dv2,25-2,5 e2,87 S2,5
M5 x 16	322100005X016	500	0.85	8.000	13.6	288.000	489.6	8432569049220	0.0017
	M5 L16 dv2,25-2,5 e2,87 S2,5
M5 x 20	322100005X020	500	1.1	8.000	17.6	288.000	633.6	8432569049237	0.0022
	M5 L20 dv2,25-2,5 e2,87 S2,5
M5 x 25	322100005X025	500	1.4	4.000	11.2	144.000	403.2	8432569563566	0.0028
	M5 L25 dv2,25-2,5 e2,87 S2,5
M5 x 35	322100005X035	500	2	4.000	16	144.000	576	8432569792836	0.004
	M5 L35 dv2,25-2,5 e2,87 S2,5
M5 x 40	322100005X040	500	2.3	4.000	18.4	144.000	662.4	8432569791693	0.0046
	M5 L40 dv2,25-2,5 e2,87 S2,5
M6 x 6	322100006X006	1.000	0.7	30.000	21	1.080.000	756	8432569049244	0.0007
	M6 L6 dv2,75-3 e3,44 S3
M6 x 8	322100006X008	1.000	1.1	30.000	33	1.080.000	1188	8432569049251	0.0011
	M6 L8 dv2,75-3 e3,44 S3
M6 x 10	322100006X010	500	0.7	8.000	11.2	288.000	403.2	8432569049268	0.0014
	M6 L10 dv2,75-3 e3,44 S3
M6 x 12	322100006X012	500	0.9	8.000	14.4	288.000	518.4	8432569049275	0.0018
	M6 L12 dv2,75-3 e3,44 S3
M6 x 16	322100006X016	500	1.25	8.000	20	288.000	720	8432569049282	0.0025
	M6 L16 dv2,75-3 e3,44 S3
M6 x 20	322100006X020	500	1.6	4.000	12.8	144.000	460.8	8432569468960	0.0032
	M6 L20 dv2,75-3 e3,44 S3
M6 x 25	322100006X025	500	2	4.000	16	144.000	576	8432569563573	0.004
	M6 L25 dv2,75-3 e3,44 S3
M6 x 30	322100006X030	500	2.45	4.000	19.6	144.000	705.6	8432569049299	0.0049
	M6 L30 dv2,75-3 e3,44 S3
M6 x 35	322100006X035	500	2.9	4.000	23.2	144.000	835.2	8432569711899	0.0058
	M6 L35 dv2,75-3 e3,44 S3
M6 x 40	322100006X040	250	1.675	2.000	13.4	72.000	482.4	8432569563580	0.0067
	M6 L40 dv2,75-3 e3,44 S3
M6 x 50	322100006X050	250	2.125	2.000	17	72.000	612	8432569711905	0.0085
	M6 L50 dv2,75-3 e3,44 S3
M8 x 8	322100008X008	500	0.95	8.000	15.2	288.000	547.2	8432569563597	0.0019
	M8 L8 dv4,7-5 e4,58 S4
M8 x 10	322100008X010	500	1.25	8.000	20	288.000	720	8432569049305	0.0025
	M8 L10 dv4,7-5 e4,58 S4
M8 x 12	322100008X012	500	1.55	8.000	24.8	288.000	892.8	8432569049312	0.0031
	M8 L12 dv4,7-5 e4,58 S4
M8 x 16	322100008X016	500	2.2	4.000	17.6	144.000	633.6	8432569049329	0.0044
	M8 L16 dv4,7-5 e4,58 S4
M8 x 20	322100008X020	500	50	4.000	400	144.000	14400	8432569451917	0.1
	M8 L20 dv4,7-5 e4,58 S4
M8 x 25	322100008X025	250	1.8	2.000	14.4	72.000	518.4	8432569454659	0.0072
	M8 L25 dv4,7-5 e4,58 S4
M8 x 35	322100008X035	250	2.6	2.000	20.8	72.000	748.8	8432569564204	0.0104
	M8 L35 dv4,7-5 e4,58 S4
M8 x 45	322100008X045	250	3.4	1.000	13.6	36.000	489.6	8432569711929	0.0136
	M8 L45 dv4,7-5 e4,58 S4
M8 x 60	322100008X060	250	4.6	1.000	18.4	36.000	662.4	8432569793048	0.0184
	M8 L60 dv4,7-5 e4,58 S4
M8 x 70	322100008X070	100	2.16	800	17.28	28.800	622.08	8432569793109	0.0216
	M8 L70 dv4,7-5 e4,58 S4
M10 x 10	322100010X010	500	1.85	4.000	14.8	144.000	532.8	8432569468977	0.0037
	M10 L10 dv5,7-6 e5,72 S5
M10 x 12	322100010X012	500	2.35	4.000	18.8	144.000	676.8	8432569638295	0.0047
	M10 L12 dv5,7-6 e5,72 S5
M10 x 16	322100010X016	500	3.35	2.000	13.4	72.000	482.4	8432569049343	0.0067
	M10 L16 dv5,7-6 e5,72 S5
M10 x 20	322100010X020	250	2.175	2.000	17.4	72.000	626.4	8432569049350	0.0087
	M10 L20 dv5,7-6 e5,72 S5
M10 x 25	322100010X025	250	2.8	2.000	22.4	72.000	806.4	8432569454666	0.0112
	M10 L25 dv5,7-6 e5,72 S5
M10 x 30	322100010X030	200	2.74	1.600	21.92	57.600	789.12	8432569468984	0.0137
	M10 L30 dv5,7-6 e5,72 S5
M10 x 40	322100010X040	200	3.74	800	14.96	28.800	538.56	8432569649215	0.0187
	M10 L40 dv5,7-6 e5,72 S5
M10 x 45	322100010X045	200	4.24	800	16.96	28.800	610.56	8432569711950	0.0212
	M10 L45 dv5,7-6 e5,72 S5
M10 x 70	322100010X070	100	3.37	400	13.48	14.400	485.28	8432569791075	0.0337
	M10 L70 dv5,7-6 e5,72 S5
M12 x 10	322100012X010	500	2.65	2.000	10.6	72.000	381.6	8432569535938	0.0053
	M12 L10 dv7,64-8 e6,86 S6
M12 x 12	322100012X012	500	3.35	2.000	13.4	72.000	482.4	8432569792638	0.0067
	M12 L12 dv7,64-8 e6,86 S6
M12 x 16	322100012X016	500	4.75	2.000	19	72.000	684	8432569049367	0.0095
	M12 L16 dv7,64-8 e6,86 S6
M12 x 20	322100012X020	500	6.15	2.000	24.6	72.000	885.6	8432569454673	0.0123
	M12 L20 dv7,64-8 e6,86 S6
M12 x 25	322100012X025	200	3.18	800	12.72	28.800	457.92	8432569563603	0.0159
	M12 L25 dv7,64-8 e6,86 S6
M12 x 35	322100012X035	200	4.62	800	18.48	28.800	665.28	8432569698268	0.0231
	M12 L35 dv7,64-8 e6,86 S6
M12 x 45	322100012X045	200	6.06	800	24.24	28.800	872.64	8432569792942	0.0303
	M12 L45 dv7,64-8 e6,86 S6
M12 x 50	322100012X050	100	3.39	400	13.56	14.400	488.16	8432569563634	0.0339
	M12 L50 dv7,64-8 e6,86 S6
M12 x 60	322100012X060	100	4.11	400	16.44	14.400	591.84	8432569563641	0.0411
	M12 L60 dv7,64-8 e6,86 S6
