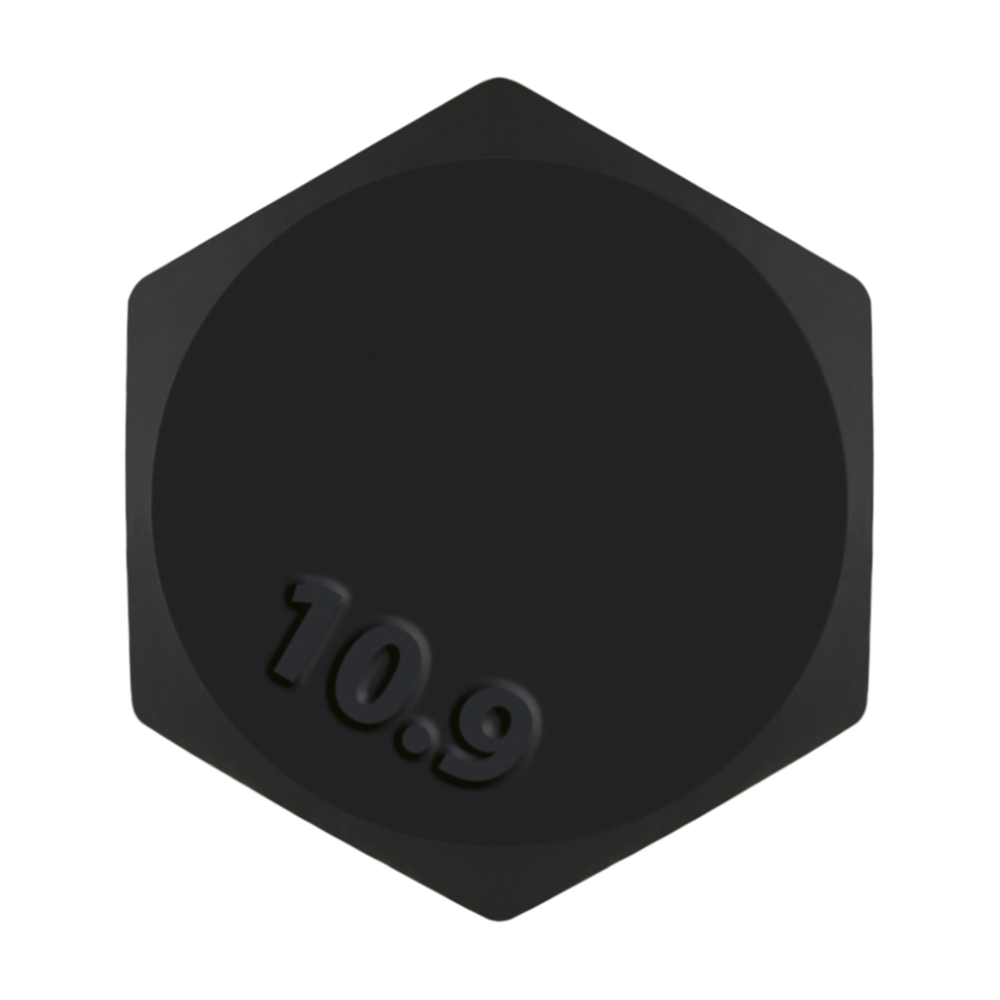

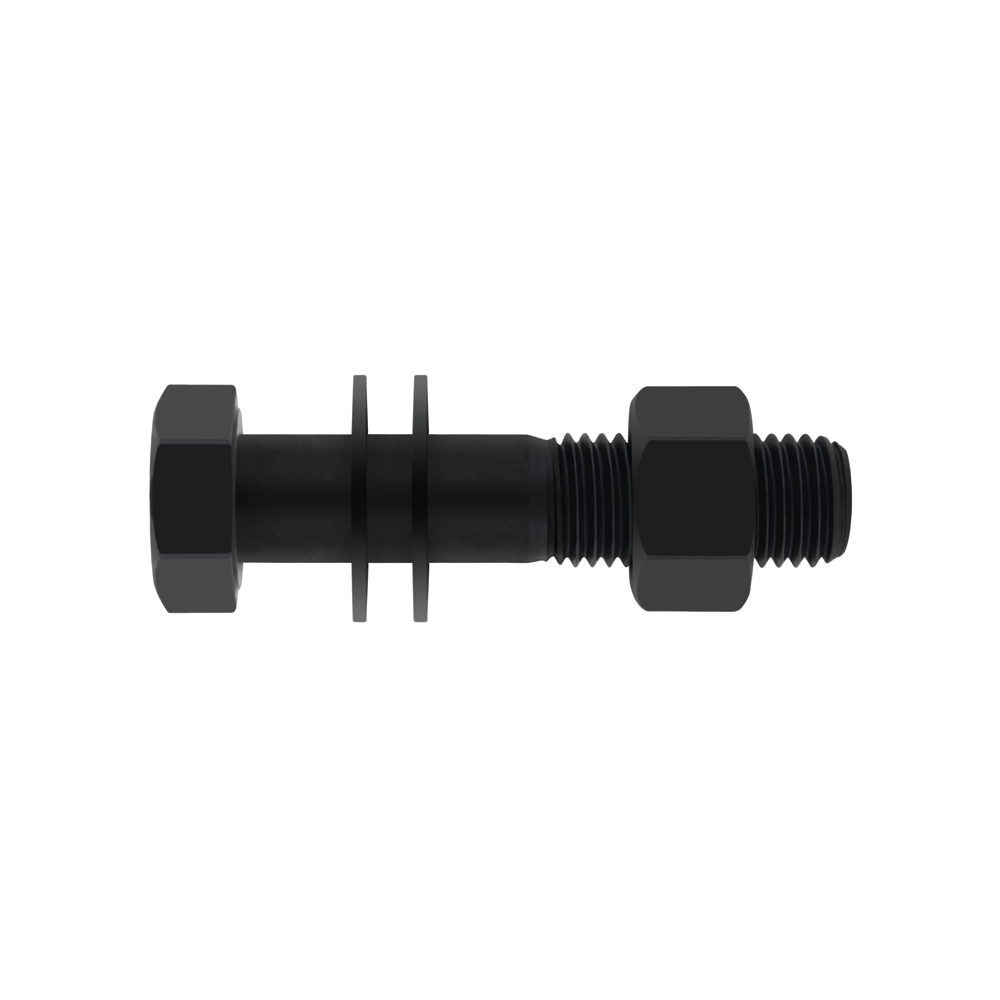

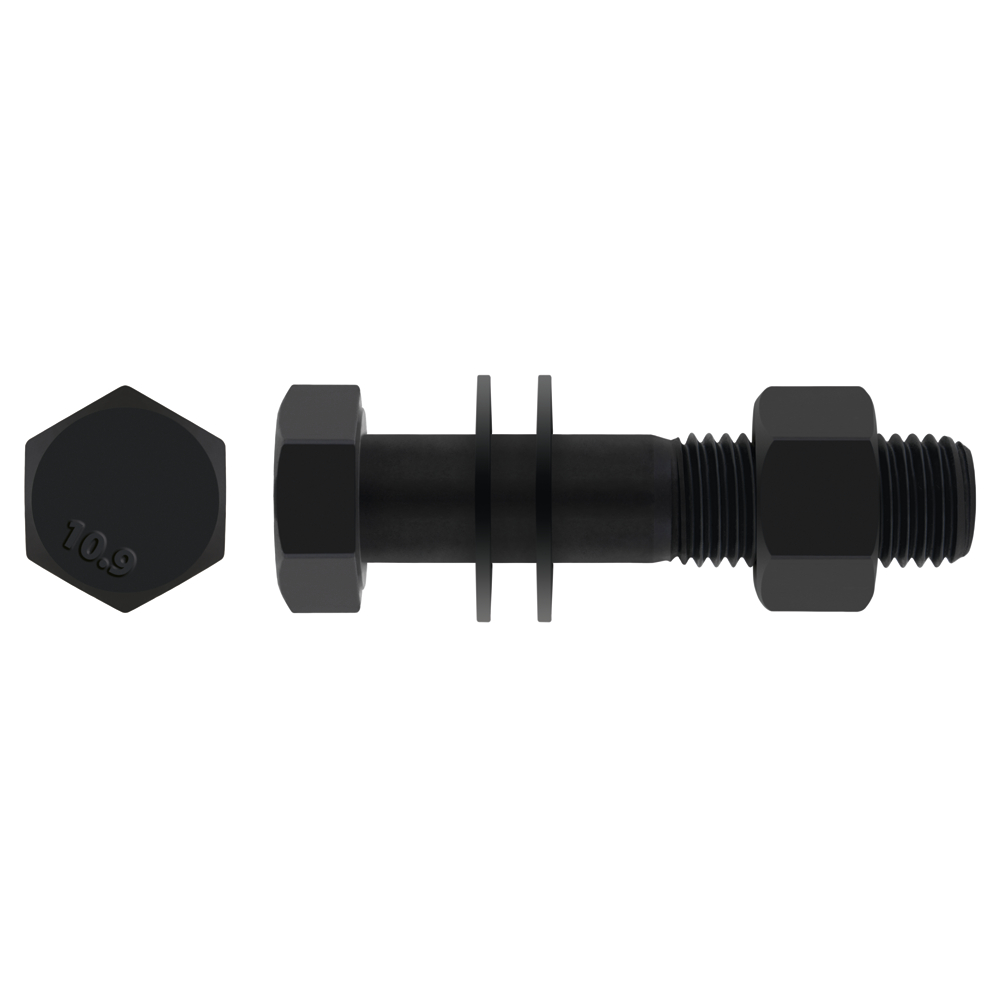

EN 14399-4 10.9 HV SET BL

Set of high-strength structural bolts for preloading, HR system with CE marking, black finish and quality 10.9

Ref.: 606980

This is a set of high-strength structural bolts for preloading with HV system, CE marked and class K1. It consists of a half-thread hexagonal bolt, hexagonal nut and two flat washers, manufactured in quality 10.9 with black coating. It is used in high-strength preloaded metal structural connections in the construction industry.

Size	Code	Pcs. Box	KG ESTUCHE	PCS. Master	KG MÁSTER	Uds. Palé	KG PALÉ	EAN Box	Weight (Pc/Kg)
M12 x 30	60698012X030	100	9.2	200	18.4	7.200	662.4	8432569986624	0.092

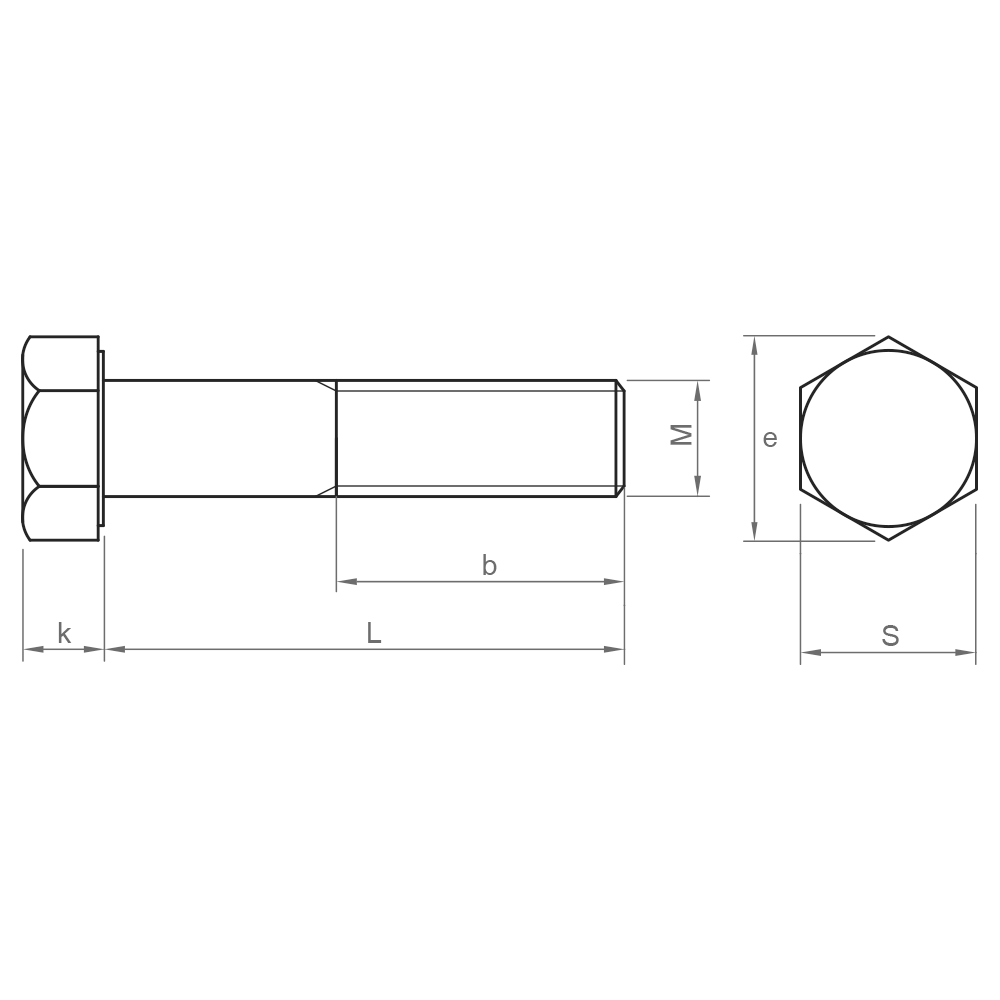

	M12 L30 k8 e23,91
M12 x 35	60698012X035	100	9.6	200	19.2	7.200	691.2	8432569986631	0.096
	M12 L35 k8 e23,91
M12 x 40	60698012X040	100	10	200	20	7.200	720	8432569986648	0.1
	M12 L40 k8 e23,91
M12 x 45	60698012X045	50	5.15	150	15.45	5.400	556.2	8432569986655	0.103
	M12 L45 k8 e23,91
M12 x 50	60698012X050	50	5.4	150	16.2	5.400	583.2	8432569986662	0.108
	M12 L50 k8 e23,91
M12 x 55	60698012X055	50	5.6	150	16.8	5.400	604.8	8432569986679	0.112
	M12 L55 k8 e23,91
M12 x 60	60698012X060	50	5.8	150	17.4	5.400	626.4	8432569986686	0.116
	M12 L60 k8 e23,91
M12 x 65	60698012X065	50	6.05	150	18.15	5.400	653.4	8432569986693	0.121
	M12 L65 k8 e23,91
M12 x 70	60698012X070	50	6.25	150	18.75	5.400	675	8432569986709	0.125
	M12 L70 k8 e23,91
M16 x 40	60698016X040	50	9.45	100	18.9	3.600	680.4	8432569986761	0.189
	M16 L40 k10 e29,56
M16 x 45	60698016X045	50	9.85	100	19.7	3.600	709.2	8432569986778	0.197
	M16 L45 k10 e29,56
M16 x 50	60698016X050	50	10.25	100	20.5	3.600	738	8432569986785	0.205
	M16 L50 k10 e29,56
M16 x 55	60698016X055	50	10.65	100	21.3	3.600	766.8	8432569986792	0.213
	M16 L55 k10 e29,56
M16 x 60	60698016X060	40	8.84	80	17.68	2.880	636.48	8432569986808	0.221
	M16 L60 k10 e29,56
M16 x 65	60698016X065	40	9.16	80	18.32	2.880	659.52	8432569986815	0.229
	M16 L65 k10 e29,56
M16 x 70	60698016X070	40	9.48	80	18.96	2.880	682.56	8432569986822	0.237
	M16 L70 k10 e29,56
M16 x 75	60698016X075	40	9.64	80	19.28	2.880	694.08	8432569986839	0.241
	M16 L75 k10 e29,56
M16 x 80	60698016X080	40	9.96	80	19.92	2.880	717.12	8432569986846	0.249
	M16 L80 k10 e29,56
M16 x 85	60698016X085	30	7.71	60	15.42	2.160	555.12	8432569986853	0.257
	M16 L85 k10 e29,56
M16 x 90	60698016X090	30	7.95	60	15.9	2.160	572.4	8432569986860	0.265
	M16 L90 k10 e29,56
M16 x 100	60698016X100	30	8.43	60	16.86	2.160	606.96	8432569986884	0.281
	M16 L100 k10 e29,56
	60698016X105	30		60		-		8432569986891	0.289

M16 x 110	60698016X110	30	8.91	60	17.82	2.160	641.52	8432569986907	0.297
	M16 L110 k10 e29,56
M16 x 120	60698016X120	30	9.39	60	18.78	2.160	676.08	8432569986921	0.313
	M16 L120 k10 e29,56
M16 x 130	60698016X130	30	9.87	60	19.74	2.160	710.64	8432569986945	0.329
	M16 L130 k10 e29,56
M16 x 140	60698016X140	25	8.625	50	17.25	1.800	621	8432569986952	0.345
	M16 L140 k10 e29,56
M16 x 150	60698016X150	25	9.025	50	18.05	1.800	649.8	8432569986969	0.361
	M16 L150 k10 e29,56
M20 x 50	60698020X050	30	9.9	60	19.8	2.160	712.8	8432569987003	0.33
	M20 L50 k13 e35,03
M20 x 55	60698020X055	30	10.2	60	20.4	2.160	734.4	8432569987010	0.34
	M20 L55 k13 e35,03
M20 x 60	60698020X060	30	10.8	60	21.6	2.160	777.6	8432569987027	0.36
	M20 L60 k13 e35,03
M20 x 65	60698020X065	25	9.25	50	18.5	1.800	666	8432569987034	0.37
	M20 L65 k13 e35,03
M20 x 70	60698020X070	25	9.5	50	19	1.800	684	8432569987041	0.38
	M20 L70 k13 e35,03
M20 x 75	60698020X075	25	9.75	50	19.5	1.800	702	8432569987058	0.39
	M20 L75 k13 e35,03
M20 x 80	60698020X080	25	10.25	50	20.5	1.800	738	8432569987065	0.41
	M20 L80 k13 e35,03
M20 x 85	60698020X085	25	10.5	50	21	1.800	756	8432569987072	0.42
	M20 L85 k13 e35,03
M20 x 90	60698020X090	25	10.5	50	21	1.800	756	8432569987089	0.42
	M20 L90 k13 e35,03
M20 x 100	60698020X100	20	9	40	18	1.440	648	8432569987102	0.45
	M20 L100 k13 e35,03
M20 x 110	60698020X110	20	9.4	40	18.8	1.440	676.8	8432569987126	0.47
	M20 L110 k13 e35,03
M20 x 120	60698020X120	20	10	40	20	1.440	720	8432569987140	0.5
	M20 L120 k13 e35,03
M20 x 130	60698020X130	20	10.4	40	20.8	1.440	748.8	8432569987164	0.52
	M20 L130 k13 e35,03
M20 x 140	60698020X140	15	8.25	30	16.5	1.080	594	8432569987188	0.55
	M20 L140 k13 e35,03
M20 x 150	60698020X150	15	8.55	30	17.1	1.080	615.6	8432569987201	0.57
	M20 L150 k13 e35,03
M20 x 160	60698020X160	15	9	30	18	1.080	648	8432569987218	0.6
	M20 L160 k13 e35,03
M20 x 170	60698020X170	15	9.3	30	18.6	1.080	669.6	8432569987232	0.62
	M20 L170 k13 e35,03
M22 x 50	60698022X050	20	8.6	40	17.2	1.440	619.2	8432569987270	0.43
	M22 L50 k14 e39,55
M22 x 55	60698022X055	20	8.8	40	17.6	1.440	633.6	8432569987287	0.44
	M22 L55 k14 e39,55
M22 x 60	60698022X060	20	9.2	40	18.4	1.440	662.4	8432569987294	0.46
	M22 L60 k14 e39,55
M22 x 65	60698022X065	20	9.4	40	18.8	1.440	676.8	8432569987300	0.47
	M22 L65 k14 e39,55
M22 x 70	60698022X070	20	9.7	40	19.4	1.440	698.4	8432569987317	0.485
	M22 L70 k14 e39,55
M22 x 75	60698022X075	20	10	40	20	1.440	720	8432569987324	0.5
	M22 L75 k14 e39,55
M22 x 80	60698022X080	20	10.3	40	20.6	1.440	741.6	8432569987331	0.515
	M22 L80 k14 e39,55
M22 x 90	60698022X090	20	10.78	40	21.56	1.440	776.16	8432569987355	0.539
	M22 L90 k14 e39,55
M22 x 100	60698022X100	15	8.535	30	17.07	1.080	614.52	8432569987379	0.569
	M22 L100 k14 e39,55
	60698022X105	15	8.76	30	17.52	1.080	630.72	8432569987386	0.584

M22 x 110	60698022X110	15	8.985	30	17.97	1.080	646.92	8432569987393	0.599
	M22 L110 k14 e39,55
M22 x 115	60698022X115	15	9.21	30	18.42	1.080	663.12	8432569987409	0.614
	M22 L115 k14 e39,55
M22 x 120	60698022X120	15	9.435	30	18.87	1.080	679.32	8432569987416	0.629
	M22 L120 k14 e39,55
M22 x 130	60698022X130	15	9.885	30	19.77	1.080	711.72	8432569987430	0.659
	M22 L130 k14 e39,55
M22 x 135	60698022X135	15	10.11	30	20.22	1.080	727.92	8432569987447	0.674
	M22 L135 k14 e39,55
M22 x 140	60698022X140	15	10.335	30	20.67	1.080	744.12	8432569987454	0.689
	M22 L140 k14 e39,55
M22 x 150	60698022X150	12	8.628	24	17.256	864	621.216	8432569987478	0.719
	M22 L150 k14 e39,55
M24 x 60	60698024X060	15	9.15	30	18.3	1.080	658.8	8432569987546	0.61
	M24 L60 k15 e45,2
M24 x 65	60698024X065	15	9.36	30	18.72	1.080	673.92	8432569987553	0.624
	M24 L65 k15 e45,2
M24 x 70	60698024X070	15	9.63	30	19.26	1.080	693.36	8432569987560	0.642
	M24 L70 k15 e45,2
M24 x 75	60698024X075	15	9.9	30	19.8	1.080	712.8	8432569987577	0.66
	M24 L75 k15 e45,2
M24 x 80	60698024X080	15	10.17	30	20.34	1.080	732.24	8432569987584	0.678
	M24 L80 k15 e45,2
M24 x 85	60698024X085	15	10.44	30	20.88	1.080	751.68	8432569987591	0.696
	M24 L85 k15 e45,2
M24 x 90	60698024X090	15	10.53	30	21.06	1.080	758.16	8432569987607	0.702
	M24 L90 k15 e45,2
M24 x 100	60698024X100	12	8.856	24	17.712	864	637.632	8432569987621	0.738
	M24 L100 k15 e45,2
M24 x 110	60698024X110	12	9.288	24	18.576	864	668.736	8432569987645	0.774
	M24 L110 k15 e45,2
M24 x 120	60698024X120	12	9.72	24	19.44	864	699.84	8432569987669	0.81
	M24 L120 k15 e45,2
M24 x 130	60698024X130	12	10.152	24	20.304	864	730.944	8432569987683	0.846
	M24 L130 k15 e45,2
M24 x 140	60698024X140	12	10.584	24	21.168	864	762.048	8432569987706	0.882
	M24 L140 k15 e45,2
M24 x 150	60698024X150	10	9.18	20	18.36	720	660.96	8432569987720	0.918
	M24 L150 k15 e45,2
M24 x 160	60698024X160	10	9.53	20	19.06	720	686.16	8432569987744	0.953
	M24 L160 k15 e45,2
M24 x 170	60698024X170	10	9.89	20	19.78	720	712.08	8432569987751	0.989
	M24 L170 k15 e45,2
M24 x 180	60698024X180	10	10.25	20	20.5	720	738	8432569987768	1.025
	M24 L180 k15 e45,2
M27 x 75	60698027X075	10	9.1	20	18.2	720	655.2	8432569987836	0.91
	M27 L75 k17 e50,85
M27 x 80	60698027X080	10	9.4	20	18.8	720	676.8	8432569987843	0.94
	M27 L80 k17 e50,85
M27 x 90	60698027X090	10	9.8	20	19.6	720	705.6	8432569987867	0.98
	M27 L90 k17 e50,85
M27 x 100	60698027X100	10	10.2	20	20.4	720	734.4	8432569987881	1.02
	M27 L100 k17 e50,85
M27 x 110	60698027X110	10	10.6	20	21.2	720	763.2	8432569987904	1.06
	M27 L110 k17 e50,85
M27 x 120	60698027X120	8	8.8	16	17.6	576	633.6	8432569987928	1.1
	M27 L120 k17 e50,85
M27 x 130	60698027X130	8	9.12	16	18.24	576	656.64	8432569987942	1.14
	M27 L130 k17 e50,85
M27 x 140	60698027X140	8	9.52	16	19.04	576	685.44	8432569987966	1.19
	M27 L140 k17 e50,85
M27 x 150	60698027X150	8	9.84	16	19.68	576	708.48	8432569987980	1.23
	M27 L150 k17 e50,85
M27 x 160	60698027X160	8	10.16	16	20.32	576	731.52	8432569988000	1.27
	M27 L160 k17 e50,85
M30 x 80	60698030X080	8	9.576	16	19.152	576	689.472	8432569988093	1.197
	M30 L80 k19 e55,37
M30 x 90	60698030X090	8	10.024	16	20.048	576	721.728	8432569988116	1.253
	M30 L90 k19 e55,37
M30 x 100	60698030X100	6	4.992	12	9.984	432	359.424	8432569988130	0.832
	M30 L100 k19 e55,37
M30 x 110	60698030X110	6	8.172	12	16.344	432	588.384	8432569988154	1.362
	M30 L110 k19 e55,37
M30 x 120	60698030X120	6	8.508	12	17.016	432	612.576	8432569988178	1.418
	M30 L120 k19 e55,37
M30 x 130	60698030X130	6	8.844	12	17.688	432	636.768	8432569988192	1.474
	M30 L130 k19 e55,37
M30 x 140	60698030X140	6	9.174	12	18.348	432	660.528	8432569988215	1.529
	M30 L140 k19 e55,37
M30 x 150	60698030X150	6	9.504	12	19.008	432	684.288	8432569988239	1.584
	M30 L150 k19 e55,37
M30 x 160	60698030X160	6	9.852	12	19.704	432	709.344	8432569988246	1.642
	M30 L160 k19 e55,37
M30 x 170	60698030X170	6	10.176	12	20.352	432	732.672	8432569988253	1.696
	M30 L170 k19 e55,37
M30 x 180	60698030X180	5	8.79	10	17.58	360	632.88	8432569988260	1.758
	M30 L180 k19 e55,37
M30 x 200	60698030X200	5	9.35	10	18.7	360	673.2	8432569988284	1.87
	M30 L200 k19 e55,37
M36 x 100	60698036X100	5	10.55	10	21.1	360	759.6	8432569988383	2.11
	M36 L100 k23 e66,44
M36 x 110	60698036X110	4	8.76	8	17.52	288	630.72	8432569988390	2.19
	M36 L110 k23 e66,44
M36 x 120	60698036X120	4	9.08	8	18.16	288	653.76	8432569988406	2.27
	M36 L120 k23 e66,44
M36 x 130	60698036X130	4	9.4	8	18.8	288	676.8	8432569988413	2.35
	M36 L130 k23 e66,44
M36 x 140	60698036X140	4	9.72	8	19.44	288	699.84	8432569988420	2.43
	M36 L140 k23 e66,44
M36 x 150	60698036X150	4	10.04	8	20.08	288	722.88	8432569988437	2.51
	M36 L150 k23 e66,44
M36 x 160	60698036X160	4	10.36	8	20.72	288	745.92	8432569988451	2.59
	M36 L160 k23 e66,44
M36 x 170	60698036X170	3	8.01	6	16.02	216	576.72	8432569988468	2.67
	M36 L170 k23 e66,44
M36 x 180	60698036X180	3	8.25	6	16.5	216	594	8432569988475	2.75
	M36 L180 k23 e66,44
M36 x 190	60698036X190	3	8.49	6	16.98	216	611.28	8432569988499	2.83
	M36 L190 k23 e66,44
M36 x 200	60698036X200	3	8.73	6	17.46	216	628.56	8432569988505	2.91
	M36 L200 k23 e66,44

EN 14399-4 10.9 HV SET HDG

Set of high-strength structural bolts for preloading, HR system with CE marking, hot-dip galvanised finish and quality 10.9
