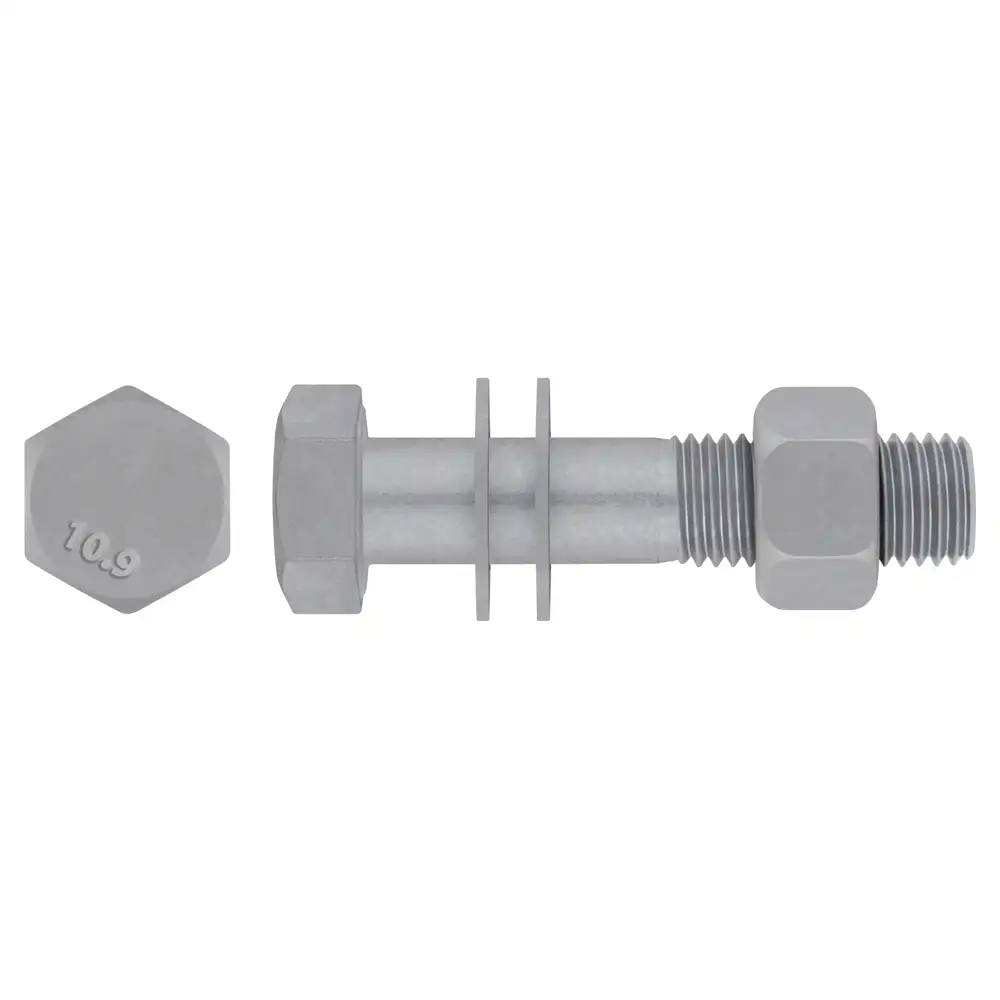

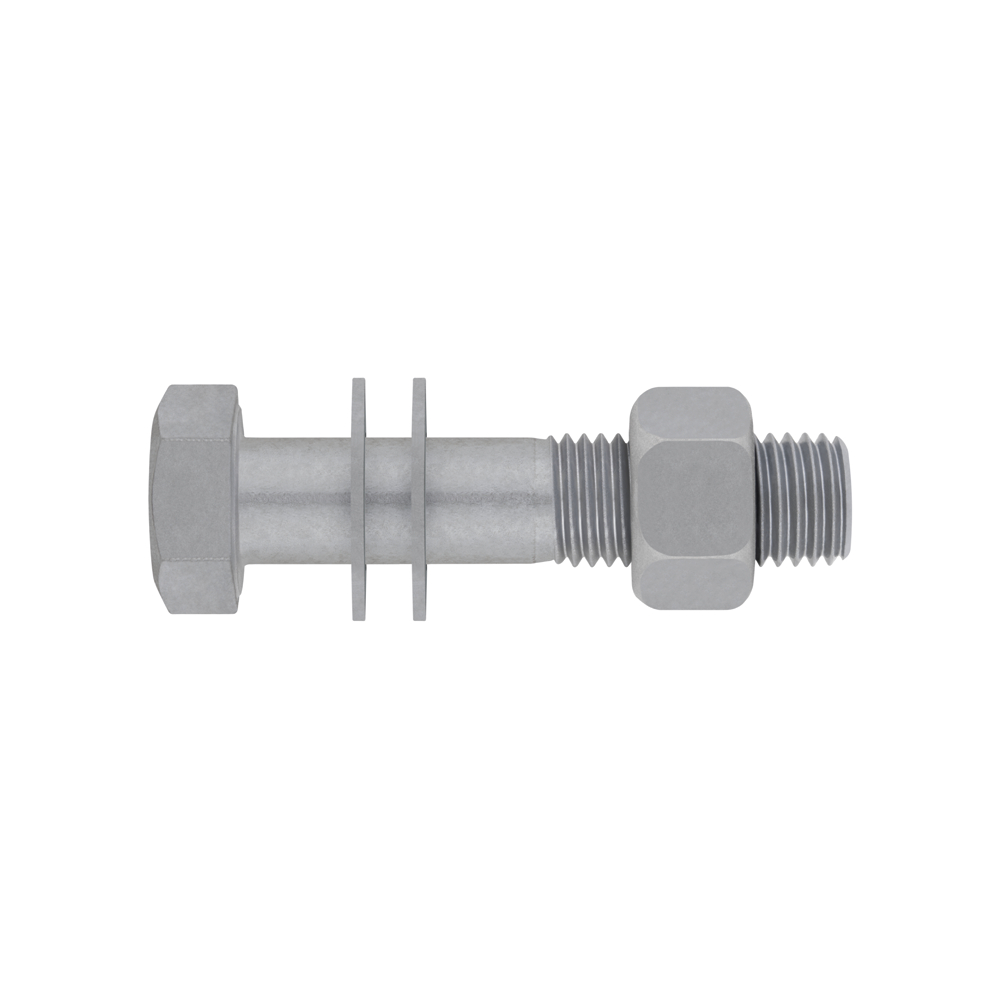

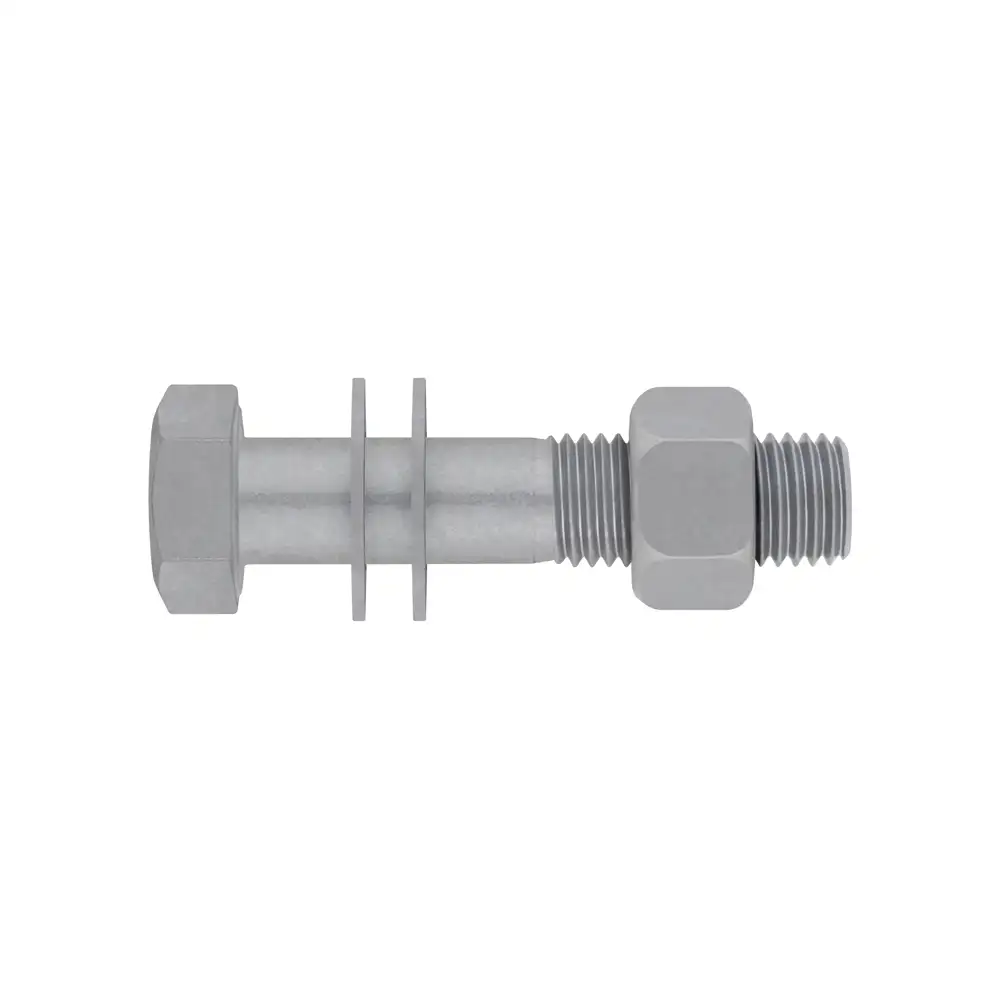

EN 14399-4 10.9 HV SET HDG

Set of high-strength structural bolts for preloading, HR system with CE marking, hot-dip galvanised finish and quality 10.9

Ref.: 606983

This is a set of high-strength structural bolts for preloading with HV system, CE marked and class K1. It consists of a half-thread hexagonal bolt, hexagonal nut and two flat washers, manufactured in quality 10.9, oversized and hot-dip galvanised. It is used in high-strength, pre-loaded metal structural connections in the construction industry.

Size	Code	Pcs. Box	KG ESTUCHE	PCS. Master	KG MÁSTER	Uds. Palé	KG PALÉ	EAN Box	Weight (Pc/Kg)
M12 x 30	60698312X030	100	9.2	200	18.4	7.200	662.4	8432569990645	0.092
	M12 L30 k8 e23,91
M12 x 35	60698312X035	100	9.6	200	19.2	7.200	691.2	8432569990652	0.096
	M12 L35 k8 e23,91
M12 x 40	60698312X040	100	10	200	20	7.200	720	8432569990669	0.1
	M12 L40 k8 e23,91
M12 x 45	60698312X045	50	5.15	150	15.45	5.400	556.2	8432569990676	0.103
	M12 L45 k8 e23,91
M12 x 50	60698312X050	50	5.4	150	16.2	5.400	583.2	8432569990683	0.108
	M12 L50 k8 e23,91
M12 x 55	60698312X055	50	5.6	150	16.8	5.400	604.8	8432569990690	0.112
	M12 L55 k8 e23,91
M12 x 60	60698312X060	50	5.8	150	17.4	5.400	626.4	8432569990706	0.116
	M12 L60 k8 e23,91
M16 x 45	60698316X045	50	9.85	100	19.7	3.600	709.2	8432569990799	0.197
	M16 L45 k10 e29,56
M16 x 50	60698316X050	50	10.25	100	20.5	3.600	738	8432569990805	0.205
	M16 L50 k10 e29,56
M16 x 55	60698316X055	50	10.65	100	21.3	3.600	766.8	8432569990812	0.213
	M16 L55 k10 e29,56
M16 x 60	60698316X060	40	8.84	80	17.68	2.880	636.48	8432569990829	0.221
	M16 L60 k10 e29,56
M16 x 65	60698316X065	40	9.16	80	18.32	2.880	659.52	8432569990836	0.229
	M16 L65 k10 e29,56
M16 x 70	60698316X070	40	9.48	80	18.96	2.880	682.56	8432569990843	0.237
	M16 L70 k10 e29,56
M16 x 75	60698316X075	40	9.64	80	19.28	2.880	694.08	8432569990850	0.241
	M16 L75 k10 e29,56
M16 x 80	60698316X080	40	9.96	80	19.92	2.880	717.12	8432569990867	0.249
	M16 L80 k10 e29,56
M16 x 85	60698316X085	30	7.71	60	15.42	2.160	555.12	8432569990874	0.257
	M16 L85 k10 e29,56
M16 x 90	60698316X090	30	7.95	60	15.9	2.160	572.4	8432569990881	0.265
	M16 L90 k10 e29,56
M16 x 100	60698316X100	30	8.43	60	16.86	2.160	606.96	8432569990904	0.281
	M16 L100 k10 e29,56
M16 x 110	60698316X110	30	8.91	60	17.82	2.160	641.52	8432569990928	0.297
	M16 L110 k10 e29,56
M16 x 120	60698316X120	30	9.39	60	18.78	2.160	676.08	8432569990942	0.313
	M16 L120 k10 e29,56
M16 x 130	60698316X130	30	9.87	60	19.74	2.160	710.64	8432569990966	0.329
	M16 L130 k10 e29,56
M16 x 150	60698316X150	25	9.025	50	18.05	1.800	649.8	8432569990980	0.361
	M16 L150 k10 e29,56
M20 x 45	60698320X045	30	9.6	60	19.2	2.160	691.2	8432569991017	0.32
	M20 L45 k13 e35,03
M20 x 50	60698320X050	30	9.9	60	19.8	2.160	712.8	8432569991024	0.33
	M20 L50 k13 e35,03
M20 x 55	60698320X055	30	10.2	60	20.4	2.160	734.4	8432569991031	0.34
	M20 L55 k13 e35,03
M20 x 60	60698320X060	30	10.8	60	21.6	2.160	777.6	8432569991048	0.36
	M20 L60 k13 e35,03
M20 x 65	60698320X065	25	9.25	50	18.5	1.800	666	8432569991055	0.37
	M20 L65 k13 e35,03
M20 x 70	60698320X070	25	9.5	50	19	1.800	684	8432569991062	0.38
	M20 L70 k13 e35,03
M20 x 75	60698320X075	25	9.75	50	19.5	1.800	702	8432569991079	0.39
	M20 L75 k13 e35,03
M20 x 80	60698320X080	25	10.25	50	20.5	1.800	738	8432569991086	0.41
	M20 L80 k13 e35,03
M20 x 90	60698320X090	25	10.5	50	21	1.800	756	8432569991109	0.42
	M20 L90 k13 e35,03
M20 x 95	60698320X095	20	8.8	40	17.6	1.440	633.6	8432569991116	0.44
	M20 L95 k13 e35,03
M20 x 100	60698320X100	20	9	40	18	1.440	648	8432569991123	0.45
	M20 L100 k13 e35,03
M20 x 110	60698320X110	20	9.4	40	18.8	1.440	676.8	8432569991147	0.47
	M20 L110 k13 e35,03
M20 x 120	60698320X120	20	10	40	20	1.440	720	8432569991161	0.5
	M20 L120 k13 e35,03
M20 x 130	60698320X130	20	10.4	40	20.8	1.440	748.8	8432569991185	0.52
	M20 L130 k13 e35,03
M20 x 140	60698320X140	15	8.25	30	16.5	1.080	594	8432569991208	0.55
	M20 L140 k13 e35,03
M20 x 150	60698320X150	15	8.55	30	17.1	1.080	615.6	8432569991222	0.57
	M20 L150 k13 e35,03
M20 x 160	60698320X160	15	9	30	18	1.080	648	8432569991239	0.6
	M20 L160 k13 e35,03
M20 x 170	60698320X170	15	9.3	30	18.6	1.080	669.6	8432569991253	0.62
	M20 L170 k13 e35,03
M20 x 180	60698320X180	15	9.75	30	19.5	1.080	702	8432569991260	0.65
	M20 L180 k13 e35,03
M20 x 200	60698320X200	15	10.5	30	21	1.080	756	8432569991277	0.7
	M20 L200 k13 e35,03
M22 x 55	60698322X055	20	8.8	40	17.6	1.440	633.6	8432569991307	0.44
	M22 L55 k14 e39,55
M22 x 60	60698322X060	20	9.2	40	18.4	1.440	662.4	8432569991314	0.46
	M22 L60 k14 e39,55
M22 x 70	60698322X070	20	9.7	40	19.4	1.440	698.4	8432569991338	0.485
	M22 L70 k14 e39,55
M22 x 80	60698322X080	20	10.3	40	20.6	1.440	741.6	8432569991352	0.515
	M22 L80 k14 e39,55
M22 x 90	60698322X090	20	10.78	40	21.56	1.440	776.16	8432569991376	0.539
	M22 L90 k14 e39,55
M22 x 110	60698322X110	15	8.985	30	17.97	1.080	646.92	8432569991413	0.599
	M22 L110 k14 e39,55
M22 x 120	60698322X120	15	9.435	30	18.87	1.080	679.32	8432569991437	0.629
	M22 L120 k14 e39,55
M22 x 130	60698322X130	15	9.885	30	19.77	1.080	711.72	8432569991451	0.659
	M22 L130 k14 e39,55
M22 x 140	60698322X140	15	10.335	30	20.67	1.080	744.12	8432569991475	0.689
	M22 L140 k14 e39,55
M22 x 150	60698322X150	12	8.628	24	17.256	864	621.216	8432569991499	0.719
	M22 L150 k14 e39,55
M22 x 160	60698322X160	12	8.988	24	17.976	864	647.136	8432569991512	0.749
	M22 L160 k14 e39,55
M22 x 180	60698322X180	12	9.708	24	19.416	864	698.976	8432569991529	0.809
	M22 L180 k14 e39,55
M22 x 200	60698322X200	12	10.428	24	20.856	864	750.816	8432569991536	0.869
	M22 L200 k14 e39,55
M24 x 65	60698324X065	15	9.36	30	18.72	1.080	673.92	8432569991574	0.624
	M24 L65 k15 e45,2
M24 x 70	60698324X070	15	9.63	30	19.26	1.080	693.36	8432569991581	0.642
	M24 L70 k15 e45,2
M24 x 75	60698324X075	15	9.9	30	19.8	1.080	712.8	8432569991598	0.66
	M24 L75 k15 e45,2
M24 x 80	60698324X080	15	10.17	30	20.34	1.080	732.24	8432569991604	0.678
	M24 L80 k15 e45,2
M24 x 85	60698324X085	15	10.44	30	20.88	1.080	751.68	8432569991611	0.696
	M24 L85 k15 e45,2
M24 x 90	60698324X090	15	10.53	30	21.06	1.080	758.16	8432569991628	0.702
	M24 L90 k15 e45,2
M24 x 100	60698324X100	12	8.856	24	17.712	864	637.632	8432569991642	0.738
	M24 L100 k15 e45,2
M24 x 105	60698324X105	12	9.072	24	18.144	864	653.184	8432569991659	0.756
	M24 L105 k15 e45,2
M24 x 120	60698324X120	12	9.72	24	19.44	864	699.84	8432569991680	0.81
	M24 L120 k15 e45,2
M24 x 130	60698324X130	12	10.152	24	20.304	864	730.944	8432569991703	0.846
	M24 L130 k15 e45,2
M24 x 140	60698324X140	12	10.584	24	21.168	864	762.048	8432569991727	0.882
	M24 L140 k15 e45,2
M24 x 150	60698324X150	10	9.18	20	18.36	720	660.96	8432569991741	0.918
	M24 L150 k15 e45,2
M24 x 160	60698324X160	10	9.53	20	19.06	720	686.16	8432569991765	0.953
	M24 L160 k15 e45,2
M24 x 170	60698324X170	10	9.89	20	19.78	720	712.08	8432569991772	0.989
	M24 L170 k15 e45,2
M24 x 180	60698324X180	10	10.25	20	20.5	720	738	8432569991789	1.025
	M24 L180 k15 e45,2
M24 x 190	60698324X190	10	10.61	20	21.22	720	763.92	8432569991796	1.061
	M24 L190 k15 e45,2
M24 x 200	60698324X200	8	8.776	16	17.552	576	631.872	8432569991802	1.097
	M24 L200 k15 e45,2
M27 x 70	60698327X070	10	8.9	20	17.8	720	640.8	8432569991840	0.89
	M27 L70 k17 e50,85
M27 x 75	60698327X075	10	9.1	20	18.2	720	655.2	8432569991857	0.91
	M27 L75 k17 e50,85
M27 x 80	60698327X080	10	9.4	20	18.8	720	676.8	8432569991864	0.94
	M27 L80 k17 e50,85
M27 x 85	60698327X085	10	9.6	20	19.2	720	691.2	8432569991871	0.96
	M27 L85 k17 e50,85
M27 x 90	60698327X090	10	9.8	20	19.6	720	705.6	8432569991888	0.98
	M27 L90 k17 e50,85
M27 x 95	60698327X095	10	10	20	20	720	720	8432569991895	1
	M27 L95 k17 e50,85
M27 x 100	60698327X100	10	10.2	20	20.4	720	734.4	8432569991901	1.02
	M27 L100 k17 e50,85
M27 x 110	60698327X110	10	10.6	20	21.2	720	763.2	8432569991925	1.06
	M27 L110 k17 e50,85
M27 x 140	60698327X140	8	9.52	16	19.04	576	685.44	8432569991987	1.19
	M27 L140 k17 e50,85
M27 x 150	60698327X150	8	9.84	16	19.68	576	708.48	8432569992007	1.23
	M27 L150 k17 e50,85
M27 x 160	60698327X160	8	10.16	16	20.32	576	731.52	8432569992021	1.27
	M27 L160 k17 e50,85
M27 x 170	60698327X170	6	7.86	12	15.72	432	565.92	8432569992038	1.31
	M27 L170 k17 e50,85
M27 x 180	60698327X180	6	8.1	12	16.2	432	583.2	8432569992045	1.35
	M27 L180 k17 e50,85
M27 x 190	60698327X190	6	8.34	12	16.68	432	600.48	8432569992052	1.39
	M27 L190 k17 e50,85
M27 x 200	60698327X200	6	8.58	12	17.16	432	617.76	8432569992069	1.43
	M27 L200 k17 e50,85
M30 x 80	60698330X080	8	9.576	16	19.152	576	689.472	8432569992113	1.197
	M30 L80 k19 e55,37
M30 x 90	60698330X090	8	10.024	16	20.048	576	721.728	8432569992137	1.253
	M30 L90 k19 e55,37
M30 x 95	60698330X095	8	10.248	16	20.496	576	737.856	8432569992144	1.281
	M30 L95 k19 e55,37
M30 x 100	60698330X100	6	4.992	12	9.984	432	359.424	8432569992151	0.832
	M30 L100 k19 e55,37
M30 x 110	60698330X110	6	8.172	12	16.344	432	588.384	8432569992175	1.362
	M30 L110 k19 e55,37
M30 x 120	60698330X120	6	8.508	12	17.016	432	612.576	8432569992199	1.418
	M30 L120 k19 e55,37
M30 x 130	60698330X130	6	8.844	12	17.688	432	636.768	8432569992212	1.474
	M30 L130 k19 e55,37
M30 x 140	60698330X140	6	9.174	12	18.348	432	660.528	8432569992236	1.529
	M30 L140 k19 e55,37
M30 x 150	60698330X150	6	9.504	12	19.008	432	684.288	8432569992250	1.584
	M30 L150 k19 e55,37
M30 x 160	60698330X160	6	9.852	12	19.704	432	709.344	8432569992267	1.642
	M30 L160 k19 e55,37
M30 x 170	60698330X170	6	10.176	12	20.352	432	732.672	8432569992274	1.696
	M30 L170 k19 e55,37
M30 x 180	60698330X180	5	8.79	10	17.58	360	632.88	8432569992281	1.758
	M30 L180 k19 e55,37
M30 x 190	60698330X190	5	9.07	10	18.14	360	653.04	8432569992298	1.814
	M30 L190 k19 e55,37
M30 x 200	60698330X200	5	9.35	10	18.7	360	673.2	8432569992304	1.87
	M30 L200 k19 e55,37
M36 x 100	60698336X100	4	8.44	8	16.88	288	607.68	8432569992403	2.11
	M36 L100 k23 e66,44
M36 x 110	60698336X110	4	8.76	8	17.52	288	630.72	8432569992410	2.19
	M36 L110 k23 e66,44
M36 x 120	60698336X120	4	9.08	8	18.16	288	653.76	8432569992427	2.27
	M36 L120 k23 e66,44
M36 x 130	60698336X130	4	9.4	8	18.8	288	676.8	8432569992434	2.35
	M36 L130 k23 e66,44
M36 x 140	60698336X140	4	9.72	8	19.44	288	699.84	8432569992441	2.43
	M36 L140 k23 e66,44
M36 x 150	60698336X150	4	10.04	8	20.08	288	722.88	8432569992458	2.51
	M36 L150 k23 e66,44
M36 x 160	60698336X160	4	10.36	8	20.72	288	745.92	8432569992472	2.59
	M36 L160 k23 e66,44
M36 x 170	60698336X170	3	8.01	6	16.02	216	576.72	8432569992489	2.67
	M36 L170 k23 e66,44
M36 x 180	60698336X180	3	8.25	6	16.5	216	594	8432569992496	2.75
	M36 L180 k23 e66,44
M36 x 190	60698336X190	3	8.49	6	16.98	216	611.28	8432569992519	2.83
	M36 L190 k23 e66,44
