EN 15048 8.8 ZP – SET 4017+4032

(ISO 4017 ZN + ISO 4032 ZN) Non preloaded structural bolting assemblies with CE-certified, zinc plated finish and quality 8.8

Ref.: 606811

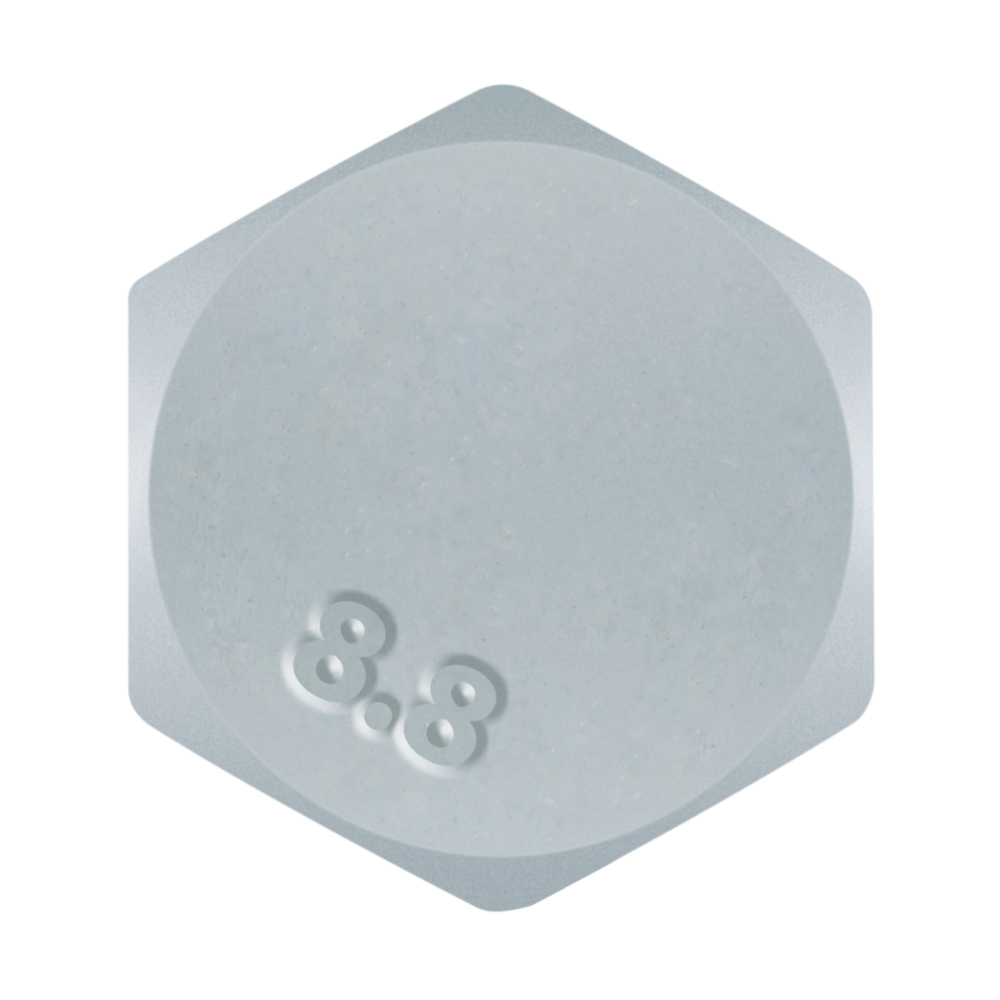

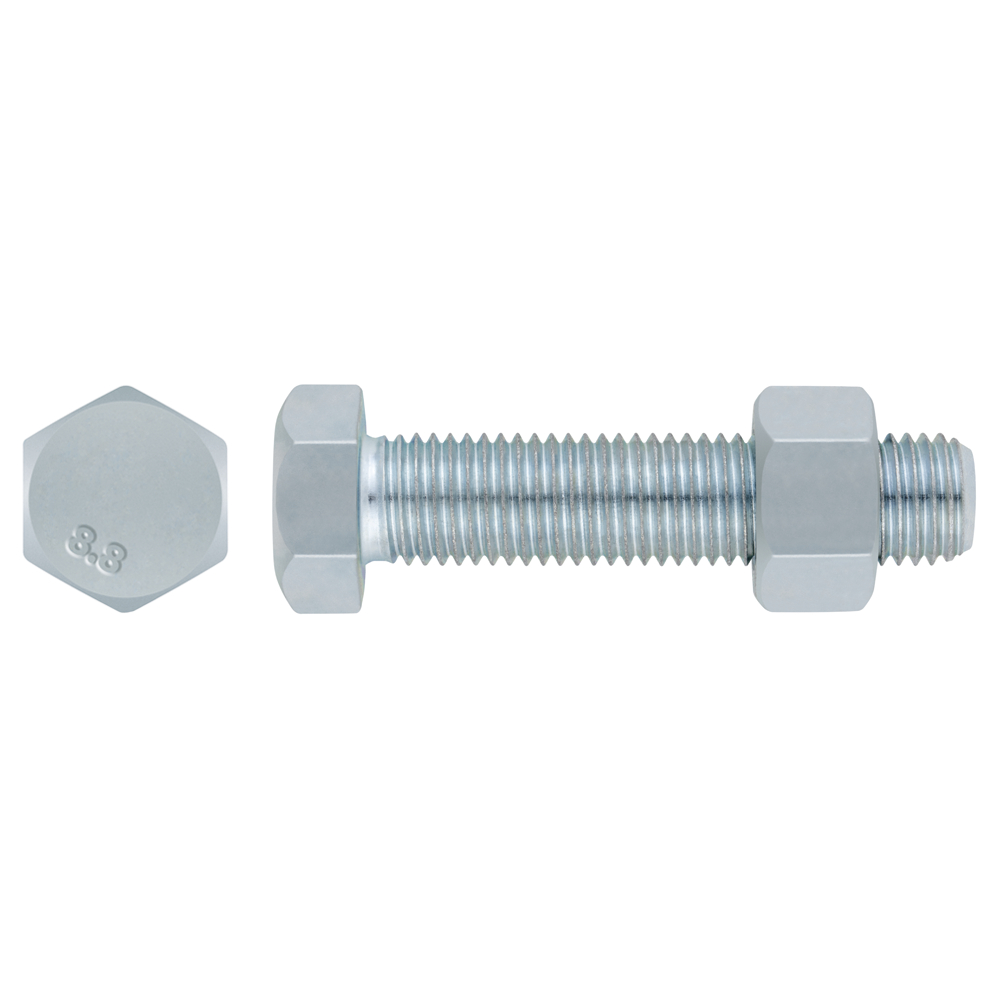

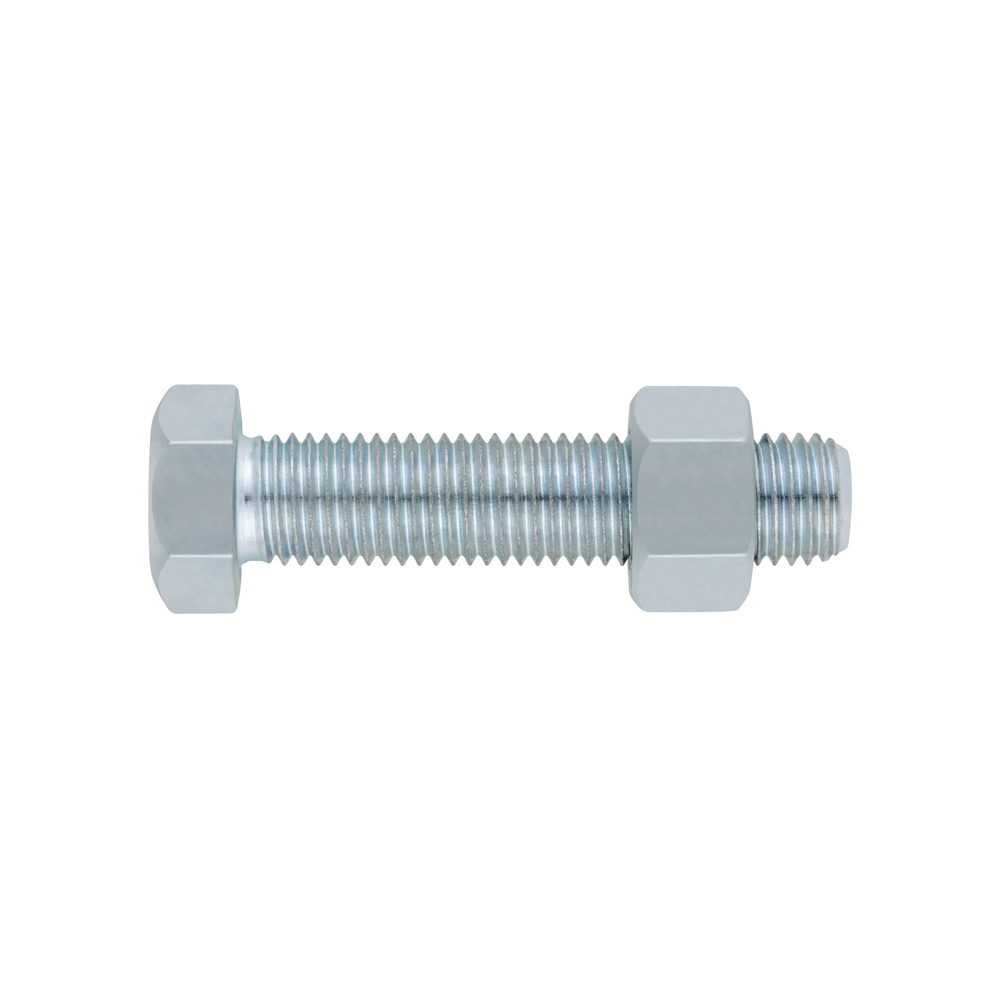

Trata-se de um conjunto de fixadores estruturais para juntas não pré-carregadas com marcação CE. É composto por um parafuso hexagonal de rosca completa ISO 4017 e uma porca ISO 4032, ambos fabricados na qualidade 8.8 e zincados. É utilizado em estruturas metálicas tensionadas por cisalhamento no sector da construção.

Size	Code	Pcs. Box	KG ESTUCHE	PCS. Master	KG MÁSTER	Uds. Palé	KG PALÉ	EAN Box	Weight (Pc/Kg)
M12 x 25	60681112X025	100	5.01	300	15.03	10.800	541.08	8432570046362	0.0501

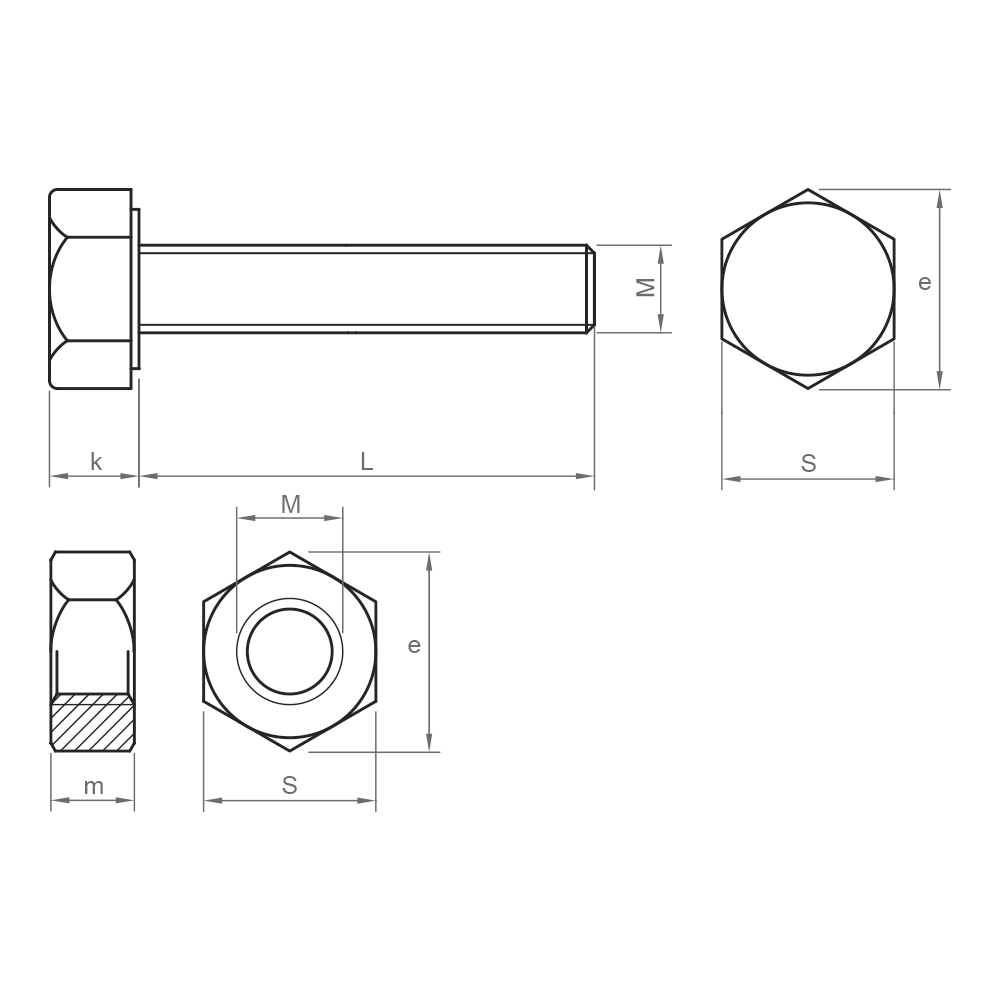

	M12 L25 k7,5 S18
M12 x 30	60681112X030	100	5.37	300	16.11	10.800	579.96	8432570046379	0.0537
	M12 L30 k7,5 S18
M12 x 35	60681112X035	100	5.73	300	17.19	10.800	618.84	8432570046386	0.0573
	M12 L35 k7,5 S18
M12 x 40	60681112X040	100	6.1	300	18.3	10.800	658.8	8432570046393	0.061
	M12 L40 k7,5 S18
M12 x 45	60681112X045	100	5.93	300	17.79	10.800	640.44	8432570051540	0.0593
	M12 L45 k7,5 S18
M12 x 50	60681112X050	50	3.4	200	13.6	7.200	489.6	8432570046409	0.068
	M12 L50 k7,5 S18
M12 x 60	60681112X060	50	3.71	200	14.84	7.200	534.24	8432570046355	0.0742
	M12 L60 k7,5 S18
M12 x 80	60681112X080	50	3.71	150	11.13	5.400	400.68	8432570218035	0.0742
	M12 L80 k7,5
M14 x 30	60681114X030	50	4.095	200	16.38	7.200	589.68	8432570046416	0.0819
	M14 L30 k8,8 a6 S21
M14 x 35	60681114X035	50	4.345	200	17.38	7.200	625.68	8432570046423	0.0869
	M14 L35 k8,8 a6 S21
M14 x 40	60681114X040	50	4.595	200	18.38	7.200	661.68	8432570046430	0.0919
	M14 L40 k8,8 a6 S21
M14 x 45	60681114X045	50	4.845	150	14.535	5.400	523.26	8432570046447	0.0969
	M14 L45 k8,8 a6 S21
M14 x 50	60681114X050	50	5.145	150	15.435	5.400	555.66	8432570094073	0.1029
	M14 L50 k8,8 a6 S21
M16 x 30	60681116X030	50	5.645	200	22.58	7.200	812.88	8432570046454	0.1129
	M16 L30 k10 a6 S24
M16 x 35	60681116X035	50	5.975	150	17.925	5.400	645.3	8432570046461	0.1195
	M16 L35 k10 a6 S24
M16 x 40	60681116X040	50	6.31	150	18.93	5.400	681.48	8432570046478	0.1262
	M16 L40 k10 a6 S24
M16 x 45	60681116X045	50	6.655	150	19.965	5.400	718.74	8432570046485	0.1331
	M16 L45 k10 a6 S24
M16 x 50	60681116X050	50	6.95	150	20.85	5.400	750.6	8432570046492	0.139
	M16 L50 k10 a6 S24
M16 x 55	60681116X055	50	7.75	150	23.25	5.400	837	8432570051557	0.155
	M16 L55 k10 a6 S24
M16 x 60	60681116X060	25	3.825	100	15.3	3.600	550.8	8432570046508	0.153
	M16 L60 k10 a6 S24
M16 x 65	60681116X065	25	4.175	100	16.7	3.600	601.2	8432570226894	0.167
	M16 L65 k10 a6
M16 x 70	60681116X070	25	4.15	100	16.6	3.600	597.6	8432570046515	0.166
	M16 L70 k10 a6 S24
M16 x 80	60681116X080	25	4.5	75	13.5	2.700	486	8432570046522	0.18
	M16 L80 k10 a6 S24
M20 x 40	60681120X040	25	5.6	75	16.8	2.700	604.8	8432570046553	0.224
	M20 L40 k12,5 a7,5 S30
M20 x 50	60681120X050	25	6.125	75	18.375	2.700	661.5	8432570046560	0.245
	M20 L50 k12,5 a7,5 S30
M20 x 60	60681120X060	25	6.625	75	19.875	2.700	715.5	8432570046577	0.265
	M20 L60 k12,5 a7,5 S30
M20 x 70	60681120X070	25	7.15	50	14.3	1.800	514.8	8432570046584	0.286
	M20 L70 k12,5 a7,5 S30
M20 x 80	60681120X080	25	7.675	50	15.35	1.800	552.6	8432570046591	0.307
	M20 L80 k12,5 a7,5 S30
M20 x 90	60681120X090	25	8.175	50	16.35	1.800	588.6	8432570046607	0.327
	M20 L90 k12,5 a7,5 S30
M20 x 100	60681120X100	25	8.175	50	16.35	1.800	588.6	8432570218042	0.327
	M20 L100 k12,5 a7,5
M24 x 60	60681124X060	15	6.24	45	18.72	1.620	673.92	8432570046614	0.416
	M24 L60 k15 a9 S36
M24 x 70	60681124X070	20	8.92	40	17.84	1.440	642.24	8432570046621	0.446
	M24 L70 k15 a9 S36
M24 x 80	60681124X080	20	9.5	40	19	1.440	684	8432570046638	0.475
	M24 L80 k15 a9 S36
M24 x 90	60681124X090	10	5.05	30	15.15	1.080	545.4	8432570046645	0.505
	M24 L90 k15 a9 S36
M24 x 100	60681124X100	10	5.05	30	15.15	1.080	545.4	8432570046652	0.505
	M24 L100 k15 a9 S36

EN 15048 8.8 ZP – SET 4017+4032

(ISO 4017 ZN + ISO 4032 ZN) Non preloaded structural bolting assemblies with CE-certified, zinc plated finish and quality 8.8
