Threaded rods steel 8.8

DIN 975 8.8 HDG

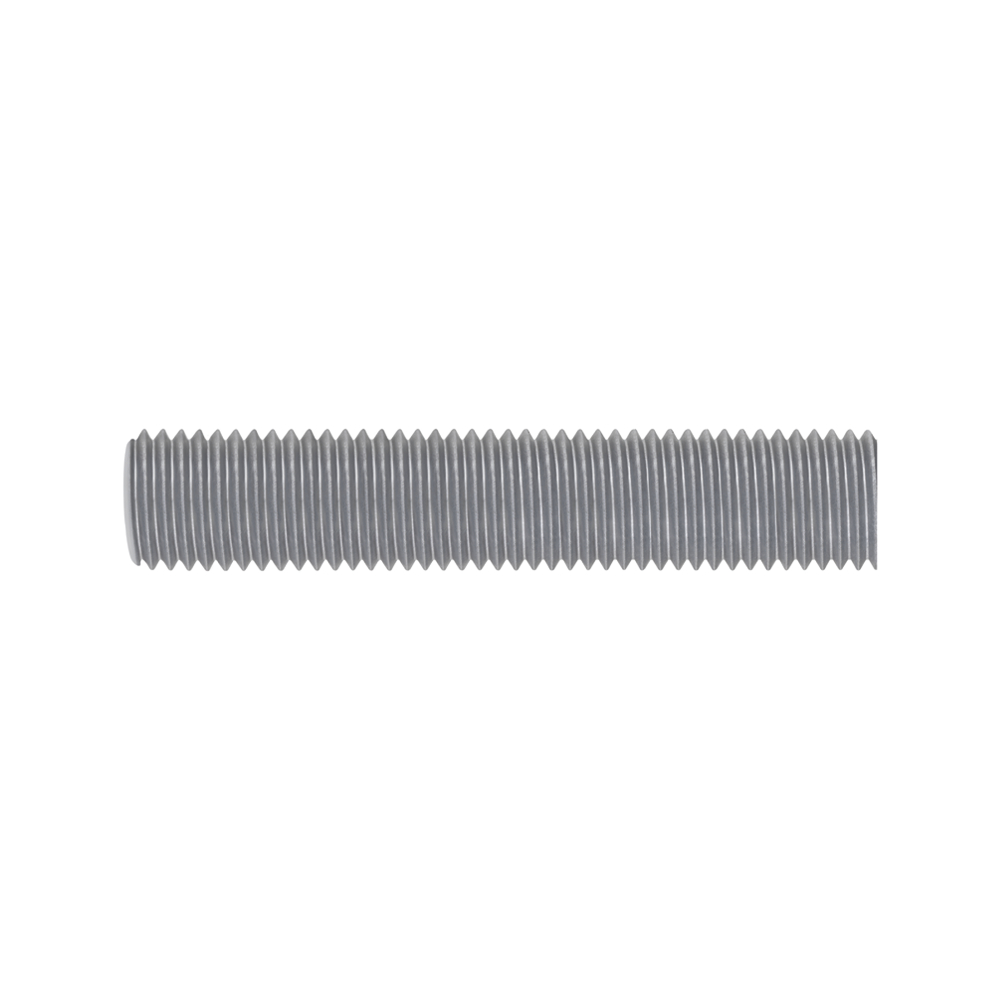

Threaded rod 1 meter ISO thread 1 in hot-dip galvanized finish and 8.8 quality

Ref.: 680059
It is a threaded rod with ISO thread, hot-dip galvanised (HDG) and manufactured in quality 8.8. Its continuous thread design with flat bases allows a secure fit in load and tension.
Size Code Pcs. Box KG ESTUCHE PCS. Master KG MÁSTER Uds. Palé KG PALÉ EAN Box Weight (Pc/Kg) Technical Info.
M8 68005908 50 15.95 - 0 2.850 909.15 8432569775167 0.319
  • M8
M10 68005910 25 12.5 - 0 1.800 900 8432569775174 0.5
  • M10
M12 68005912 20 14.5 - 0 1.260 913.5 8432569775181 0.725
  • M12
M14 68005914 10 9.7 - 0 900 873 8432569775198 0.97
  • M14
M16 68005916 10 13.3 - 0 680 904.4 8432569775204 1.33
  • M16
M18 68005918 10 16.5 - 0 550 907.5 8432569775211 1.65
  • M18
M20 68005920 5 10.4 - 0 430 894.4 8432569775228 2.08
  • M20
M22 68005922 5 12.7 - 0 350 889 8432569775235 2.54
  • M22
M24 68005924 5 15 - 0 300 900 8432569775242 3
  • M24
M27 68005927 5 19.25 - 0 240 924 8432569775259 3.85
  • M27
M30 68005930 5 23.75 - 0 180 855 8432569775266 4.75
  • M30
M33 68005933 3 17.7 - 0 150 885 8432569775273 5.9
  • M33
M36 68005936 3 20.7 - 0 132 910.8 8432569775280 6.9
  • M36
