High strenght structural nuts

EN 14399-6 H ZP

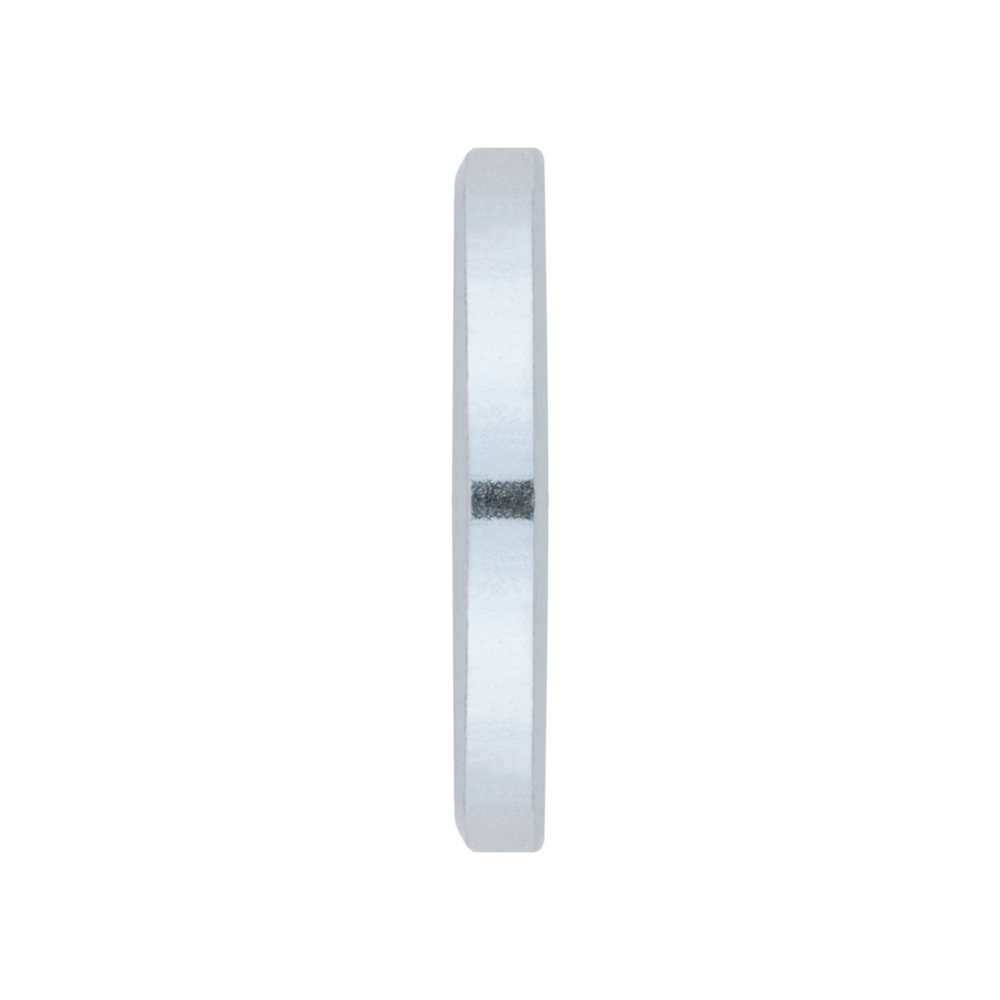

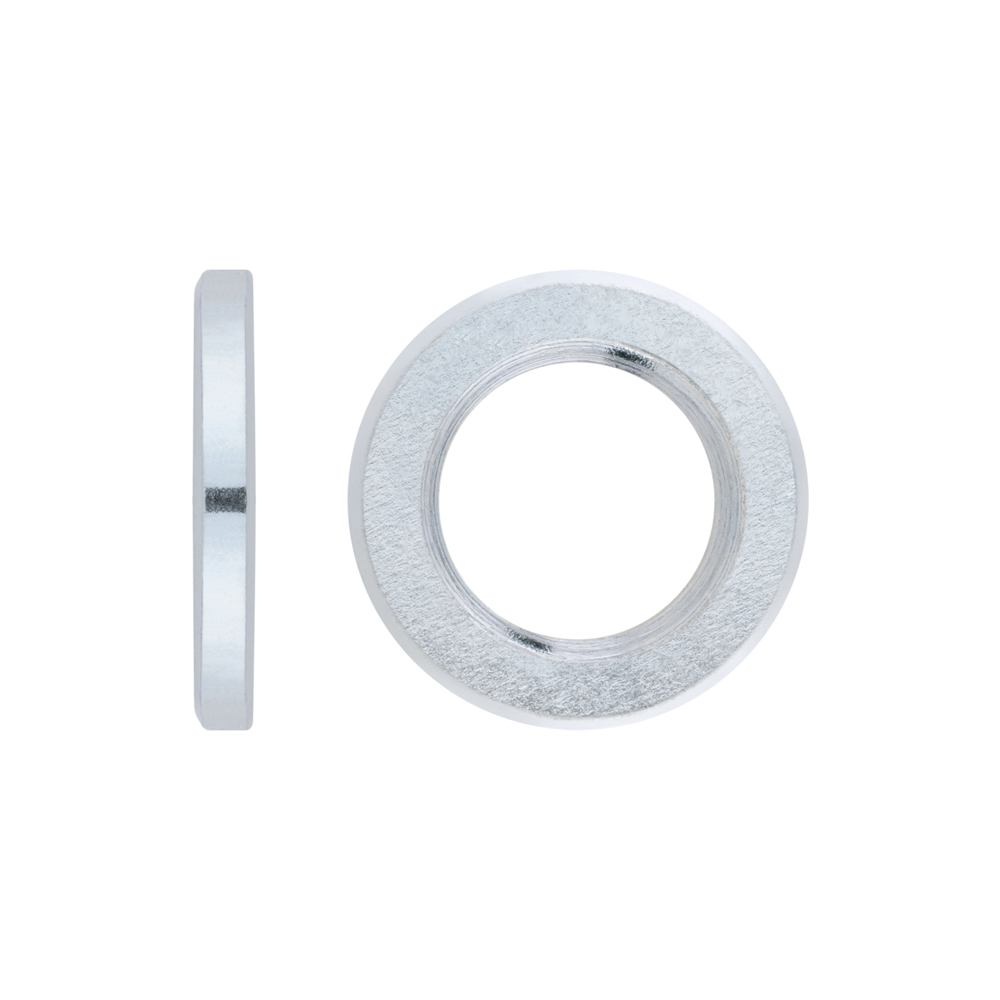

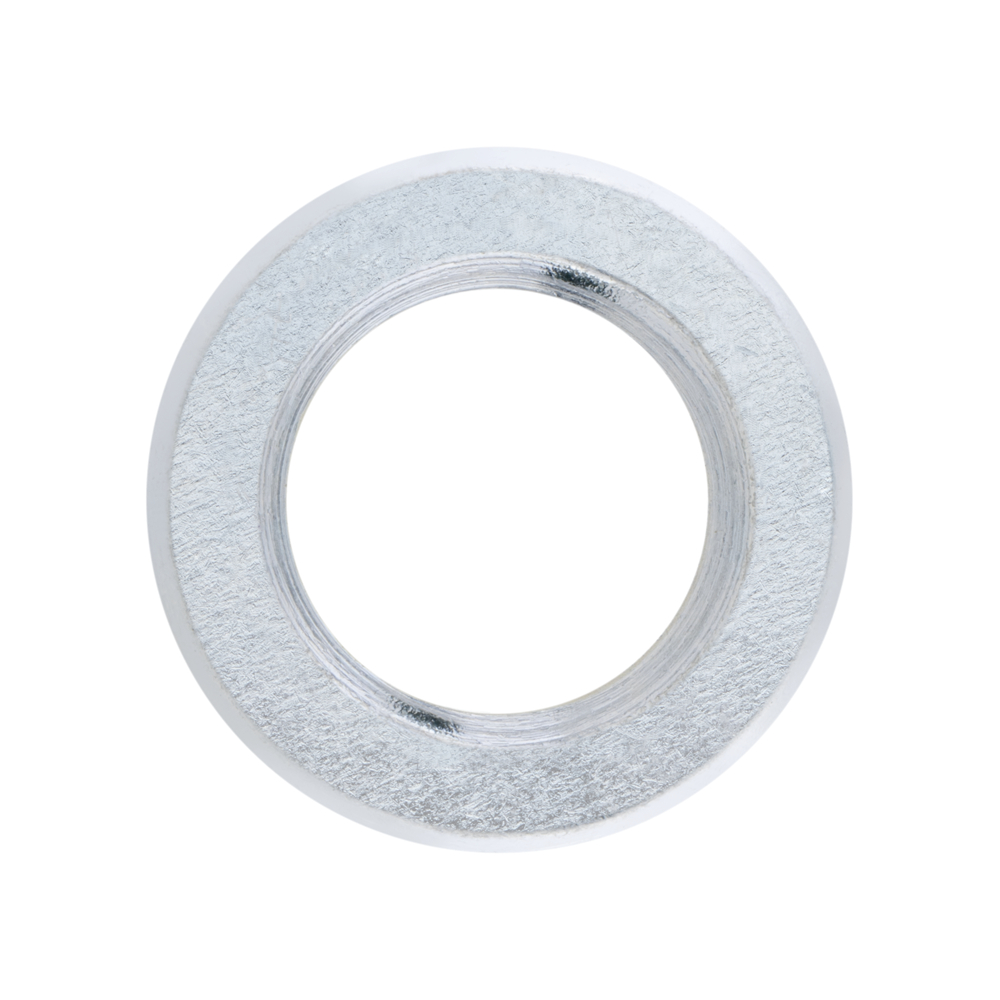

High-strength structural washer with CE-certified in zinc plated finish

Ref.: 1106401
It is a washer manufactured in 10H quality and zinc plated. It is used in high-strength, pre-loaded metal structural joints in the construction industry.


* In the zinc treatment of material in 10.9 or 10, there is a previous dehidrogenation process to minimize the risk of embrittlement. This notice exonerates CHAVESBAO from all liability for damages that may be caused.

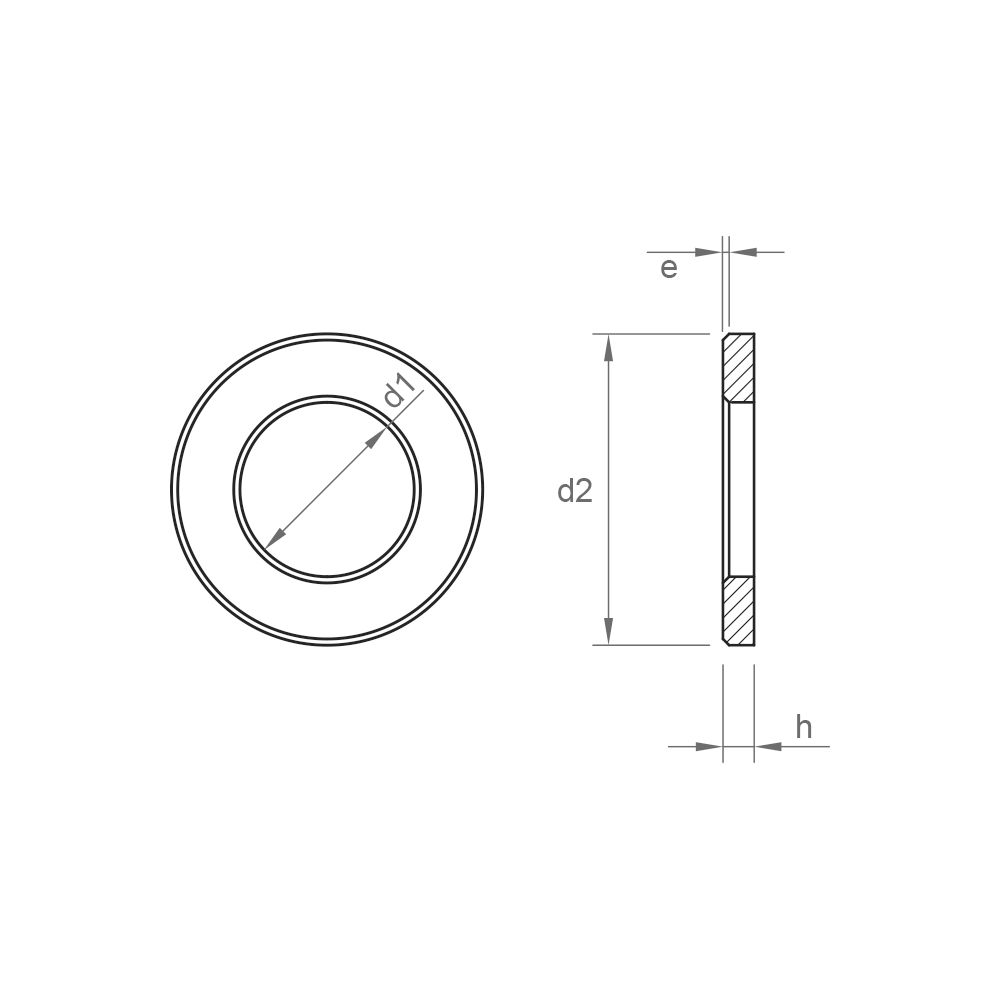

Size Code Pcs. Box KG ESTUCHE PCS. Master KG MÁSTER Uds. Palé KG PALÉ EAN Box Weight (Pc/Kg) Technical Info.
M12 110640112 200 1.406 3.200 22.496 115.200 809.856 8432569844313 0.00703
  • M12
  • d113
  • d224
  • e0,5
  • h3
M16 110640116 100 1.46 1.800 26.28 64.800 946.08 8432569844320 0.0146
  • M16
  • d117
  • d230
  • e0,75
  • h4
M20 110640120 50 0.98 1.200 23.52 43.200 846.72 8432569844337 0.0196
  • M20
  • d121
  • d237
  • e0,75
  • h4
M22 110640122 50 1.215 900 21.87 32.400 787.32 8432569844344 0.0243
  • M22
  • d123
  • d239
  • e0,75
  • h4
M24 110640124 50 1.53 600 18.36 21.600 660.96 8432569844351 0.0306
  • M24
  • d125
  • d244
  • e0,75
  • h4
M27 110640127 50 2.51 400 20.08 14.400 722.88 8432569844368 0.0502
  • M27
  • d128
  • d250
  • e1
  • h5
M30 110640130 50 3.16 400 25.28 14.400 910.08 8432569844375 0.0632
  • M30
  • d131
  • d256
  • e2
  • h5
M36 110640136 50 5.75 200 23 7.200 828 8432569844382 0.115
  • M36
  • d137
  • d266
  • e1,25
  • h6
