Other washers

DIN 137 B

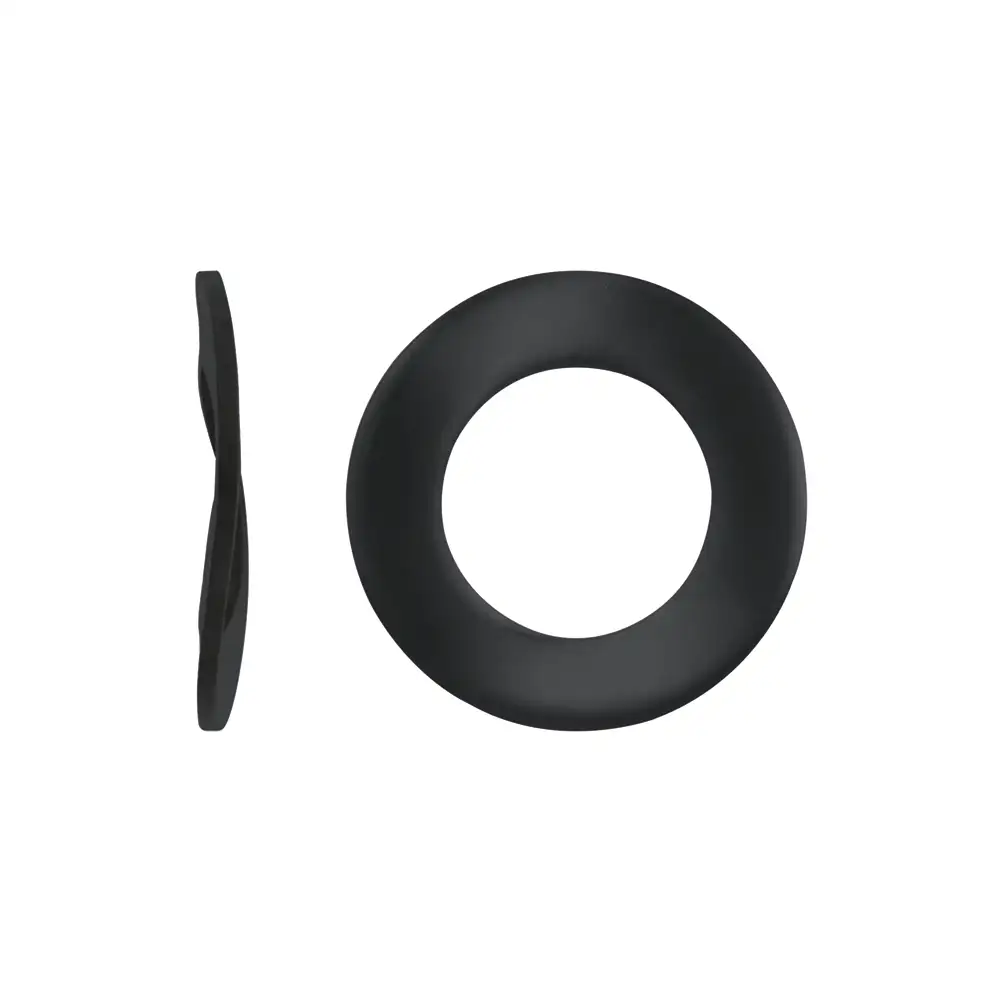

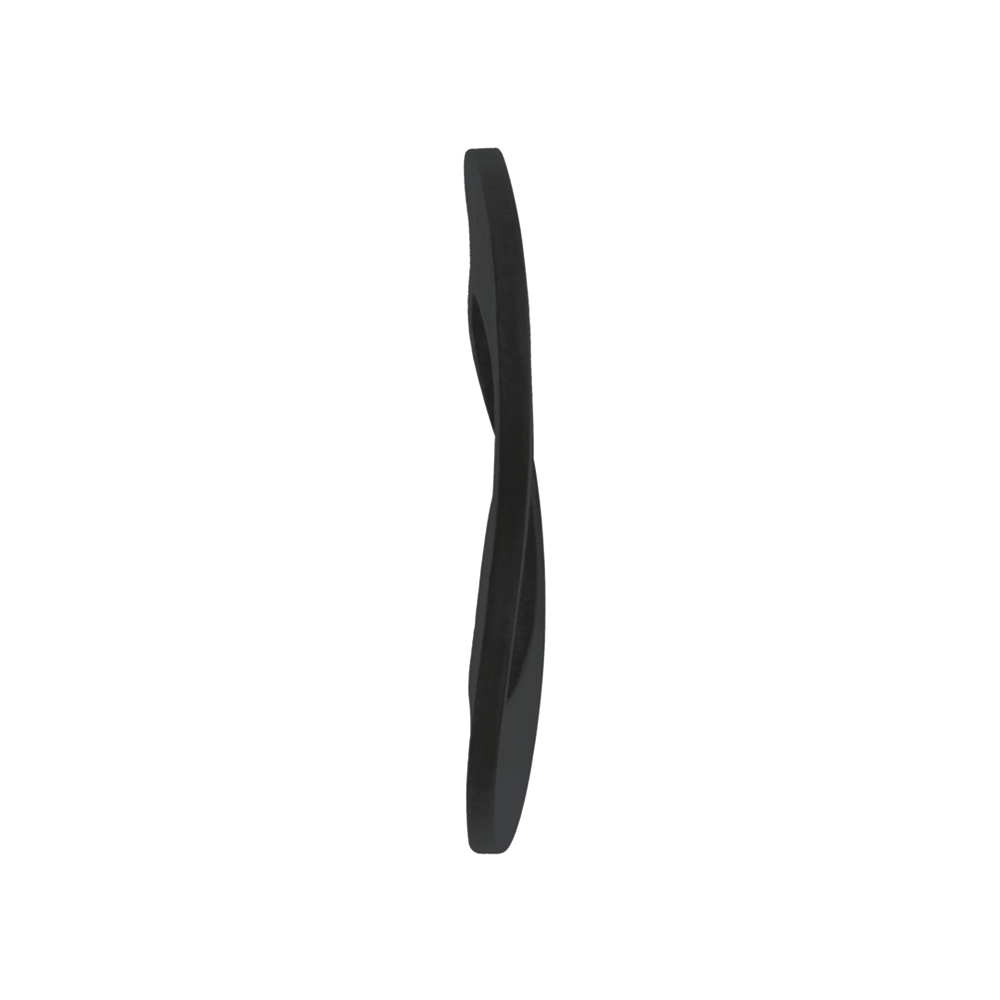

Wave spring washer with "B" form

Ref.: 1101200
It is a warped washer with a black coating. Its design is “B” shaped. It is used to fix the joint of parts where it is necessary to avoid damaging the surface and a greater fixation is required.
Size Code Pcs. Box KG ESTUCHE PCS. Master KG MÁSTER Uds. Palé KG PALÉ EAN Box Weight (Pc/Kg) Technical Info.
M6 110120006 2.000 0.6 60.000 18 2.160.000 648 8432569014617 0.0003
  • M6
  • d16,4
  • d211
  • h2,2
  • s0,5
M8 110120008 1.000 0.7 30.000 21 1.080.000 756 8432569014624 0.0007
  • M8
  • d18,4
  • d215
  • h3,4
  • s0,5
M10 110120010 500 1 15.000 30 540.000 1080 8432569014631 0.002
  • M10
  • d110,5
  • d221
  • h4,2
  • s1
M12 110120012 200 0.62 6.000 18.6 216.000 669.6 8432569014648 0.0031
  • M12
  • d113
  • d224
  • h5
  • s1,2
M14 110120014 200 1.1 3.200 17.6 115.200 633.6 8432569014655 0.0055
  • M14
  • d115
  • d228
  • h6
  • s1,6
M16 110120016 200 1.2 2.000 12 72.000 432 8432569014662 0.006
  • M16
  • d117
  • d230
  • h6,4
  • s1,6
M18 110120018 150 1.17 1.500 11.7 54.000 421.2 8432569014679 0.0078
  • M18
  • d119
  • d234
  • h6,6
  • s1,6
M20 110120020 100 0.84 1.600 13.44 57.600 483.84 8432569014686 0.0084
  • M20
  • d121
  • d236
  • h7,4
  • s1,6
