DIN 125 A A2

ISO 7089

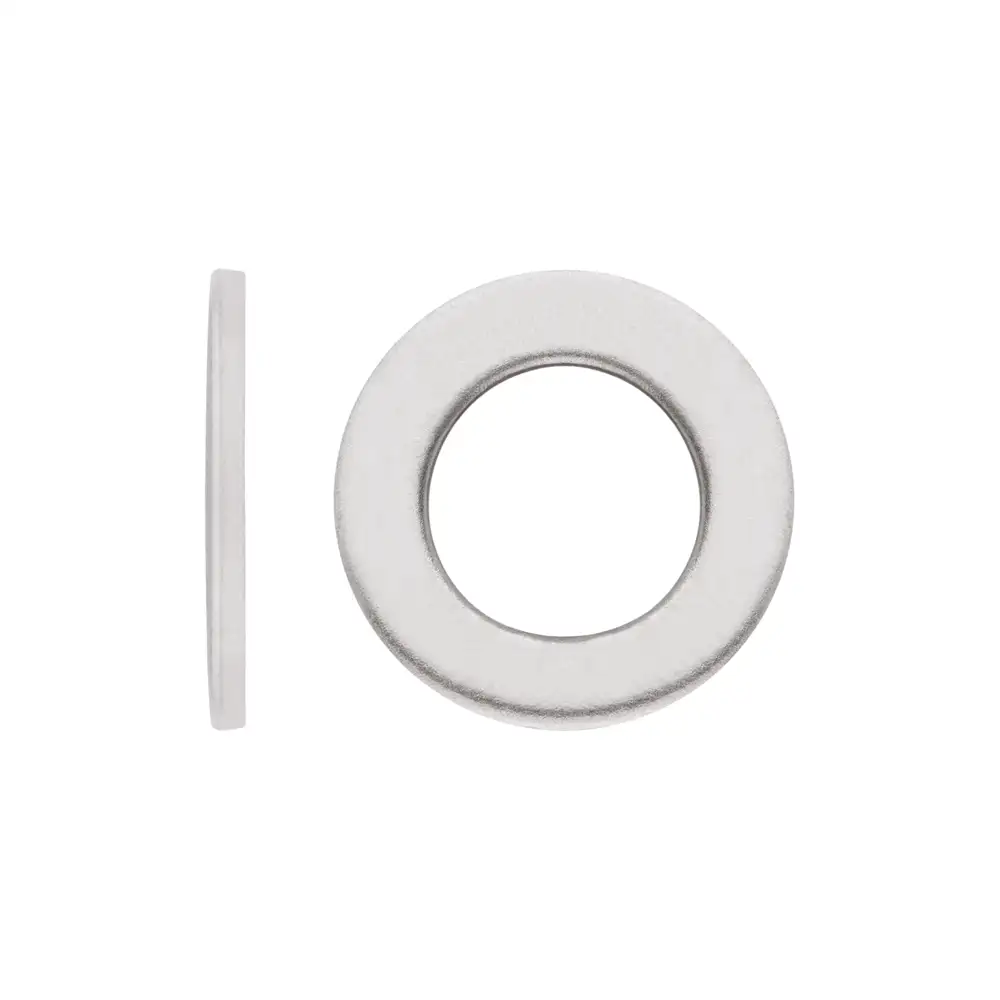

Flat washer in stainless steel A2

Ref.: 1120200

It is an ISO 7089-equivalent flat washer (up to M36) made of A2 stainless steel for corrosion resistance and durability. Its flat circular design provides stability and prevents damage to mating surfaces.

Size	Code	Pcs. Box	KG ESTUCHE	PCS. Master	KG MÁSTER	Uds. Palé	KG PALÉ	EAN Box	Weight (Pc/Kg)
M3	112020003	1.000	0.1	40.000	4	1.440.000	144	8432569023572	0.0001
	M3 d13,2 d27 s0,5
M4	112020004	1.000	0.3	40.000	12	1.440.000	432	8432569023589	0.0003
	M4 d14,3 d29 s0,8
M5	112020005	500	0.2	20.000	8	720.000	288	8432569023596	0.0004
	M5 d15,3 d210 s1
M6	112020006	500	0.45	20.000	18	720.000	648	8432569023602	0.0009
	M6 d16,4 d212 s1,6
M8	112020008	500	0.81	12.000	19.44	432.000	699.84	8432569023619	0.00162
	M8 d18,4 d216 s1,6
M10	112020010	200	0.684	6.000	20.52	216.000	738.72	8432569023626	0.00342
	M10 d110,5 d220 s2
M12	112020012	200	1.22	3.200	19.52	115.200	702.72	8432569023633	0.0061
	M12 d113 d224 s2,5
M14	112020014	200	1.724	2.400	20.688	86.400	744.768	8432569023640	0.00862
	M14 d115 d228 s2,5
M16	112020016	100	1.13	1.800	20.34	64.800	732.24	8432569023657	0.0113
	M16 d117 d230 s3
M18	112020018	100	1.47	1.200	17.64	43.200	635.04	8432569023664	0.0147
	M18 d119 d234 s3
M20	112020020	50	0.86	1.200	20.64	43.200	743.04	8432569023671	0.0172
	M20 d121 d237 s3
M22	112020022	50	0.915	900	16.47	32.400	592.92	8432569023688	0.0183
	M22 d123 d239 s3
M24	112020024	50	1.615	600	19.38	21.600	697.68	8432569023695	0.0323
	M24 d125 d244 s4
M27	112020027	50	2.115	400	16.92	14.400	609.12	8432569023718	0.0423
	M27 d128 d250 s4
M30	112020030	50	2.68	400	21.44	14.400	771.84	8432569023725	0.0536
	M30 d131 d256 s4
M33	112020033	50	3.77	300	22.62	10.800	814.32	8432569023732	0.0754
	M33 d134 d260 s5
M36	112020036	50	4.6	200	18.4	7.200	662.4	8432569023749	0.092
	M36 d137 d266 s5
M39	112020039	25	3.325	100	13.3	3.600	478.8	8432569023756	0.133
	M39 d140/42 d272 s6
M42	112020042	25	4.575	100	18.3	3.600	658.8	8432569023763	0.183
	M42 d143/45 d278 s7
M45	112020045	-	0	90	19.8	3.240	712.8	8432569698688	0.22
	M45 d146/48 d285 s7

DIN 125 A A4

ISO 7089

Flat washer in stainless steel A4
