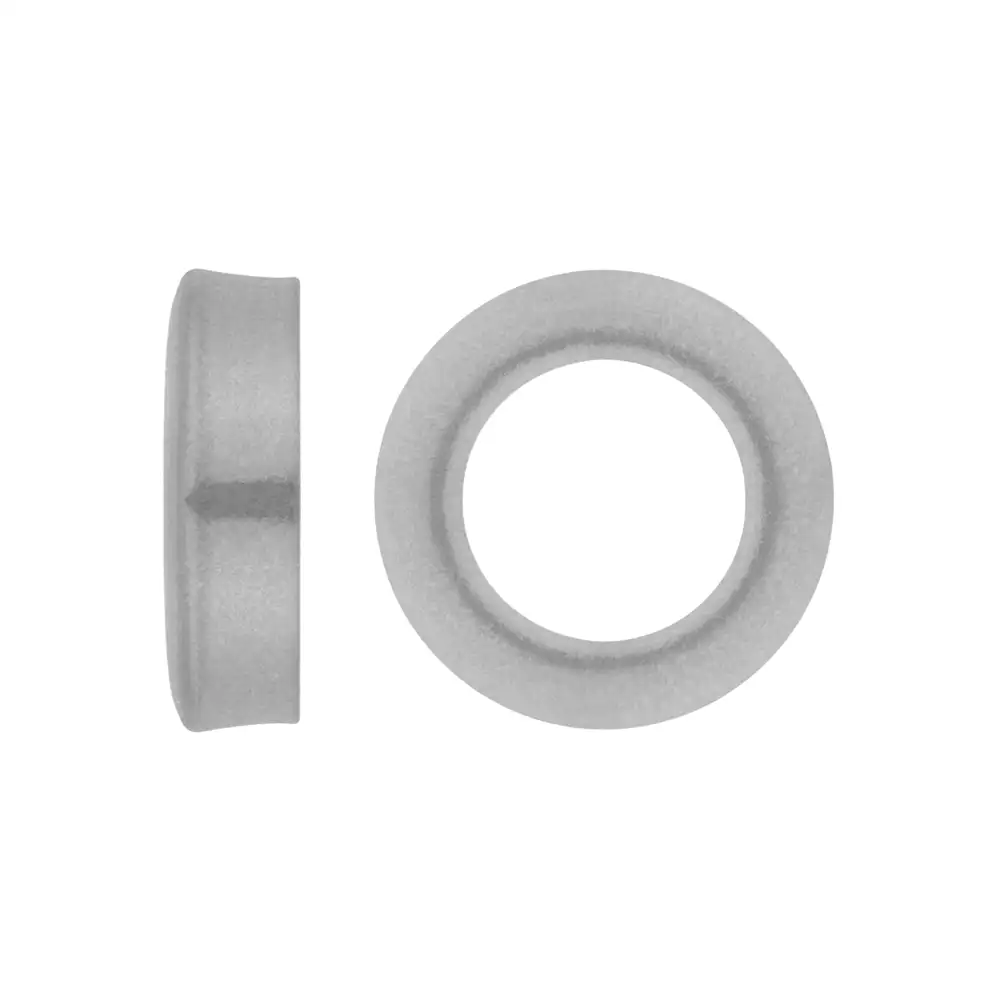

Plain washers

DIN 7989 HDG

Plain washer for steel structures in hot-dip galvanised finish

Ref.: 1107513
It is a hot-dip galvanised flat washer (HDG) made of HV 100 quality. It is used especially in the construction of metal structures.
Size Code Pcs. Box KG ESTUCHE PCS. Master KG MÁSTER Uds. Palé KG PALÉ EAN Box Weight (Pc/Kg) Technical Info.
M12 - A14 1107513M-12/A-14,0 100 1.88 800 15.04 28.800 541.44 8432569458442 0.0188
  • M12
  • d114
  • d224
  • h8
M16 - A18 1107513M-16/A-18,0 50 1.415 600 16.98 21.600 611.28 8432569458466 0.0283
  • M16
  • d118
  • d230
  • h8
M22 - A24 1107513M-22/A-24,0 50 2.31 400 18.48 14.400 665.28 8432569458480 0.0462
  • M22
  • d124
  • d239
  • h8
M24 - A26 1107513M-24/A-26,0 25 1.5375 200 12.3 7.200 442.8 8432569458497 0.0615
  • M24
  • d126
  • d244
  • h8
