EXPERTS IN FASTENERS AND WELDING SOLUTIONS when everything fits
Spring lock washers

DIN 127 B

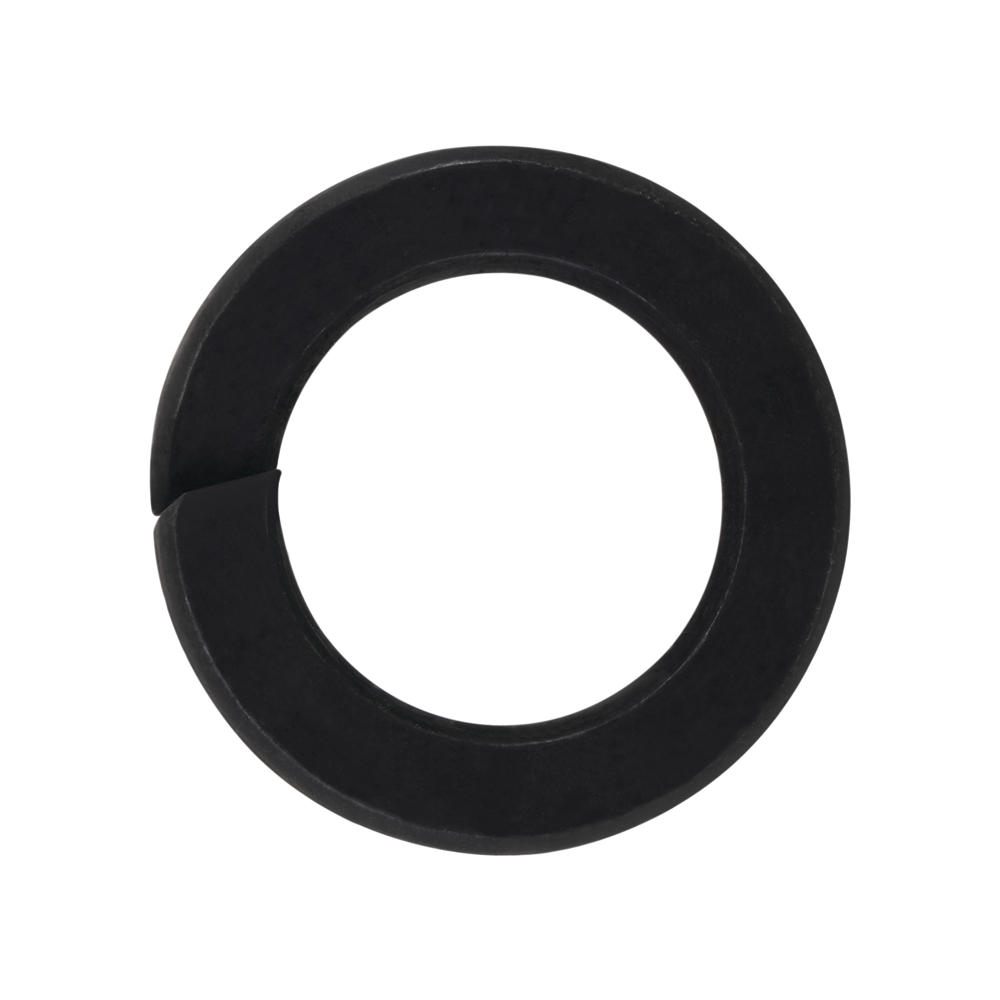

Spring washer

Ref.: 1100400
It is a grower washer made of HRC>44 quality and black coated. Its design is open and spiral. It is used to avoid joint pressure by making a spring effect, in industrial machinery, construction and other assemblies.
Size Code Pcs. Box KG ESTUCHE PCS. Master KG MÁSTER Uds. Palé KG PALÉ EAN Box Weight (Pc/Kg) Technical Info.
M3 110040003 10.000 1 150.000 15 5.400.000 540 8432569012415 0.0001
  • M3
  • d13,1
  • d26,2
  • h1,6
  • s0,8
M4 110040004 5.000 0.05 75.000 0.75 2.700.000 27 8432569012422 0.00001
  • M4
  • d14,1
  • d27,6
  • h1,8
  • s0,9
M5 110040005 3.000 0.9 45.000 13.5 1.620.000 486 8432569012439 0.0003
  • M5
  • d15,1
  • d29,2
  • h2,4
  • s1,2
M6 110040006 2.000 1.6 20.000 16 720.000 576 8432569012446 0.0008
  • M6
  • d16,1
  • d211,8
  • h3,2
  • s1,6
M8 110040008 1.000 1.6 10.000 16 360.000 576 8432569012460 0.0016
  • M8
  • d18,1
  • d214,8
  • h4
  • s2
M10 110040010 600 1.5 6.000 15 216.000 540 8432569012477 0.0025
  • M10
  • d110,2
  • d218,1
  • h4,4
  • s2,2
M11 110040011 - 0 - 0 - 0 8432569012484 0.0031
  • M11
  • d111,2
  • d218,1
  • h4,4
  • s2,2
M12 110040012 400 1.4 4.000 14 144.000 504 8432569012491 0.0035
  • M12
  • d112,2
  • d221,1
  • h5
  • s2,5
M13 110040013 400 1.96 4.000 19.6 144.000 705.6 8432569012507 0.0049
  • M13
  • d113,2
  • d221,3
  • h5
  • s2,5
M14 110040014 300 1.8 3.000 18 108.000 648 8432569012514 0.006
  • M14
  • d114,2
  • d224,1
  • h6
  • s3
M16 110040016 200 1.78 2.000 17.8 72.000 640.8 8432569012521 0.0089
  • M16
  • d116,2
  • d227,4
  • h7
  • s3,5
M18 110040018 150 1.455 1.500 14.55 54.000 523.8 8432569012538 0.0097
  • M18
  • d118,2
  • d229,4
  • h7
  • s3,5
M20 110040020 100 1.52 1.000 15.2 36.000 547.2 8432569012545 0.0152
  • M20
  • d120,2
  • d233,6
  • h8
  • s4
M22 110040022 100 1.65 1.000 16.5 36.000 594 8432569012552 0.0165
  • M22
  • d122,5
  • d235,9
  • h8
  • s4
M24 110040024 70 1.834 700 18.34 25.200 660.24 8432569012569 0.0262
  • M24
  • d124,5
  • d240
  • h10
  • s5
M27 110040027 50 1.435 500 14.35 18.000 516.6 8432569012583 0.0287
  • M27
  • d127,5
  • d243
  • h10
  • s5
M30 110040030 30 1.329 300 13.29 10.800 478.44 8432569012606 0.0443
  • M30
  • d130,5
  • d248,2
  • h12
  • s6
M33 110040033 30 1.89 300 18.9 10.800 680.4 8432569012620 0.063
  • M33
  • d133,5
  • d253,2
  • h12
  • s6
M36 110040036 30 2.019 300 20.19 10.800 726.84 8432569012637 0.0673
  • M36
  • d136,5
  • d258,2
  • h12
  • s6
M39 110040039 25 1.7925 250 17.925 9.000 645.3 8432569012644 0.0717
  • M39
  • d139,5
  • d261,2
  • h12
  • s6
M42 110040042 25 2.775 200 22.2 7.200 799.2 8432569012651 0.111
  • M42
  • d142,5
  • d268,2
  • h14
  • s7
M45 110040045 10 1.17 100 11.7 3.600 421.2 8432569012668 0.117
  • M45
  • d145,5
  • d271,2
  • h14
  • s7
M48 110040048 10 1.23 100 12.3 3.600 442.8 8432569012675 0.123
  • M48
  • d149
  • d275
  • h14
  • s7
