Turnbuckles

DIN 1480 SE

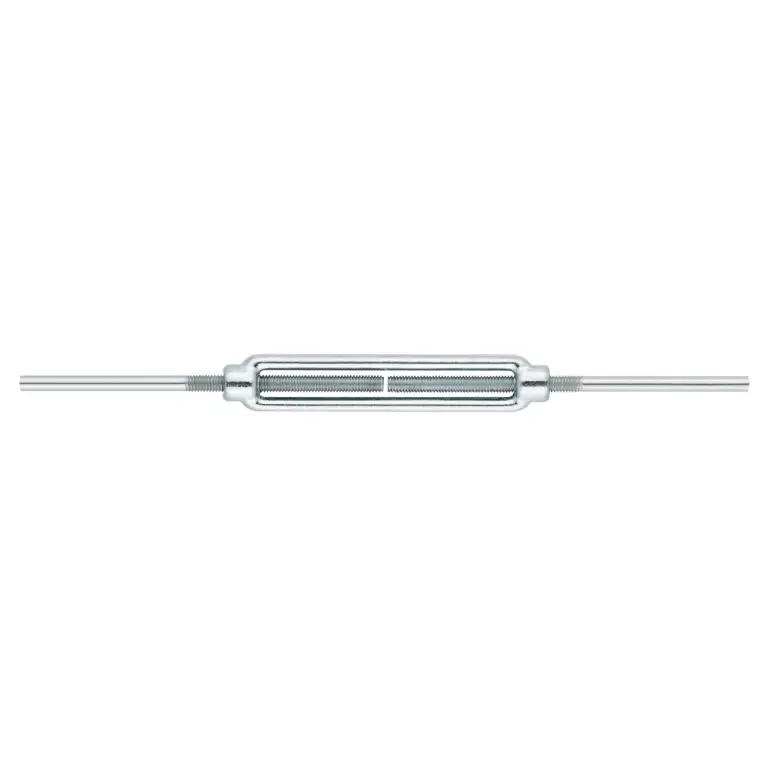

Welding rod turnbuckle in zinc-plated finish

Ref.: 6993217
This product is NOT covered by the 2006/42/EC directive. In any case it is not a valid item of personal protective equipment.
Size Code Pcs. Box KG ESTUCHE PCS. Master KG MÁSTER Uds. Palé KG PALÉ EAN Box Weight (Pc/Kg) Technical Info.
M6 699321706 50 4.9 200 19.6 7.200 705.6 8445222098206 0.098
  • M6
  • A12
  • B110
  • C120
  • E60
M8 699321708 25 3.825 100 15.3 3.600 550.8 8445222098213 0.153
  • M8
  • A15
  • B110
  • C120
  • E65
M10 699321710 25 7.175 50 14.35 1.800 516.6 8445222098220 0.287
  • M10
  • A18
  • B125
  • C150
  • E75
M12 699321712 25 9.75 50 19.5 1.800 702 8445222098237 0.39
  • M12
  • A21
  • B125
  • C150
  • E75
M14 699321714 5 3.165 20 12.66 720 455.76 8445222098244 0.633
  • M14
  • A24
  • B140
  • C165
  • E90
M16 699321716 5 4.575 20 18.3 720 658.8 8445222098251 0.915
  • M16
  • A27
  • B170
  • C200
  • E100
M20 699321720 2 3.24 10 16.2 360 583.2 8445222098268 1.62
  • M20
  • A34
  • B200
  • C220
  • E120
M22 699321722 2 4.168 8 16.672 288 600.192 8445222098275 2.084
  • M22
  • A36
  • B220
  • C220
  • E120
M24 699321724 1 2.962 5 14.81 180 533.16 8445222098282 2.962
  • M24
  • A39
  • B255
  • C260
  • E150
M30 699321730 1 4.1111 5 20.5555 180 739.998 8445222098299 4.1111
  • M30
  • A45
  • B255
  • C260
  • E160
