Anillos

DIN 472 AISI 420

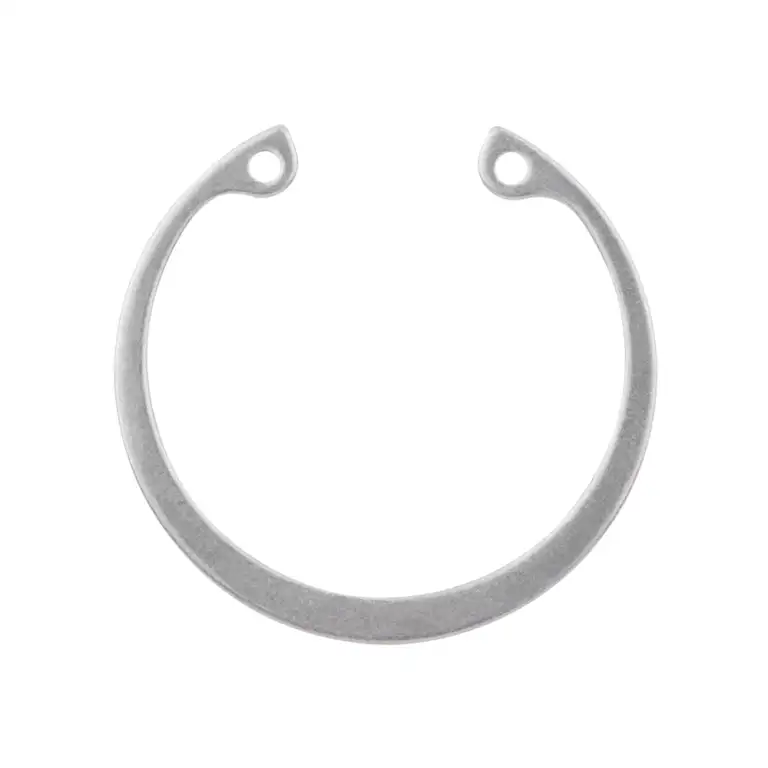

Anillo elástico para agujero en acero inoxidable AISI 420

Ref.: 6927600
Es un anillo elástico en acero inoxidable AISI 420. Se utiliza como elemento de seguridad interior en orificios de montaje axial.
Medida Código Uds. Estuche KG ESTUCHE Uds. Máster KG MÁSTER Uds. Palé kg_pallet EAN Estuche Peso (Ud/Kg) Info. Técnica
I-8 6927600I-008 200 0 75.000 0 - 8432569761849 0.0001
  • M8
  • M('')8
  • a2,4
  • b1,1
  • d38,7
  • S0,8
  • Ø8
I-9 6927600I-009 200 0 50.000 0 - 8432569761856 0.0001
  • M9
  • M('')9
  • a2,5
  • b1,3
  • d39,8
  • S0,8
  • Ø9
I-10 6927600I-010 200 0 40.000 0 - 8432569761863 0.0002
  • M10
  • M('')10
  • a3,2
  • b1,4
  • d310,8
  • S1
  • Ø10
I-11 6927600I-011 100 0 25.000 0 - 8432569761870 0.0003
  • M11
  • M('')11
  • a3,3
  • b1,5
  • d311,8
  • S1
  • Ø11
I-12 6927600I-012 100 0 25.000 0 - 8432569761887 0.0004
  • M12
  • M('')12
  • a3,4
  • b1,7
  • d313
  • S1
  • Ø12
I-13 6927600I-013 100 0 20.000 0 - 8432569761894 0.0004
  • M13
  • M('')13
  • a3,6
  • b1,8
  • d314,1
  • S1
  • Ø13
I-14 6927600I-014 100 0 20.000 0 - 8432569761900 0.0005
  • M14
  • M('')14
  • a3,7
  • b1,9
  • d315,1
  • S1
  • Ø14
I-15 6927600I-015 100 0 20.000 0 - 8432569761917 0.0005
  • M15
  • M('')15
  • a3,7
  • b2
  • d316,2
  • S1
  • Ø15
I-16 6927600I-016 100 0 17.500 0 - 8432569761924 0.0006
  • M16
  • M('')16
  • a3,8
  • b2
  • d317,3
  • S1
  • Ø16
I-17 6927600I-017 100 0 15.000 0 - 8432569761931 0.0006
  • M17
  • M('')17
  • a3,9
  • b2,1
  • d318,3
  • S1
  • Ø17
I-18 6927600I-018 100 0 15.000 0 - 8432569761948 0.0007
  • M18
  • M('')18
  • a4,1
  • b2,2
  • d319,5
  • S1
  • Ø18
I-19 6927600I-019 100 0 10.000 0 - 8432569761955 0.0008
  • M19
  • M('')19
  • a4,1
  • b2,2
  • d320,5
  • S1
  • Ø19
I-20 6927600I-020 100 0 10.000 0 - 8432569761962 0.0009
  • M20
  • M('')20
  • a4,2
  • b2,3
  • d321,5
  • S1
  • Ø20
I-21 6927600I-021 100 0 10.000 0 - 8432569761979 0.001
  • M21
  • M('')21
  • a4,2
  • b2,4
  • d322,5
  • S1
  • Ø21
I-22 6927600I-022 50 0 8.000 0 - 8432569761986 0.0011
  • M22
  • M('')22
  • a4,2
  • b2,5
  • d323,5
  • S1
  • Ø22
I-23 6927600I-023 50 0 7.000 0 - 8432569761993 0.0013
  • M23
  • M('')23
  • a4,2
  • b2,5
  • d324,6
  • S1,2
  • Ø23
I-24 6927600I-024 50 0 7.000 0 - 8432569762006 0.0014
  • M24
  • M('')24
  • a4,4
  • b2,6
  • d325,9
  • S1,2
  • Ø24
I-25 6927600I-025 50 0 7.000 0 - 8432569762013 0.0015
  • M25
  • M('')25
  • a4,5
  • b2,7
  • d326,9
  • S1,2
  • Ø25
I-26 6927600I-026 50 0 5.000 0 - 8432569762020 0.0016
  • M26
  • M('')26
  • a4,7
  • b2,8
  • d327,9
  • S1,2
  • Ø26
I-27 6927600I-027 50 0 5.000 0 - 8432569762037 0.0017
  • M27
  • M('')27
  • a4,7
  • b2,9
  • d329,1
  • S1,2
  • Ø27
I-28 6927600I-028 50 0 4.000 0 - 8432569762044 0.0018
  • M28
  • M('')28
  • a4,8
  • b2,9
  • d330,1
  • S1,2
  • Ø28
I-29 6927600I-029 50 0 3.500 0 - 8432569762051 0.0019
  • M29
  • M('')29
  • a4,8
  • b3
  • d331,1
  • S1,2
  • Ø29
I-30 6927600I-030 50 0 3.500 0 - 8432569762068 0.002
  • M30
  • M('')30
  • a4,8
  • b3
  • d332,1
  • S1,2
  • Ø30
I-31 6927600I-031 25 0 3.500 0 - 8432569762075 0.0021
  • M31
  • M('')31
  • a5,2
  • b3,2
  • d333,4
  • S1,2
  • Ø31
I-32 6927600I-032 25 0 3.000 0 - 8432569762082 0.0022
  • M32
  • M('')32
  • a5,4
  • b3,2
  • d334,4
  • S1,2
  • Ø32
I-34 6927600I-034 25 0 3.000 0 - 8432569762105 0.0032
  • M34
  • M('')34
  • a5,4
  • b3,3
  • d336,5
  • S1,5
  • Ø34
I-35 6927600I-035 25 0 3.000 0 - 8432569762112 0.0035
  • M35
  • M('')35
  • a5,4
  • b3,4
  • d337,8
  • S1,5
  • Ø35
I-36 6927600I-036 25 0 3.000 0 - 8432569762129 0.0037
  • M36
  • M('')36
  • a5,4
  • b3,5
  • d338,8
  • S1,5
  • Ø36
I-37 6927600I-037 25 0 3.000 0 - 8432569762136 0.0037
  • M37
  • M('')37
  • a5,5
  • b3,6
  • d339,8
  • S1,5
  • Ø37
I-38 6927600I-038 25 0 2.500 0 - 8432569762143 0.0039
  • M38
  • M('')38
  • a5,5
  • b3,7
  • d340,8
  • S1,5
  • Ø38
I-39 6927600I-039 25 0 2.000 0 - 8432569762150 0.004
  • M39
  • M('')39
  • a5,6
  • b3,8
  • d342
  • S1,5
  • Ø39
I-40 6927600I-040 25 0 2.000 0 - 8432569762167 0.0047
  • M40
  • M('')40
  • a5,8
  • b3,9
  • d343,5
  • S1,75
  • Ø40
I-41 6927600I-041 25 0 2.000 0 - 8432569762174 0.0051
  • M41
  • M('')41
  • a5,9
  • b4
  • d344,5
  • n3,8
  • S1,75
  • Ø41
I-42 6927600I-042 25 0 2.000 0 - 8432569762181 0.0054
  • M42
  • M('')42
  • a5,9
  • b4,1
  • d345,5
  • S1,75
  • Ø42
I-45 6927600I-045 25 0 2.000 0 - 8432569762204 0.006
  • M45
  • M('')45
  • a6,2
  • b4,3
  • d348,5
  • S1,75
  • Ø45
I-47 6927600I-047 25 0 1.500 0 - 8432569762228 0.0061
  • M47
  • M('')47
  • a6,4
  • b4,4
  • d350,5
  • S1,75
  • Ø47
I-48 6927600I-048 25 0 1.500 0 - 8432569762235 0.0067
  • M48
  • M('')48
  • a6,4
  • b4,5
  • d351,5
  • S1,75
  • Ø48
I-50 6927600I-050 25 0 1.200 0 - 8432569762259 0.0073
  • M50
  • M('')50
  • a6,5
  • b4,6
  • d354,2
  • S2
  • Ø50
I-52 6927600I-052 25 0 1.200 0 - 8432569762266 0.0082
  • M52
  • M('')52
  • a6,7
  • b4,7
  • d356,2
  • S2
  • Ø52
I-55 6927600I-055 25 0 1.200 0 - 8432569762297 0.0083
  • M55
  • M('')55
  • a6,8
  • b5
  • d359,2
  • S2
  • Ø55
I-58 6927600I-058 25 0 700 0 - 8432569762327 0.0105
  • M58
  • M('')58
  • a6,9
  • b5,2
  • d362,2
  • S2
  • Ø58
I-60 6927600I-060 25 0 600 0 - 8432569762334 0.0111
  • M60
  • M('')60
  • a7,3
  • b5,4
  • d364,2
  • S2
  • Ø60
I-62 6927600I-062 25 0 600 0 - 8432569762341 0.0112
  • M62
  • M('')62
  • a7,3
  • b5,5
  • d366,2
  • S2
  • Ø62
I-65 6927600I-065 25 0 500 0 - 8432569762365 0.0143
  • M65
  • M('')65
  • a7,6
  • b5,8
  • d369,2
  • S2,5
  • Ø65
I-68 6927600I-068 25 0 500 0 - 8432569762389 0.016
  • M68
  • M('')68
  • a7,8
  • b6,1
  • d372,5
  • S2,5
  • Ø68
I-70 6927600I-070 25 0 500 0 - 8432569762396 0.0165
  • M70
  • M('')70
  • a7,8
  • b6,2
  • d374,5
  • S2,5
  • Ø70
I-72 6927600I-072 25 0 500 0 - 8432569762402 0.0181
  • M72
  • M('')72
  • a7,8
  • b6,4
  • d376,5
  • S2,5
  • Ø72
I-75 6927600I-075 25 0 400 0 - 8432569762426 0.0188
  • M75
  • M('')75
  • a7,8
  • b6,6
  • d379,5
  • S2,5
  • Ø75
I-80 6927600I-080 25 0 400 0 - 8432569762457 0.022
  • M80
  • M('')80
  • a8,5
  • b7
  • d385,5
  • S2,5
  • Ø80
I-85 6927600I-085 10 0 300 0 - 8432569762471 0.0253
  • M85
  • M('')85
  • a8,6
  • b7,2
  • d390,5
  • S3
  • Ø85
I-90 6927600I-090 10 0 250 0 - 8432569762495 0.033
  • M90
  • M('')90
  • a8,6
  • b7,6
  • d395,5
  • S3
  • Ø90
I-95 6927600I-095 10 0 250 0 - 8432569762518 0.037
  • M95
  • M('')95
  • a8,8
  • b8,1
  • d3100,5
  • S3
  • Ø95
I-100 6927600I-100 10 0 250 0 - 8432569762532 0.042
  • M100
  • M('')100
  • a9,2
  • b8,4
  • d3105,5
  • S3
  • Ø100
I-110 6927600I-110 10 0 160 0 - 8432569762556 0.0645
  • M110
  • M('')110
  • a10,4
  • b9
  • d3117
  • S4
  • Ø110
I-120 6927600I-120 10 0 150 0 - 8432569762570 0.077
  • M120
  • M('')120
  • a11
  • b9,7
  • d3127
  • S4
  • Ø120
